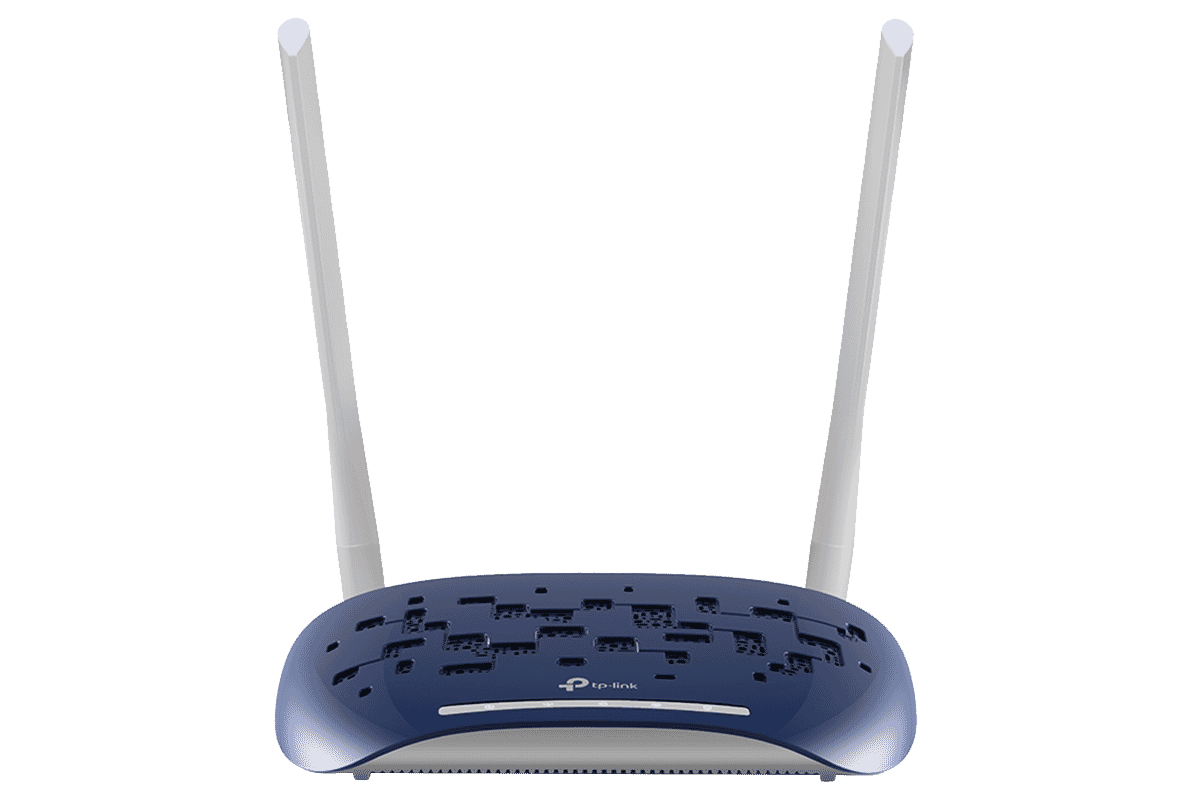

TP-Link TD-W9960 300Mbps Wireless VDSL2/ADSL2+ Modem Router, 4-Port, 10/100
TP-Link
- Dual Antennas
- 300Mbps Wi-Fi
- Effortless Management
The TP-Link TD-W9960 is a four port wireless VDSL2/ADSL2+ modem router with VDSL2 technology that delivers VDSL broadband speeds of up to 100Mbps. (Read more)
PRODUCT DETAILS
The TP-Link TD-W9960 is a wireless VDSL2/ADSL2+ modem router with VDSL2 technology that delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections for compatibility with most ISPs, with 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.
Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.
Powerful Antennas
Two external 5dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.
6kV Lightning Protection
Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Secure Surfing
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.
Features:

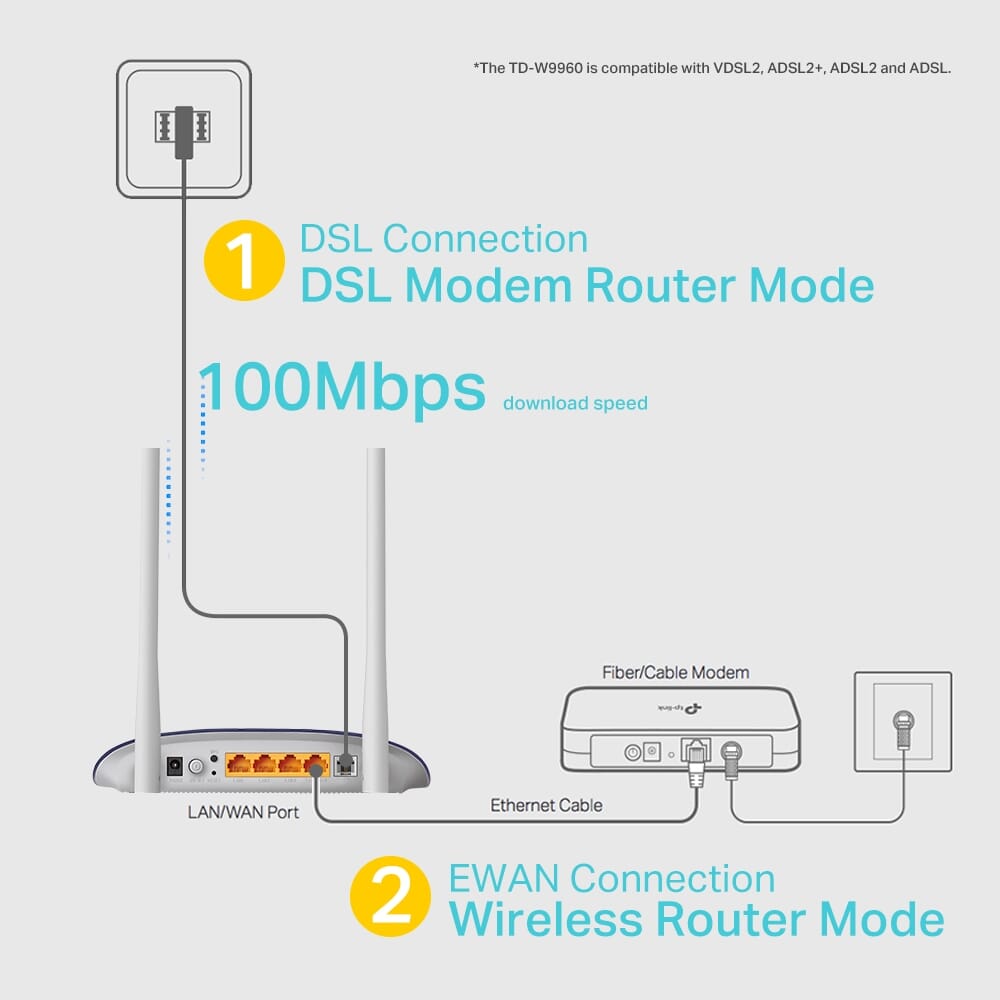

- Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
- Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
- Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
- Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
| Hardware | |
| Interface |
3 10/100Mbps RJ45 LAN Ports 1 10/100Mbps RJ45 LAN/WAN Port 1 RJ11 Port |
| Button |
WPS Button RESET Button Power ON/OFF Button |
| External Power Supply |
9VDC/0.6A |
| IEEE Standards |
IEEE 802.3, 802.3u |
| VDSL2 Standards |
ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| Dimensions ( W x D x H ) |
181.6 x 129.7 x 36.2mm |
| Antenna |
Omni directional, Fixed |
| Antenna Gain |
2 x 5dBi |
| Wireless Features | |
| Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
| Frequency |
2.400-2.4835GHz |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| Transmission Power |
<20dBm(EIRP) |
| Software Features | |
| Quality of Service |
WMM, Bandwidth Control (IP QoS) |
| Advanced Features |
Parental Controls, Network Address Translation(NAT), Port
Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP
V1/V2/V3 |
| Security |
NAT Firewall, SPI Firewall, DoS Protection, IP & MAC
Binding, Service Filtering, Access Control, Parental
Controls |
| Operating Modes |
VDSL/ADSL Modem Router, Wireless Router, |
| Management Features |
Web Based Configuration (HTTP), Remote management,
CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic
Tools |
| VPN Pass-Through |
IPSec VPN |
| Protocols |
Supports IPv4 and IPv6 |
| ATM/PPP Protocols |
PPPoE (RFC2516) PPPoA (RFC 2364) MER\IPoE (RFC 1483 Routed) IPoA (RFC1577/2225) Bridge (RFC1483 Bridge) |
| APP |
Tether App |
| NAT |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Others | |
| Certification |
CE, RoHS |
| Package Content |
TD-W9960 External DSL Splitter RJ-11 DSL Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8,
8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Videos |
|---|
| No videos available |
| Files |
|---|
| TP-Link TD-W9960 Installation Guide |
| Links* |
|---|
| TP-Link website |
| TP-Link support site |
