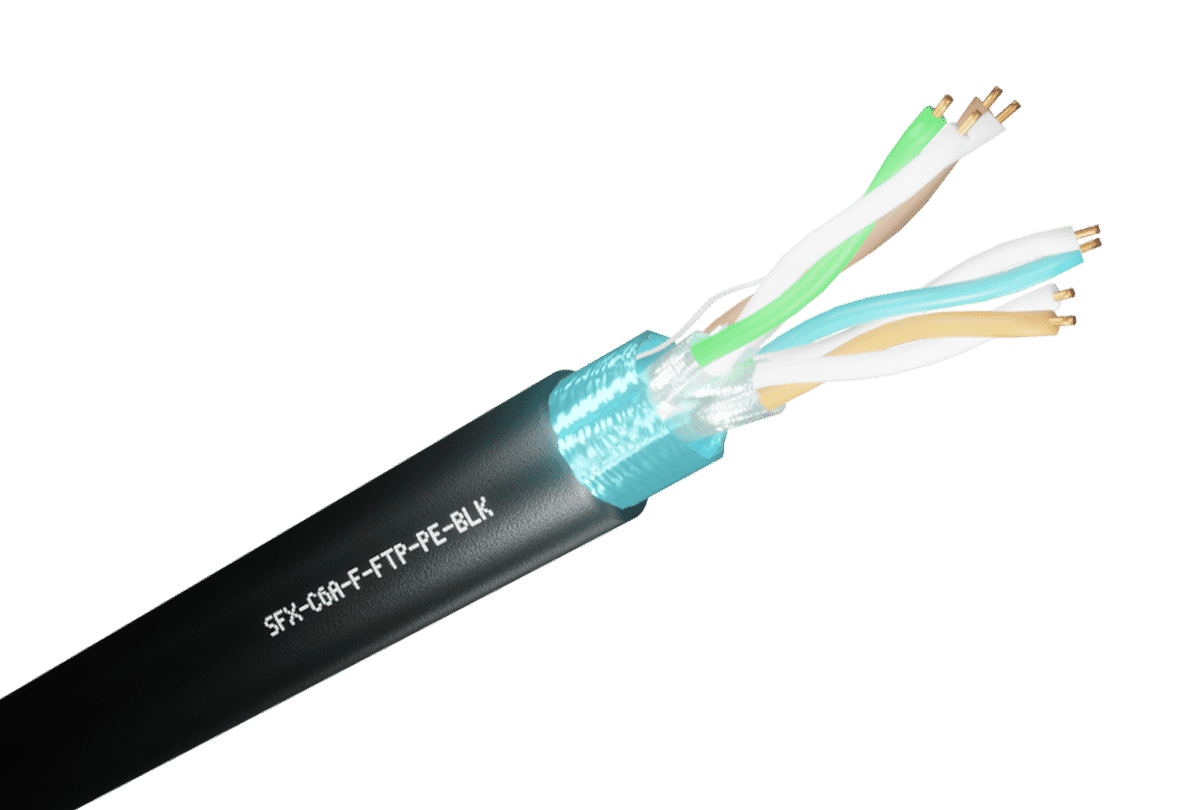

Cat 6A F/FTP PE Shielded External Data Cable Black 305m Reel
SFX Cables
- Up to 10 Gigabit
- Individual Screened
- Solid Copper cores
Our high quality, professional 305m reel of Cat 6 S/FTP cable has a solid copper core, HDPE Insulation and is capable of up to 10 Gigabit speeds (Read more)
PRODUCT DETAILS
Our premium Category 6A shielded (F/FTP) network cable is supplied on 305 metre reels and has a solid copper core. It is capable of up to 10 Gigabit ethernet speeds and features double transmission frequency from 250MHz to 500MHz.
The cable is tested to meet and exceed the Category 6A standard and is supplied on 305 metre reels.
Features:
- Individual screened foil twisted pairs
- Up to 10 Gigabits
- 500 MHZ Frequency
- Solid coppers conductors
- Clearly metre marked
| CPR |
Fca |
| Conductor | Bare Copper |
| Conductor Diameter (mm) | 0.565 ±0.010 |
| Overall Diameter (mm) |
7.50 ±0.50 |
| Insulation | HDPE |
| Insulation Thickness (mm) | 0.1 |
| Insulation Colour | Blue/White/Blue; Orange/White/Orange; Green/White/Green; Brown/White/Brown |
| Nylon Rip-Cord | White 210D |
| Jacket | PE (UV resistant) |
| Jacket Colour | Black RAL 9005 |
| Jacket Thickness (mm) | 0.55 ±0.05 |
| Overall Sheath | PE |
| Overall Colour | Black |
| Standards | ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD
2014/35/EU,RoHS2 2011/65/EU |
| Application | External Data transmission up to 10Gb/s that requires shielding from interference. |
| Drain wire conductor | Tinned Copper |
| Videos |
|---|
| No videos available |
| Files |
|---|
| SFX/C6A-S/FTP-PE-BLK-305 Datasheet |
