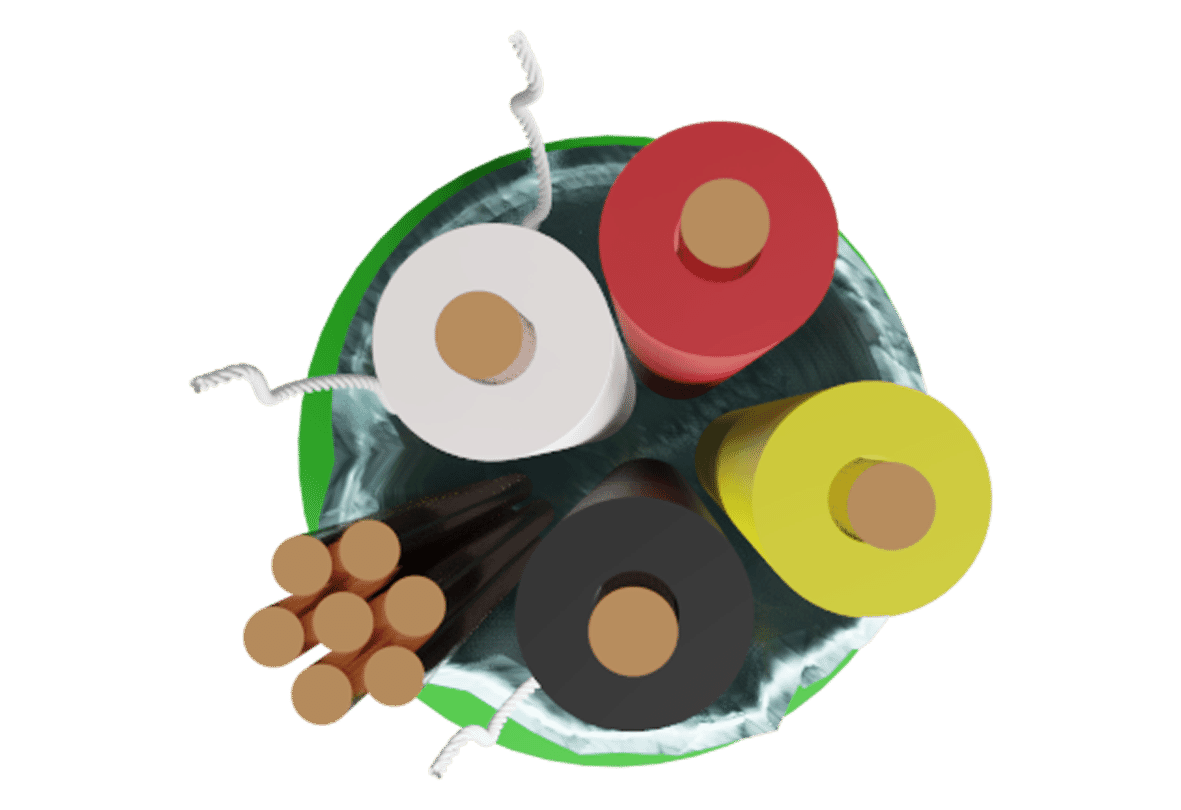

EIB Bus 2 x 2 x 0.8mm Green LSZH KNX Certified TP1 CPR:Dca - Cable - 100m
SFX Cables
- Green LSZH Sheath
- Suitable For KNX
- Solid Copper Core
The SFX KNX equivalent LSZH EIB bus cable is designed for smart home automation, control systems, lighting control, HVAC and energy management systems (Read more)
PRODUCT DETAILS
The SFX KNX equivalent EIB bus cable is designed for smart home automation and control systems. Constructed with 2 pairs of 0.8mm conductors and a Low Smoke Zero Halogen (LSZH) sheath, it provides reliable communication between KNX devices while meeting the requirements of modern commercial and residential installations.
Suitable for a wide range of building management applications, including lighting control, HVAC, energy management, shading systems, and smart home automation, this cable delivers dependable data transmission across KNX and EIB networks. Its green outer sheath provides easy identification during installation, while the Dca CPR classification makes it suitable for use in environments where enhanced fire performance is required.
Features:
- KNX equivalent EIB bus cable
- 2 x 2 x 0.8mm conductor configuration
- Designed for building automation and intelligent control systems
- LSZH (Low Smoke Zero Halogen) outer sheath
- Dca CPR-rated for improved fire performance
- Green outer jacket for easy identification
- Reliable signal transmission for KNX and EIB applications
- Suitable for commercial, residential, and public building installations
| Cable
Construction |
|
| Cable Construction |
2 Pairs |
| CPR |
Dca -s:2 -a:1 -d:2 |
| Conductor |
Bare Copper |
| Conductor 2 |
N/A |
| Conductor 3 |
N/A |
| Conductor Diameter (mm) |
0.80 ±0.01 |
| Inner Conductor |
Bare Copper |
| Stranded Diameter (mm) |
0.8 |
| Overall Diameter (mm) |
6.50 ±0.20 |
| Insulation |
|
| Insulation |
HDPE |
| Insulation Colour |
Red/Black, White/Yellow |
| Insulation Resistance @20°C |
>200MO/km |
| Insulation Thickness (mm) |
0.28 |
| Outer/Jacket
Specification |
|
| Outer Jacket |
LSZH |
| Outer Jacket Colour |
Green RAL 6018 |
| Inner Jacket |
N/A |
| Inner Jacket Colour |
N/A |
| Inner Jacket Diameter (mm) |
N/A |
| Inner Jacket Thickness (mm) |
N/A |
| Jacket |
LSZH |
| Overall Colour |
Green |
| Overall Diameter (mm) |
6.50 ±0.20 |
| Jacket Colour |
Green RAL 6018 |
| Jacket Thickness (mm) |
0.8 |
| Nylon Rip-Cord |
Yes |
| Electrical
Characteristics |
|
| Insulation Resistance @20°C |
>200MO/km |
| Max Conductor DC resistance @ 20°C |
<37.0O/km |
| Outer Conductor DC resistance @ 20°C |
≤81.0 Ω/km |
| Rated Temperature (°C) |
-40°C to 70°C |
| Rated Voltage (V) |
600V |
| Impedance |
Nom. 78 Ω |
