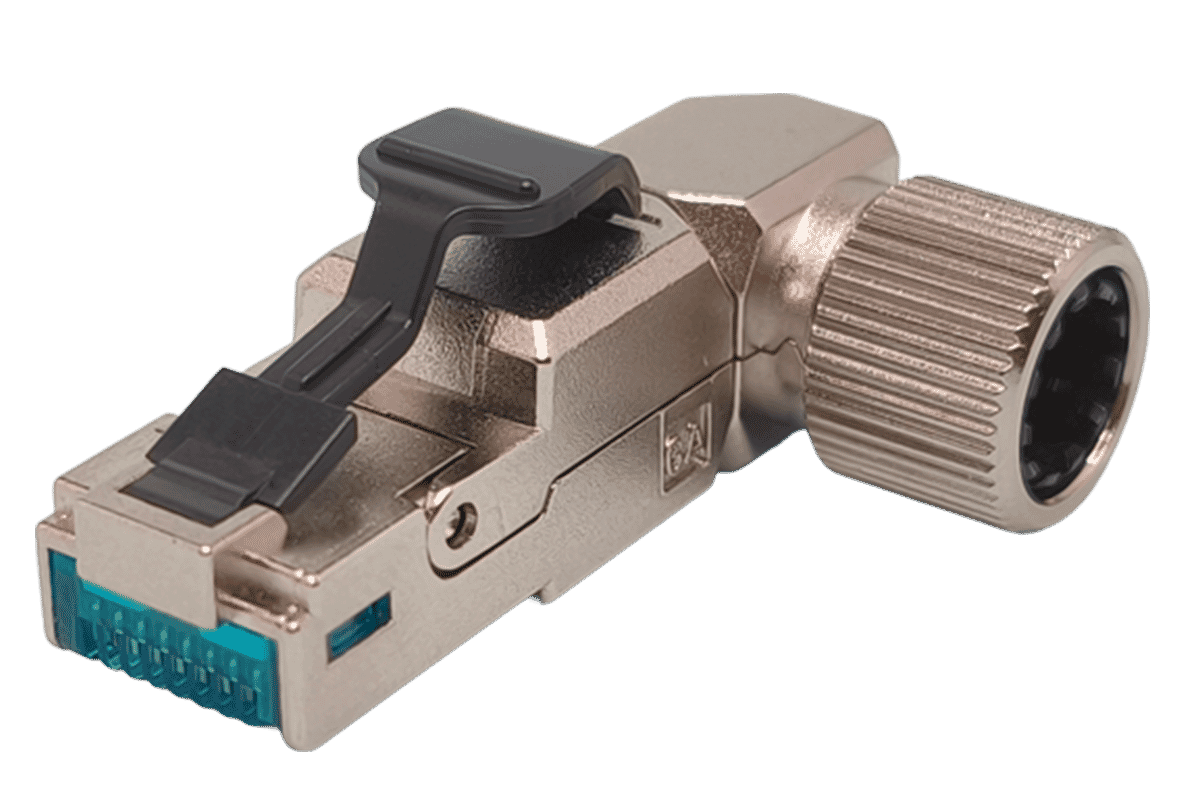

TUK Cat 6A Shielded 90 degree 8 Way Angleable Toolless Plug

The TUK Cat 6A Shielded 90° 8-Way Angleable Toolless Plug is a professional-grade RJ45 termination solution designed to make high-performance Cat 6A installations faster, easier, and more reliable. Its tool-free design and angleable shielded plug head allow installers to create clean, compliant RJ45 terminations without crimp tools, while the 90° orientation provides a neat finish in tight spaces and improves cable routing behind devices.

Built for demanding Cat 6A networks, this plug maintains shielding integrity and performance up to 10 Gbps, making it ideal for structured cabling, PoE systems, IP camera networks, access control, and high-speed data installations.

Its innovative 8-way cable entry system offers unmatched flexibility for cable routing in tight or complex environments, while the robust, shielded housing ensures excellent signal integrity and EMI protection. With no need for crimping tools or jacks, the PGS45 enables quick deployment across a range of professional networking and AV installations.

Features:

• Flexible cable entry design offers assembly in any one of eight directions
• Capable of multiple adjustment/re-termination if necessary
• High performance data throughput, meets Category 6A data transfer rates (so also suitable for Cat 5e and Cat 6)
• Fully shielded
• Colour coded to enable T568A, T568B or Industrial (eg Profinet) wiring
• Suitable for cable O.D: 5.5~8.5mm
• Suitable for UTP 23~27 AWG / 0.40 – 0.57 mm stranded or solid cores (10 installation cycles with 23-26AWG; 5 installation cycles with 27AWG)
• Mating cycles: 750 minimum
• Suitable for assembly of angled patch leads
• Easy assembly – suitable for field termination, especially MPTL installations
• 4PPoE compliant
