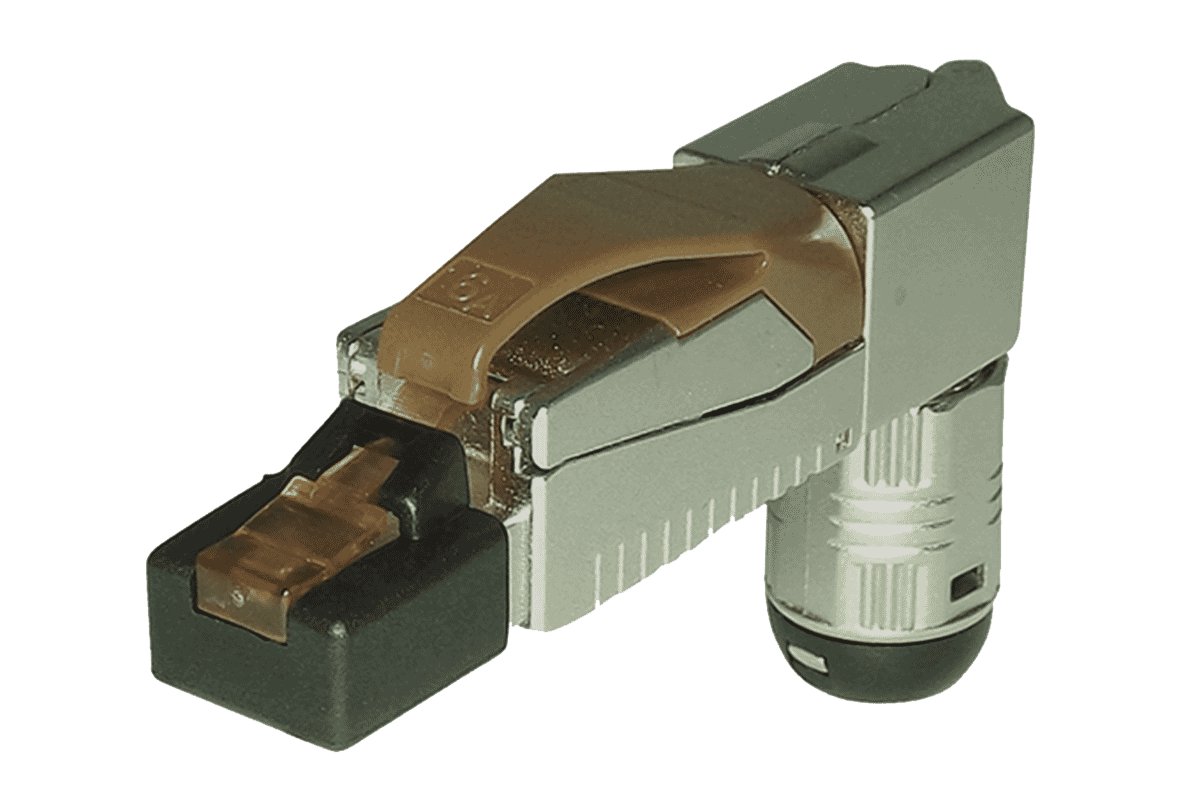

TUK PGS90 Cat 6A Directional Field Termination Plug

The TUK PGS90 Cat 6A 5 Direction Field Termination Plug is a high-performance, tool-free RJ45 connector designed for fast, flexible, and reliable termination of solid or stranded Cat 6A cable. Ideal for on-site installation, repairs, and custom cabling requirements, this plug supports 10 Gigabit Ethernet and full Category 6A performance.

Its innovative 5-way cable entry system offers unmatched flexibility for cable routing in tight or complex environments, while the robust, shielded housing ensures excellent signal integrity and EMI protection. With no need for crimping tools or jacks, the PGS90 enables quick deployment across a range of professional networking and AV installations.

Features:

• Flexible cable entry design offers assembly in any one of five directions
• High performance data throughput, meets Category 6A data transfer rates
• Suitable for assembly of angled patchlead
• Easy assembly – suitable for field termination, especially Modular Plug Terminated Link installations
• Colour coded to enable T568A or T568B wiring
• Insertion force : 30N max
• Retention strength : 7.7kg between jack and plug
• Operating temperature: -10º C to 60º C
• Suitable for cable O.D. 6.0 – 7.5mm
• Suitable for 23 – 26 AWG / 0.40 – 0.57 mm stranded or solid cores (minimum 20 installation cycles)
• Mating cycles: 750 minimum
