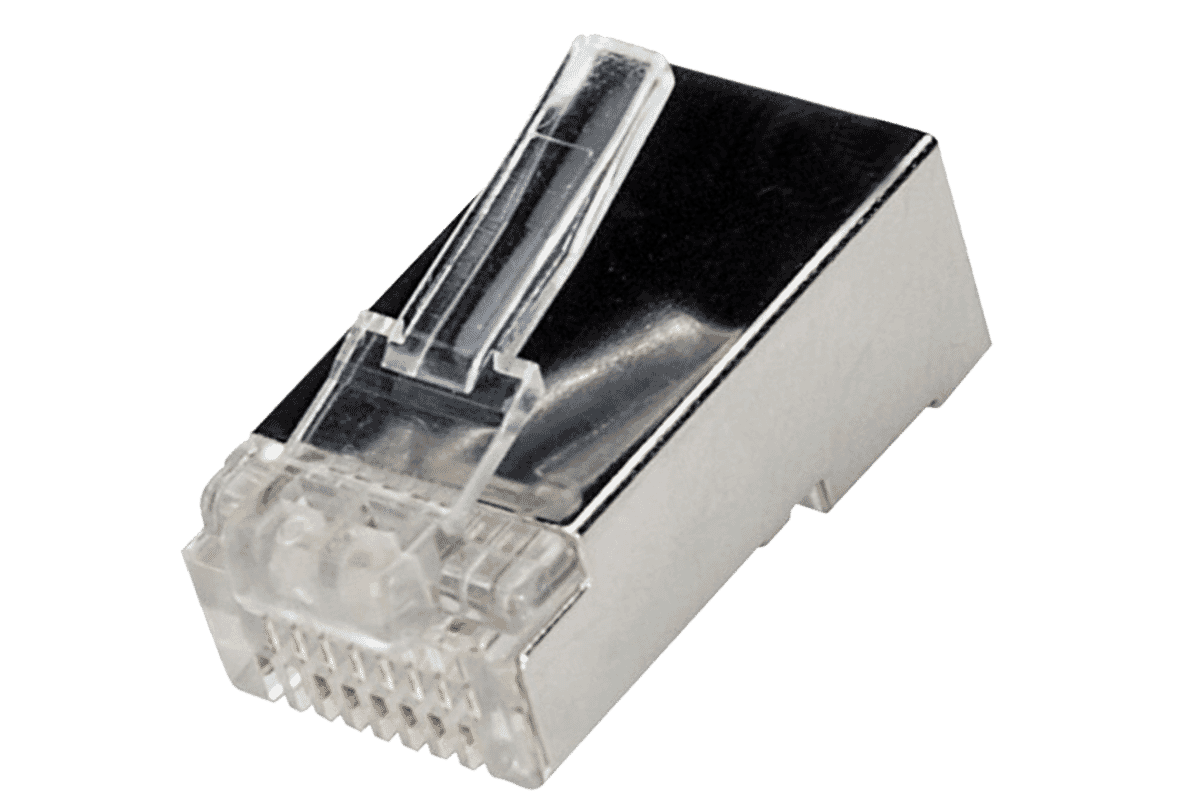

Cat 6 Premium FTP Shielded RJ45 Modular Plugs for Stranded Wire (10pc)
Roline
- Pack of 10 plugs
- 50µ Gold plating
- Stranded cable
The shielded version of our best selling one piece Cat 6 certified RJ45 (8P8C) modular plug featuring high quality 50µ Gold plated contacts (Read more)
PRODUCT DETAILS
*** Sold in packs of 10 plugs ***
Our 8-pin modular shielded RJ45 plugs feature shielding against interference and a multi-purpose three-point contact design suitable for stranded Category 6 FTP network cable. The contacts in the plugs have 50µ (micron) gold plating and use high purity gold which provides excellent conductivity and makes them highly corrosion resistant.
The plugs are a one-piece design and feature a wide cable entry suitable for high grade Category 6 network cable and making installation easier.
The cable channels within the plug are staggered allowing the plug to accept up to 23AWG network cable and helping to reduce cross-talk from adjacent conductors.
There are many inferior modular RJ45 plugs available that use poor quality contact material. This can lead to lower throughput and signal degradation over time. Our shielded RJ45 modular plugs are manufactured in a controlled environment to the highest standard using premium materials to deliver the best possible performance for your network installations.
Features
- Shielded against external interference
- Compatible with thicker Category 6 cables
- High-quality gold-plated contacts
- Suitable for stranded cable (Core diameter up to 1.0mm)
- Certified for Category 6 installations
- One piece design for easy installation
- Staggered alignment for minimal cross-talk
| Specification | |
| Housing | Polycarbonate, UL94V-2 |
| Colour | Transparent |
| Shielded shell | Copper Alloy |
| Maximum Core Diameter | 1.0mm |
| Contacts | 8 x 50µ Gold plated |
| Contact style | Copper alloy - 3 prong blade |
| Termination resistance | 20M Ω |
| Insulation resistance | 100M Ω |
| Durability | 200 Mating cycles |
| Dimensions | 21.49 x 11.68 x 8.3 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Cat 6 Premium Shielded RJ45 Datasheet |
| Links* |
|---|
| Roline website |
| Roline support site |
