CDVI Electronic Fail-safe Adjustable Door Strike 12V DC
CDVI
- Fail Secure Design
- Non Handed
- up to 250kg Holding Force

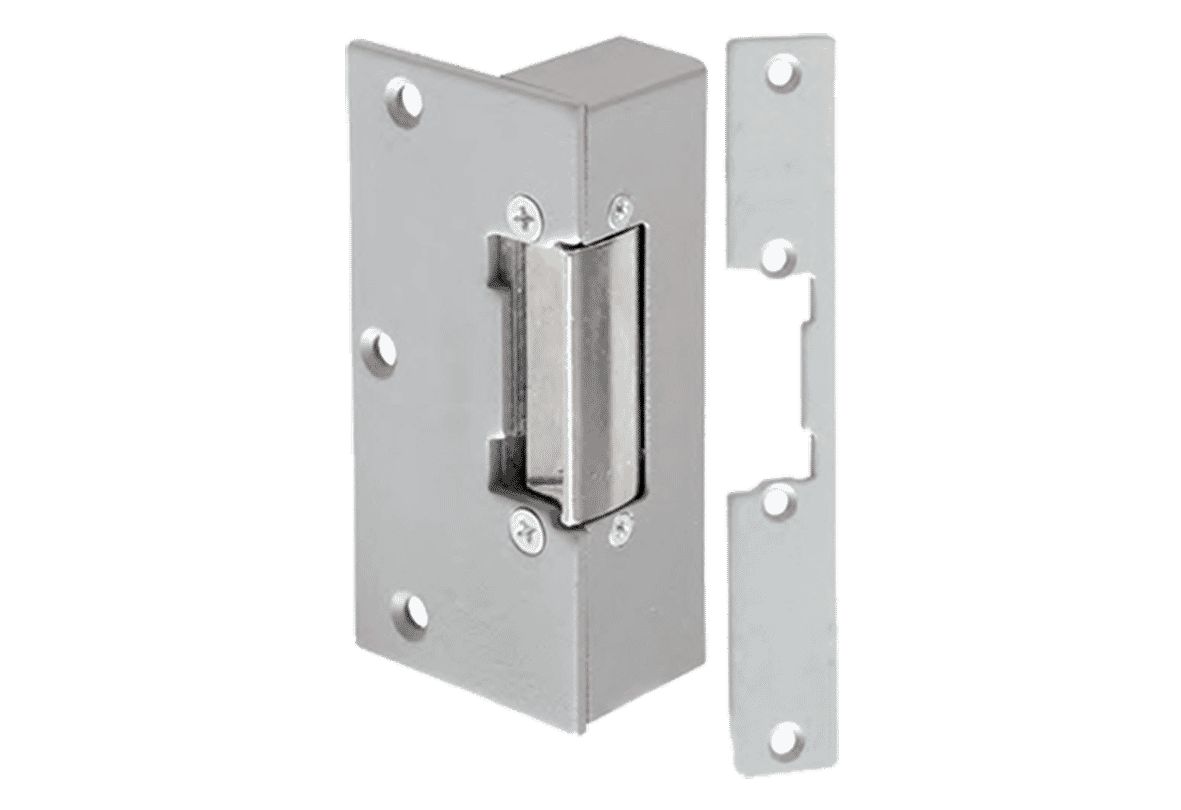

The CDVI GAER12 electronic fail-safe adjustable door strike can withstand up to 250kg holding force & is designed to unlock when the power is removed (Read more)
PRODUCT DETAILS
The GAER12 adjustable electronic door strike from CDVI is an extremely popular choice for fitters of video entry and access control systems and is often deemed the industry standard. The Fail-Safe design will ensure the lock stays open when the power is removed. This is usually used in areas that have high volume footfall and need to kept open in the event of an emergency such as stairwells.
The GAER12 is non-handed, meaning it can be fitted to either side of the door frame, and the jaw is adjustable by up to 4mm. It also features a built in MOV (metal oxide varistor) which provides protection against ecteronic spikes, and can provide a holding force up to 350kg.
Features:
- Cost-effective
- Rim and mortice installation
- Non handed
- Adjustable jaw available (+4 mm)
- Fail Safe design
- Built-in MOV (metal oxide varistor)
- Holding force fixed jaw: 300kg
- Holding force adjustable jaw: 250kg
- Cycle tested to 300,000 operations
- Temperature: -15°C to +40°C
- Powder coated steel
| Product Specification | |
| Material |
Powder coated steel |
| Holding force |
250kg |
| Cycles |
tested to 300,000 operations |
| Electrical
Specifications |
|
| Power input |
12V to 24Vdc |
| Consumption |
@12Vac = 540mA @12Vdc = 630mA @24Vdc = 315mA |
| Videos |
|---|
| No videos available |
| Files |
|---|
| CDVI Electronic Fail-safe Door Strike Datasheet |
| Links* |
|---|
| No links available |
