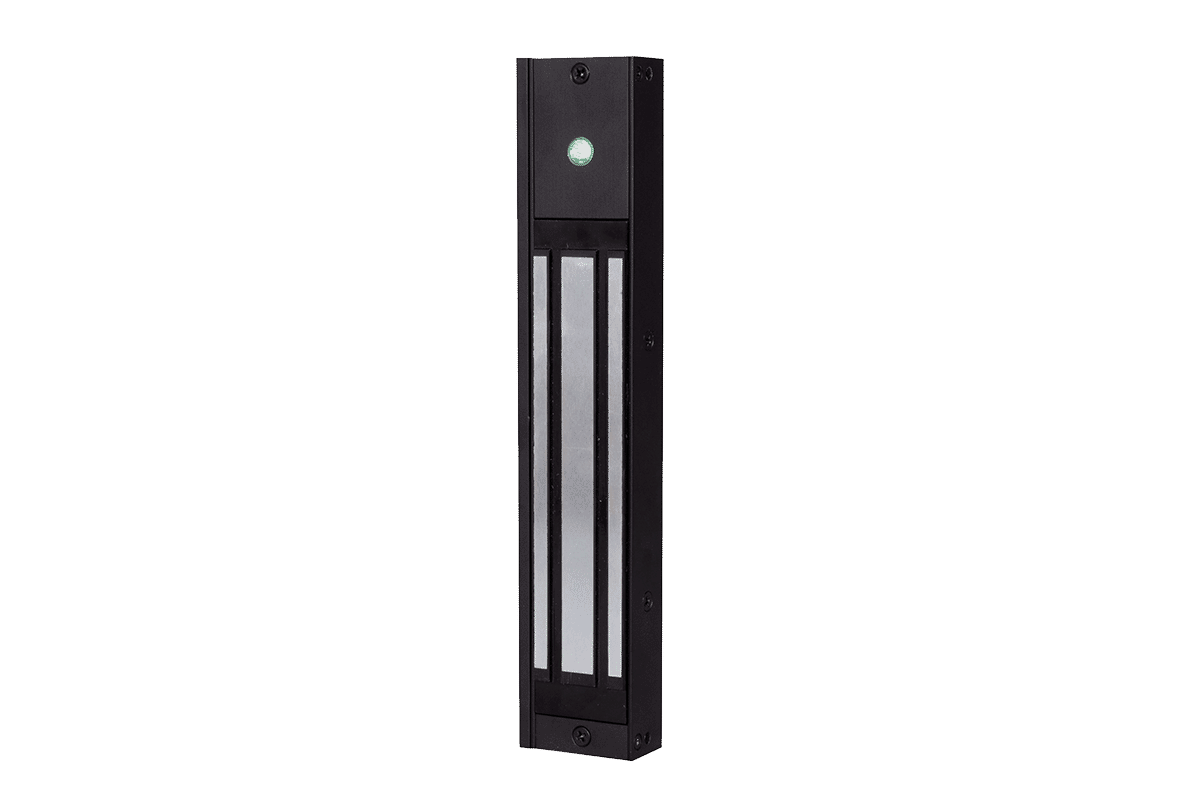

RGL MBK-ML600-MDS Slimline Monitored Maglock 600lbs / 280kg - Matt Black
RGL
- 12/24 VDC Powered
- Dual Monitoring
- Finished in black
The RGL MBK-ML600 is a black, 12 or 24 VDC powered mini maglock designed for securing a door as part of a standalone or managed access control system (Read more)
PRODUCT DETAILS
The MBK-ML600-MDS is a magnetic lock with a 600 lb holding force, designed for internal doors in access control applications. It includes both lock monitoring and door status monitoring, and features a voltage-free relay for comprehensive feedback—perfect for systems needing precise control and situational awareness.
Finished in matt black to complement existing décor.
The ML600-MDS can be directly mounted or mounted using a compatible bracket such as an L or Z&L bracket.
Features
- Finished in Matt Black
- Aluminium housing.
- Dual Voltage 12/24 VDC @480/240mA.
- 280kgs (600lb) holding force.
- Built in surge protection.
- Surface Mount
- Fail safe operation (Power to lock)
- +/- 15% voltage tolerance
- -10° to +50° operating temperature
- Push off release pin on armature
- Dual Monitored (Lock monitoring)
- Voltage free relay contacts
- Door status monitoring
- Fire Rated (30, 60, 90 & 120 minute timber door sets)
- Slim line mini magnet.
- Clean and compact design in aluminium.
- Status LED indication
- No residual magnetism
| Specifications |
|
| Maglock dimensions |
250x43x25 mm |
| Armature dimensions |
180x38x13 mm |
| Boxed weight |
1.97kg |
| Unboxed weight |
1.13kg |
| Contents | Slimline mini magnet (600lb) Armature plate 600GB fixing kit Instructions Armature fixing template |
| Videos |
|---|
| No videos available |
| Files |
|---|
| RGL MBK-ML600-MDS Datasheet |
| Links* |
|---|
| RGL website |
