STP Double Covered Z & L Bracket for Slim Fire Rated Maglock- STP-EM300ZLDC-FIRE
STP
- Covers Maglock
- Inward Opening Doors
- Easy to Install
The STP STP-EM300ZLDC-FIRE is an adjustable Z & L mounting plate set for inward opening doors/gates fitted with STP fire rated magnetic lock range. (Read more)
PRODUCT DETAILS

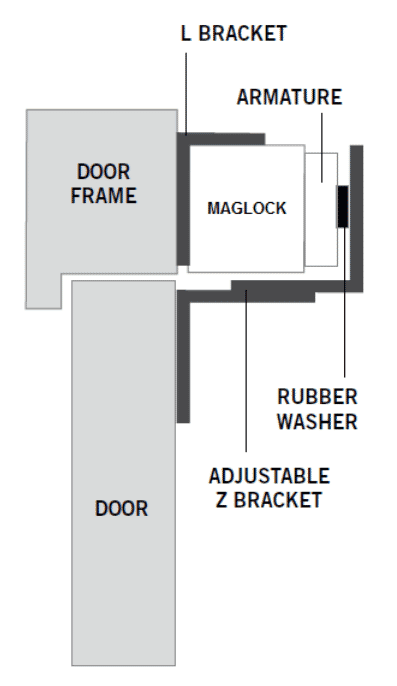

The STP STP-EM300ZLDC-FIRE architectural bracket set is designed for STP slim maglocks, and is double covered, giving the smartest appearance possible to the installation of an inward opening door. The fully adjustable Z bracket enables precise alignment of the armature plate with the magnet.
Application
Features:
- For use on inward opening doors
- Compatible with all slim cased maglocks from STP
- Anodised aluminium finish
- Fully adjustable
- Architectural design improves aesthetics
| Specifications |
|
| Applications | 2 brackets required for double
magnets |
| Dimensions |
Z Bracket = 255mm(L) x 97mm(D) x
82mm(H) L Bracket = 250mm(L) x 30mm(W) x 48mm(H) |
| Maximum adjustment |
22mm |
| Videos |
|---|
| No videos available |
| Files |
|---|
| STP Double Covered Z & L Bracket Datasheet |
| Links* |
|---|
| STP website |
