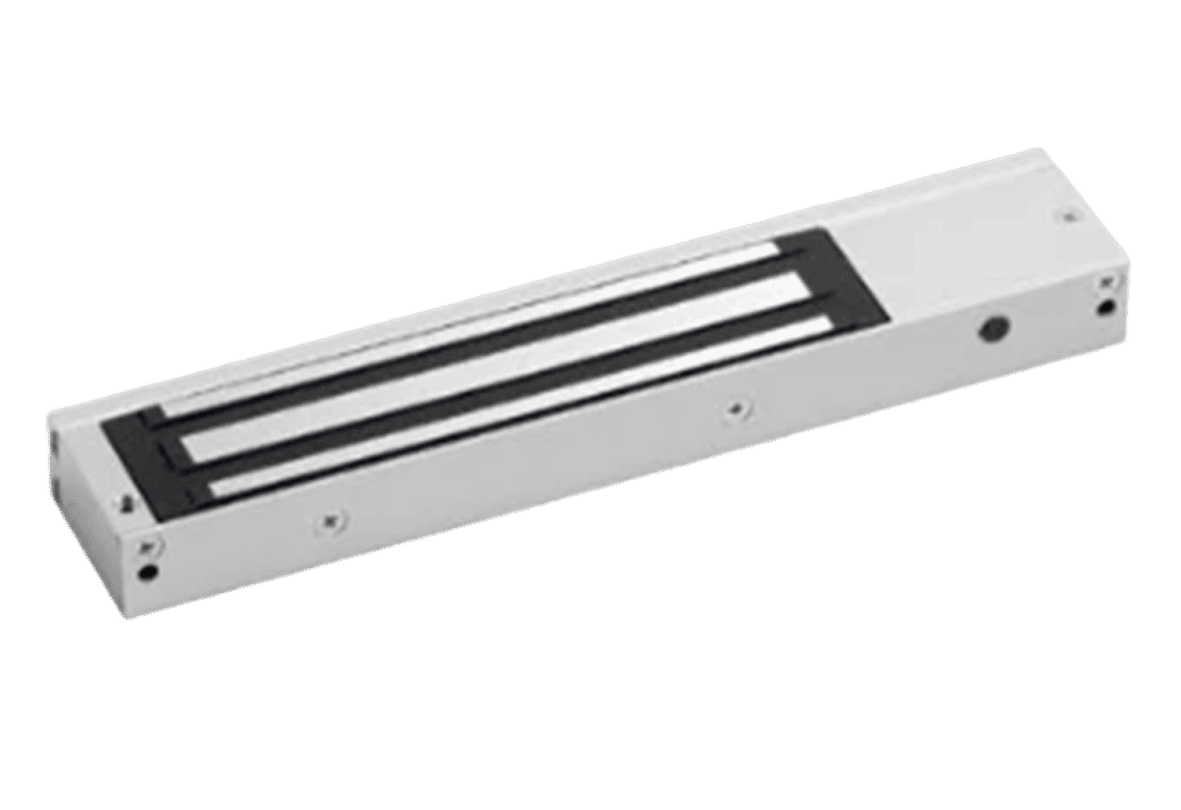

STP Slim Fire Rated Monitored 300kg Maglock 12/24Vdc - STP-EM02-FIRE
STP
- Fail-Safe Operation
- Monitored
- 300kg Holding Force
The STP STP-EM02-FIRE is a 300kg fail-safe electromagnetic fire door release magnet, designed to hold fire doors in an open position in an emergency (Read more)
PRODUCT DETAILS
The STP STP-EM02-FIRE is a fail-safe electromagnetic fire door release magnet, designed to securely hold fire doors in an open position and automatically release them in the event of a fire alarm activation or power loss. Ideal for commercial, public sector, healthcare, and educational environments, it helps maintain safe access throughout a building while ensuring compliance with fire safety requirements.
Engineered for reliable day-to-day operation, the STP-EM02-FIRE provides strong magnetic holding force to retain fire doors open during normal use, improving accessibility and airflow within occupied spaces. When connected to a fire alarm system, the unit instantly releases the door upon alarm activation, allowing the fire door to close safely and help contain smoke and fire spread.
Features:
- Electromagnetic fire door holder for fail-safe fire protection
- Automatically releases doors during fire alarm activation or power failure
- Helps maintain compliant fire compartmentation
- Suitable for commercial and public buildings
- Strong magnetic holding force for reliable operation
- Compatible with fire alarm and access control systems
- Durable construction for long-term performance
- Ideal for hospitals, schools, offices, and care facilities
| Specifications |
|
| Holding force |
Up to 300kg (661lb) |
| Current draw |
500mA @ 12Vdc / 250mA @ 24Vdc |
| Voltage tolerance |
+/- 15% |
| Operating temp |
-10°C to +55°C |
| Humidity |
0-95% non-condensating |
| Weight |
2kg approx |
| LED indicator |
Red/Green |
| Relay |
COM/NO/NC (1A@24Vdc) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| STP Slim Fire Rated Monitored Maglock Datasheet |
| Links* |
|---|
| STP website |
