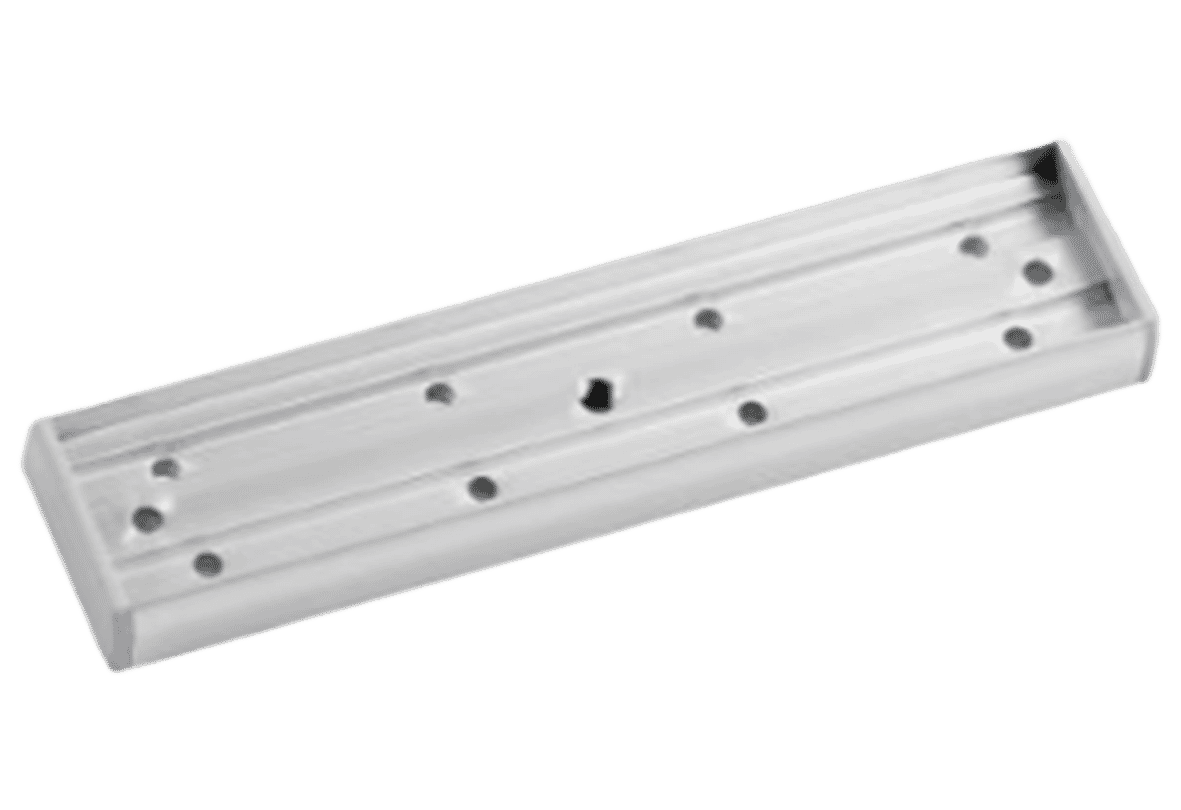

STP Surface Armature Housing for Slim Fire Rated Maglock - STP-EM320M-FIRE
STP
- Fire Rated
- Multiple Fixing Holes
- No Need to Drill through Door
The STP STP-EM320M-FIRE is a fire rated, surface mountable aluminium armature housing, designed for use with the STP fire rated magnetic lock range. (Read more)
PRODUCT DETAILS
The STP STP-EM320M-FIRE is a fire rated armature housing for the STP-EM02 slimline magnets to be fitted without the need to drill through thick doors, or where fire doors prevent drilling. With a satin anodised aluminium finish and multiple fixing holes, the EM320M is lightweight and strong.
Features:
- Surface mount
- Used to avoid drilling through the door
- Stands the armature plate off the surface of the door by 9mm
- Satin anodised aluminium finish with plastic end caps
| Specification |
|
| Dimensions | 193mm(L) x 45mm(W) x 16mm(D) |
| Requirements | 2 required per double maglock |
| Standoff | Stands the armature plate off the surface of
the door by 9mm |
| Please note | If used with ‘DS’ (door status) maglocks one
of the end caps must be removed |
| Videos |
|---|
| No videos available |
| Files |
|---|
| STP Surface Armature Housing Datasheet |
| Links* |
|---|
| STP website |
