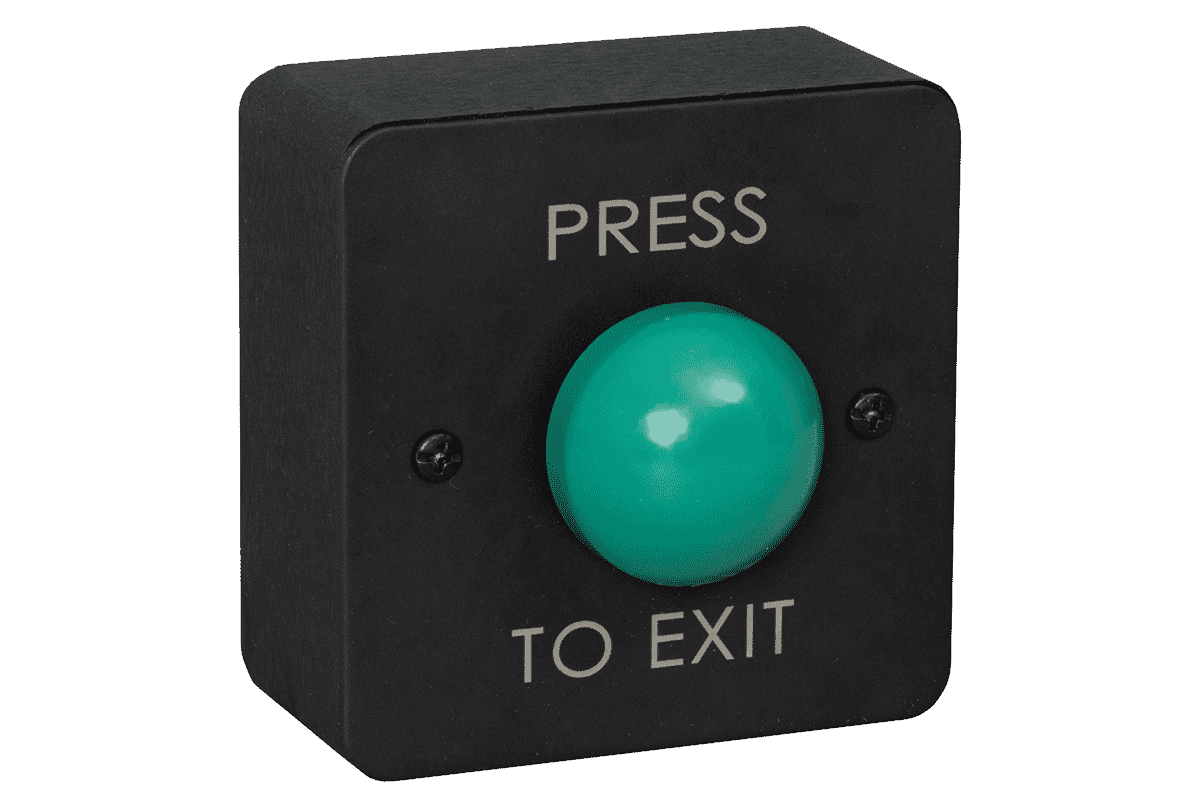

RGL MBK- MEXT-EBGB/PTE - Press to Exit - S/Steel Button - 85x85x35/63mm - Black
RGL
- Matt Black Casing
- Green Mushroom Button
- IP66 Rated
The MBK-MEXT-EBGB/PTE is a durable mushroom style matt black push to exit button with double pole NONC contacts, Suitable for indoor and outdoor use (Read more)
PRODUCT DETAILS
The RGL MBK-MEXT-EBGB/PTE is a mushroom style metal steel push to exit button with double pole NONC contacts. The MBK-MEXT-EBGB/PTE is suitable for internal and external use and is durable and impact resistant.
Finished in matt black to compliment existing décor.
Features:
- Finished in Matt Black
- Contacts: Double pole N/O – N/C
- Output: 4 AMP contact @ 30 V AC/DC
- Wear resistant legend
- High impact aluminium extrusion
- Vandal resistance
- Large metal green button
- Momentary operation
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general/sensitive areas
- Screw footprint for flush fitting onto standard back box
| Specifications |
|
| Contacts |
Double pole NONC |
| Output |
4 AMP contact @ 30V ACDC |
| Wear resistant legend |
PRESS TO EXIT |
| Case | High impact aluminium |
| Vandal resistant |
Yes |
| Use | Internal or External |
| Rating | IP66 |
| Contacts |
Silver |
| Operating temperature |
-20° to +60°c |
| Operating travel |
2mm |
| Contact resistance |
10m OHM (Max) |
| Operating life (mechanical) |
1,000,000 |
| Dimensions | 85H x 85W x 38D (mm) |
| Weight | 462g (Boxed) 422g (Unboxed) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| RGL MBK- MEXT-EBGB/PTE Datasheet |
