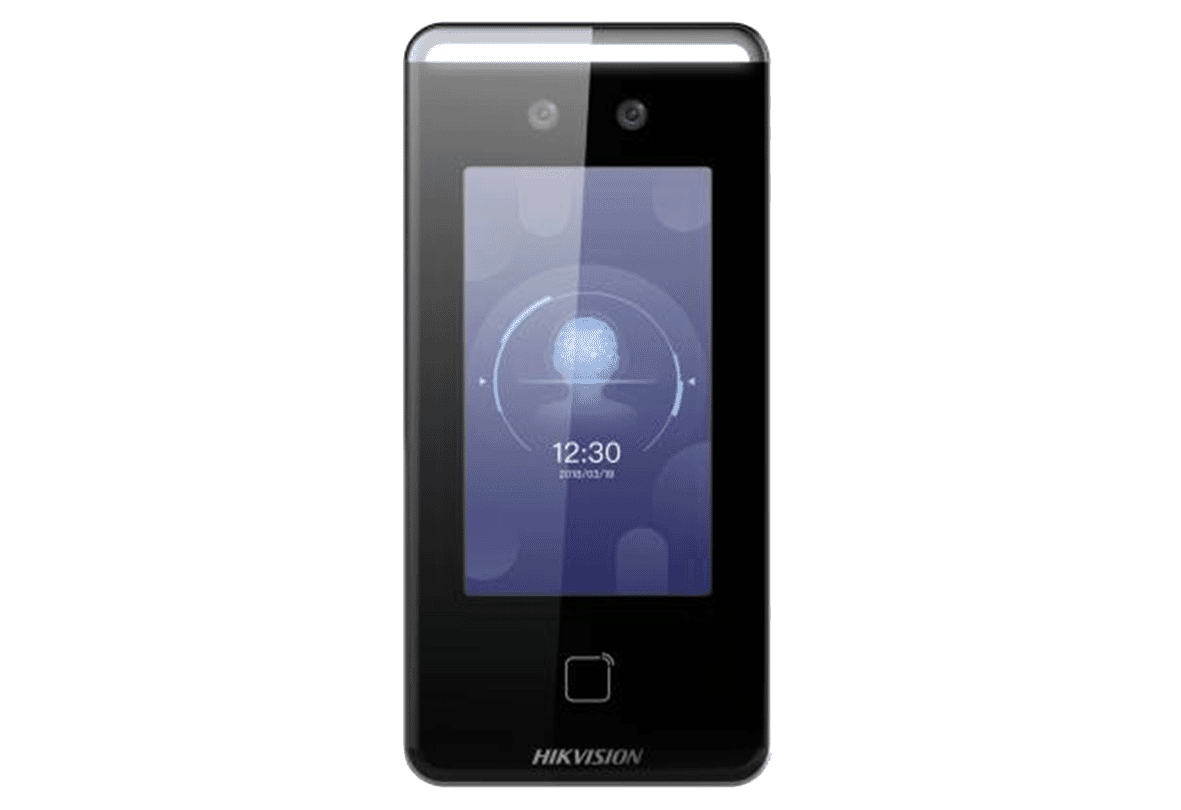

Hikvision DS-K1T341CMW 4.3 Inch Face Recognition Touch Screen Terminal
- Face Mask Wearing Alert
- 4.3-inch LCD Touch Screen
- 3 year guarantee
The Hikvision DS-K1T341CMW is a touch screen facial recognition terminal and card reader that uses intelligent AI algorithms to recognise a human face (Read more)
PRODUCT DETAILS
The Hikvision DS-K1T341CMW is a touch screen facial recognition terminal that uses intelligent AI algorithms to recognise a human face and grant or deny access based on factors such as clearance status or if a face mask is being worn. It features a 4.3" LCD touch screen, a Mifare card reader, and 3,000 face capacity, 3,000 card capacity, and 150,000 event capacity. 2-way audio allows for non-face-to-face communication and can be used to prompt the use of a face mask before entry is granted.
Not only does the DS-K1T671M provide top level security, but it also ensures a safe environment against the spread of germs. Unlike conventional push-button or fingerprint scan access control systems, the DS-K1T341CMW is completely contact free, and can scan a face in a fraction of a second, reducing the number of users waiting to gain entry. Alerts can be set when the camera spots that a mask is not being worn and can sound prompts and refuse entry until the mask is in place. This can log an event on the recorder and create a report showing failed access requests.
Features:
- Deep learning algorithm
- 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
- 3,000 face capacity, 3,000 card capacity, and 150,000 event capacity
- Multiple authentication modes, including face, and card, etc.
- Face recognition duration < 0.2 s/User
- Supports mask wearing detection
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, door station, indoor station, and main station
| Display | |
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Video | |
| Lens | 2 |
| Resolution | 2 MP (video stream: 720P) |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Interface | |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1,Wiegand (Hik 26bit,Hik 34bit) |
| USB | 1 |
| Authentication | |
| Face recognition distance | > 2 m |
| Card type | M1 card |
| General | |
| Built-in access controller | Support |
| Power supply | 12 VDC to 24 VDC, 2 A |
| Power consumption | ≤ 10 W |
| Working temperature | -30 °C to 60 ℃ (-22 °F to 140 °F ) |
| Protective level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
| Function | |
| Hik-Connect | Support |
| QR code recognition | Support |
| Face anti-spoofing | Support |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-K1T341CMW Datasheet |
