Hikvision DS-KH9570-WTE1/S IP 9 Series 10" Touch Screen Intercom Monitor
Hikvision
- 10.1” IPS Touchscreen
- 4GB RAM + 8GB Storage
- 3 year guarantee
The Hikvision DS-KH9570-WTE1/S is a premium 10.1-inch touchscreen indoor station designed for use with the new 9 Series video intercom systems. (Read more)
PRODUCT DETAILS
The Hikvision DS-KH9570-WTE1/S is a premium 10.1-inch touchscreen indoor station, designed to deliver advanced video intercom functionality alongside integrated smart security management. Part of Hikvision’s high-end 9 Series, it provides a centralised interface for monitoring, communication, and access control within modern residential and commercial environments.
Featuring a high-resolution 1920 × 1200 IPS display, the unit delivers sharp, detailed video, ensuring clear visibility when interacting with visitors or viewing connected cameras. Powered by Android 14 with a quad-core processor, 4GB RAM, and 8GB storage, it offers ultra-smooth performance and an intuitive user experience.
Designed for seamless communication, the DS-KH9570-WTE1/S includes dual microphones and built-in speakers with noise suppression and echo cancellation, enabling clear two-way audio at all times. Its integration capabilities allow users to manage door entry, alarms, and live video feeds from a single device, making it a true all-in-one control point for security systems.
With support for Wi-Fi 6, Bluetooth, and PoE connectivity, installation is flexible and reliable across a wide range of environments. The station also integrates with the Hik-Connect app, enabling remote answering of calls and system monitoring from anywhere.
Features:
- 10.1” IPS touchscreen with 1920 × 1200 resolution
- Android 14 OS with quad-core processor for smooth performance
- 4GB RAM + 8GB storage
- Dual microphones and speakers with noise suppression
- Wi-Fi 6, Bluetooth, and PoE support for flexible installation
- Centralised control of intercom, cameras, and alarms
- Compatible with Hik-Connect for remote access
- Supports integration with multiple door stations and network cameras
| System parameters | |
| Operation system | Android 14 |
| ROM | 8 GB |
| RAM | 4GB |
| Processor | Embedded high performance processor |
| Display parameters | |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Type | Colourful IPS |
| Resolution | 1920 ×1200 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| Video compression standard | / |
| Audio parameters | |
| Audio input | 2 built-in omnidirectional microphone |
| Audio compression standard | G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD |
| Audio output | 2 built-in loudspeaker (Max. 80dB@50cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Linked doorphone capacity | 17 |
| Message capacity | 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records |
| Linked indoor extensions capacity | 16 |
| Linked network camera capacity | 16 (Up to 4 1080P decoding streams at the same time, H.264&H.265) |
| Network parameters | |
| Wi-Fi | Wi-Fi 6, 2.4 GHz & 5GHz |
| Bluetooth | BLE 5.0 |
| Network protocol | IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP,
ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF |
| Device interfaces | |
| Alarm input | 8 (Reserved) |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card (FAT32/exFAT), up to 256 G |
| Power supply input | 12 VDC |
| Power supply output | 12 VDC, 200mA |
| Relay | 1 (Reserved), Max. 30VDC 1A |
| General | |
| Proximity Sensor | Distance: 50cm, Horizontal: 25°, Vertical: 25° |
| Installation | Surface mounting |
| Weight | Without package: 545 g (1.2 lb),With package: 639g (1.41 lb) |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Power supply | 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 24 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |

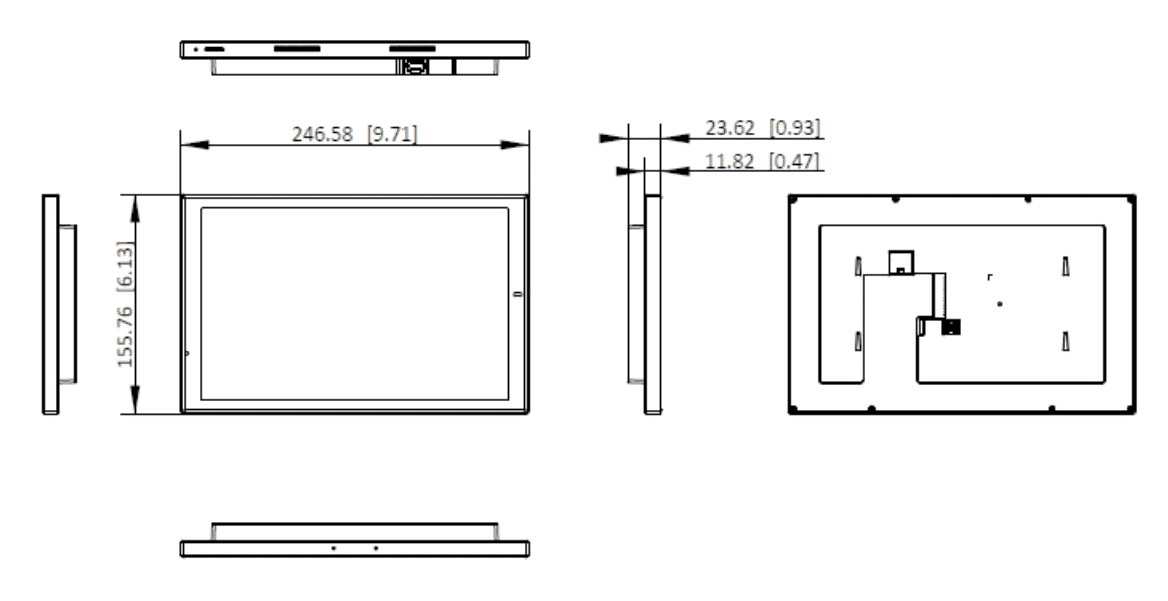

| Dimension (W × H × D) | 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93") |
