Hikvision DS-KIS613-S IP 4MP Video Intercom Kit
Hikvision
- 2 Locks Control
- Complete Kit
- 3 year guarantee
The Hikvision DS-KIS613-S IP is a video intercom kit supplied with a door station, indoor touchscreen, rain shield, PSU, PoE switch, & prox key fobs. (Read more)
PRODUCT DETAILS

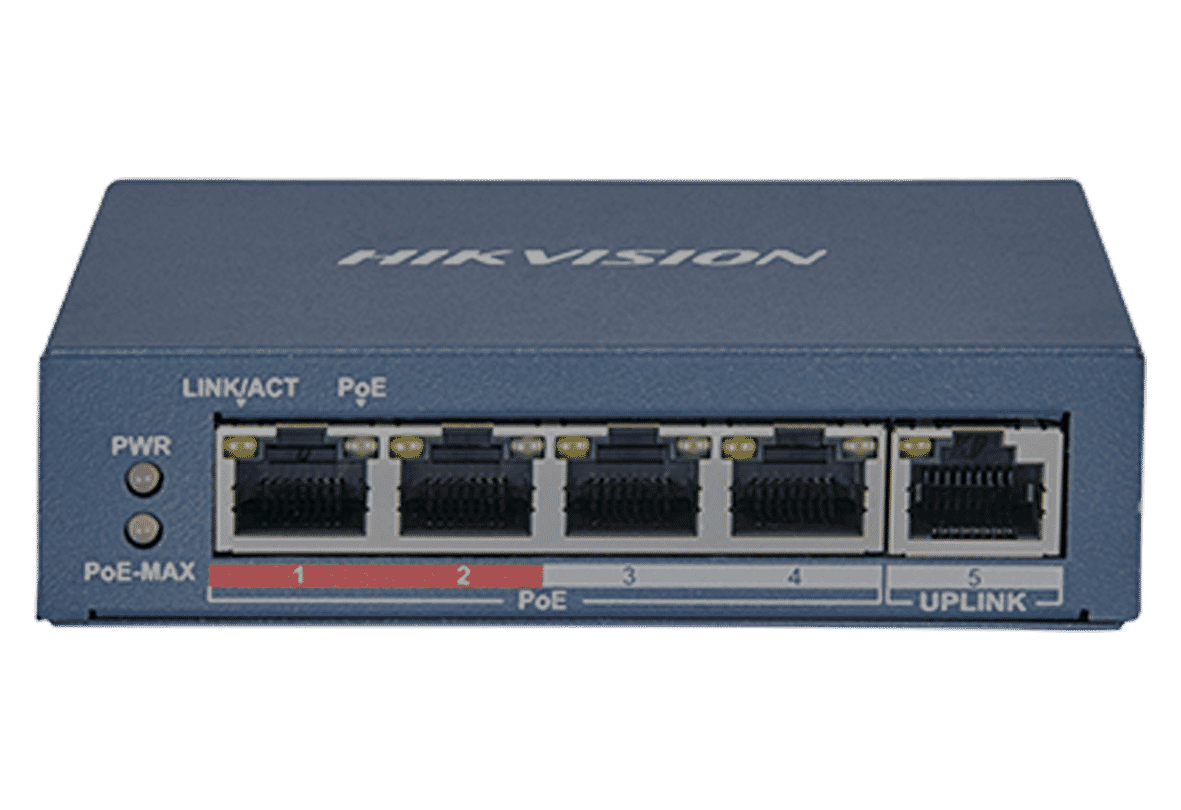

The Hikvision DS-KIS613-S IP is a 4mp video intercom kit comprised of a DS-KV6114-MWBE1 door station, a DS-KH8380-WTE1 7'' indoor touch screen, a DS-KABV6114-RS rain shield, a 4 port PoE switch, a power supply, a 32GB TF card, an administrator card and 5 prox key fobs.

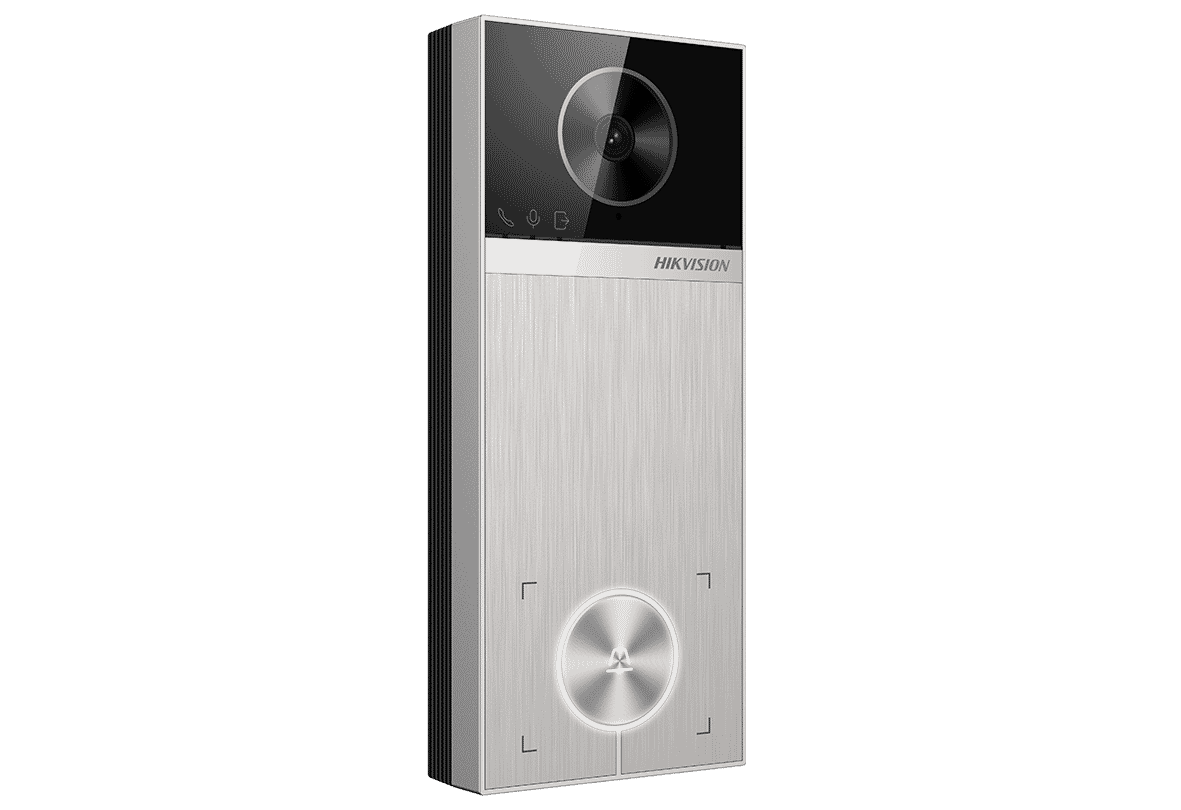

DS-KV6114-MWBE1 Door Station
The Hikvision DS-KV6114-MWBE1 is a 1-button IP villa door station designed for modern homes and small businesses. With its sleek metal housing, built-in camera, and Wi-Fi support, it offers both convenience and security by allowing users to see, speak to, and grant access to visitors directly from an indoor monitor or mobile device via the Hik-Connect app.
It features multiple unlocking methods, including Prox Card, Bluetooth, Hik-Connect, indoor station, and can be used to control 2 door locks.

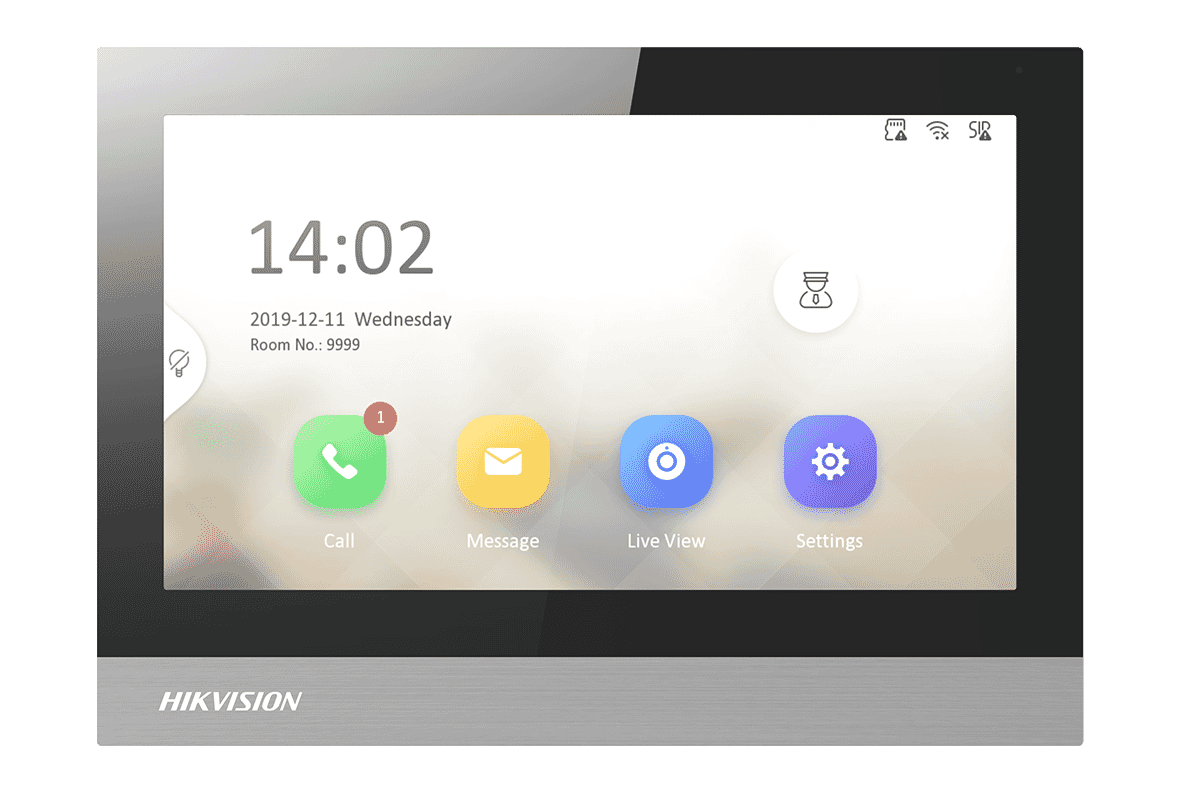

DS-KH8380-WTE1 Touch Screen
The Hikvision DS-KH8380-WTE1 is a premium 8-Series indoor station designed for use with Hikvision IP video intercom systems. It provides clear two-way audio and video communication, simple door control, and an intuitive touchscreen interface, making it ideal for residential and commercial access control installations.
Featuring a 7” colour touchscreen, the DS-KH8380-WTE1 allows users to see and speak to visitors, view live camera feeds, and unlock doors directly from the indoor unit. With both Ethernet and Wi-Fi connectivity, it offers flexible installation options and integrates seamlessly with Hikvision door stations and the Hik-Connect platform for remote access.
Features:
- 4MP higher resolution with 150° viewing angle
- 2 locks control
- Multiple unlocking methods: Card, Bluetooth, Hik-Connect, indoor station
- Video recording and playback via indoor station or door station
- Standard PoE power supply
- Including: DS-KH8380-WTE1 x1, DS-KV6114-MWBE1 x1, DS-KABV6114-RS x1, 4 port PoE switch x1, PSU × 1, 32GB TF card x1, Administrator Card x1, Key fob x 5
| Door station/System parameters | |
| Operation system | LINUX |
| Processor | Embedded high performance processor |
| Memory | / |
| RAM | 512 MB |
| ROM | 4 GB |
| Door station/Video parameters | |
| Supplement light | IR light, up to 3 m |
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P),
1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| Lens | 1 |
| FOV | Horizontal: 150°; Vertical: 75° |
| Video compression standard | H.264; H.265; MJPEG |
| Door station/Audio parameters | |
| Volume adjustment | Adjustable |
| Audio Performance | 50cm 80dB (Maximum: 50cm 83dB) |
| Door station/Capacity parameters | |
| User capacity | 2000 |
| Card capacity | 10000 |
| Door station/Network parameters | |
| Network protocol | TCP/IP, SIP, RSTP, IPV6, ONVIF |
| Wi-Fi | 2.4GHz |
| Bluetooth | Supported |
| Wi-Fi Protocol | IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax |
| Wi-Fi Type | Wi-Fi 6 |
| Door station/Authentication parameters | |
| Card reading frequency | 13.56 MHz |
| Card Type | M1 Card |
| Card Reading Distance | M1card:2to2.5cm |
| Authentication mode | Card; Bluetooth; Indoor Station; Hik-Connect |
| Door station/Application | |
| Mobile APP | Hik-Connect |
| Motion Detection | Support |
| Playback | Support |
| Call Elevator | Support |
| Smart Features | Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m) |
| Door station/Device interfaces | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Exit button | 1 |
| Lock control | 2 relay, Max. 30 VDC 2 A |
| RS-485 | 1 |
| Door contact input | 1 |
| Alarm input | 4 (include Exit button and Door contact input) |
| Alarm output | 0 |
| TAMPER | 1 |
| TF card | Support TF card, up to 128 G |
| Supported TF Format | FAT32;exFAT |
| Door station/General | |
| Button | 1 physical button(s) |
| Indicator | 3 |
| Power consumption | ＜ 10 W |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Application environment | Outdoor |
| Dimension (W × H × D) | 164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97") |
| Protective level | IP65 |
| Installation | Surface mounting |
| Without package: 273 g (0.61 lb),With package: 431g (0.95 lb) | |
| Material | Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass |
| Power supply | 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Power Supply Output | Max. 12 VDC, 1 A |
| Indoor station/Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio compression bitrate | 16~64Kps |
| Indoor station/Network parameters | |
| Wired network | 1 RJ-45, 10/100 Mbps self-adaptive |
| Wireless network | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Network protocol | TCP/IP, SIP, RTSP |
| Indoor station/Device interfaces | |
| RS-485 | 1 RS-485 (Half duplex) |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Support TF card, up to 128 G |
| Indoor station/General | |
| Power consumption | ≤ 5 W |
| Power supply | 12 VDC, 1 A,IEEE802.3af, Standard PoE |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86") |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-KIS613-S Datasheet |
| Hikvision DS-KIS613-S Quick Start Guide |
| Hikvision DS-KIS613-S User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
