Hikvision DS-KV6114-MWBE1 4MP Metal Villa Door Station, Call Button, Bluetooth
Hikvision
- 2 Locks Control
- Multiple Unlocking Methods
- 3 year guarantee
The Hikvision DS-KV6114-MWBE1 is a 1-button IP villa door station that uses multiple unlocking methods, including Prox Card, Bluetooth and Hik-Connect (Read more)
PRODUCT DETAILS
The Hikvision DS-KV6114-MWBE1 is a 1-button IP villa door station designed for modern homes and small businesses. With its sleek metal housing, built-in camera, and Wi-Fi support, it offers both convenience and security by allowing users to see, speak to, and grant access to visitors directly from an indoor monitor or mobile device via the Hik-Connect app.
It features multiple unlocking methods, including Prox Card, Bluetooth, Hik-Connect, indoor station, and can be used to control 2 door locks.
Features:
- 4MP higher resolution with 150° viewing angle
- 2 locks control
- Multiple unlocking methods: Card, Bluetooth, Hik-Connect, indoor station
- Video recording and playback via Hik-Connect or PC web
- Standard IEEE802.3at PoE power supply
| System
parameters |
|
| Operation system |
Linux |
| ROM |
4 GB |
| RAM |
512 MB |
| Processor |
Embedded high performance
processor |
| Video parameters |
|
| Lens |
1 |
| Resolution |
Main stream: 4MP(2688x1520P),
2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| FOV |
Horizontal: 150° Vertical: 75° |
| Wide dynamic range (WDR) |
Support 120 dB |
| Supplement light |
IR light, up to 3 m |
| Video compression standard |
H.264; H.265; MJPEG |
| Audio parameters |
|
| Audio input |
1 built-in omnidirectional microphone |
| Audio compression standard |
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1,
G.729 |
| Audio output |
1 built-in loudspeaker |
| Audio compression bitrate |
8~64 Kps |
| Audio quality |
Noise suppression and echo cancellation |
| Volume adjustment |
Adjustable |
| Audio Performance |
50cm 80dB (Maximum: 50cm 83dB) |
| Audio Sample Rate |
16kHz、8kHz |
| Capacity |
|
| User capacity |
2000 |
| Face capacity |
N/A |
| Card capacity |
2000 |
| Network
parameters |
|
| Network protocol |
TCP/IP, RTSP, ipv6,onvif |
| Wi-Fi |
2.4G |
| Bluetooth |
Supported |
| 3G/4G |
N/A |
| Wi-Fi Protocol |
IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax |
| Wi-Fi Type |
Wi-Fi 6 |
| Authentication |
|
| Authentication mode |
Card, Bluetooth, Hik-Connect, indoor station |
| Card type |
Mifare 1 |
| Card reading frequency |
13.56 MHz |
| Card reading distance |
M1card：2 to 2.5 cm |
| Application |
|
| Mobile APP |
Hik-Connect |
| Motion Detection |
Support |
| Playback |
Support |
| Call Elevator |
Support |
| Smart Features |
Sound Classification Detection: Scream, Glass Breaking Sound,
Crying Sound (Recommended Detection Distance: 3 m) |
| Device
interfaces |
|
| Alarm input |
4, (include Exit button and Door contact input) |
| Network interface |
1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER |
1 |
| Exit button |
1 |
| RS-485 |
1 |
| USB |
N/A |
| Wiegand |
N/A |
| TF card |
Support TF card, up to 128 G |
| Alarm output |
N/A |
| Lock control |
2 relay, Max. 30 VDC 2 A |
| Door contact input |
1 |
| Supported TF Format |
FAT32, exFAT |
| General |
|
| Button |
1 physical button |
| Installation |
Surface mounting |
| Indicator |
3 |
| Weight |
Without package: 273 g (0.61 lb),With package: 431g (0.95
lb) |
| Protective level |
IP65 |
| Working temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity |
10% to 90% (no-condensing) |

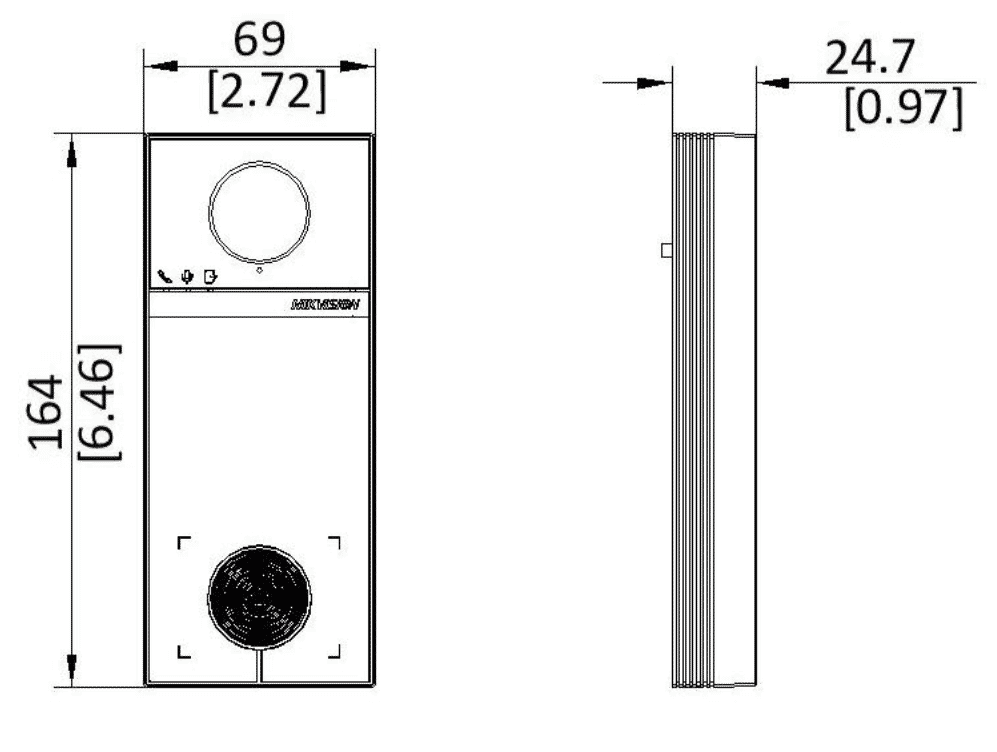

| Dimension (W × H × D) |
164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97") |
| Battery |
N/A |
| Application environment |
Outdoor |
| Power consumption |
＜ 10 W |
| Power supply |
12 VDC, 1.2 A IEEE 802.3 at, standard PoE |
| Language |
English, Arabic, European French, Russian, European Spanish,
Latin American Spanish, Italian, German, Polish, Turkish,
Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian,
Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek,
Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian,
Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese,
Traditional Chinese (Taiwan), Latin American Spanish |
| Material |
Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass Metal Version Metal Panel: Aluminium Alloy |
| Power Supply Output |
Max. 12 VDC, 1 A |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-KV6114-MWBE1 Datasheet |
| Hikvision DS-KV6114-MWBE1 Quick Start Guide |
| Hikvision DS-KV6114-MWBE1 User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
