HiLook VI-K43P IP Video Intercom Kit
HiLook by Hikvision
- 2MP HD Camera
- PoE Powered
- 3 year guarantee
The HiLook VI-K43P is a complete IP video intercom kit designed for simple reliable door entry control in residential & light commercial installations (Read more)
PRODUCT DETAILS
The HiLook VI-K43P is a complete IP video intercom kit designed for simple, reliable door entry control in residential and light commercial installations. With one-touch calling, Hik-Connect app mobile control, and standard PoE power, it’s ideal for installers who want a clean, modern intercom system with quick setup and dependable performance.
This kit includes a HiLook door station (VI-V400W) and indoor station (VI-H460W), providing clear two-way audio/video communication for day-to-day access management.
Alongside the 2MP HD camera, the villa doorbell station features noise suppression and echo cancellation, access control functions, tamper proof and an IR range up to 3 metres.
Kit includes 2 x 12v power supplies - Alternatively the VI-K43P can be powered

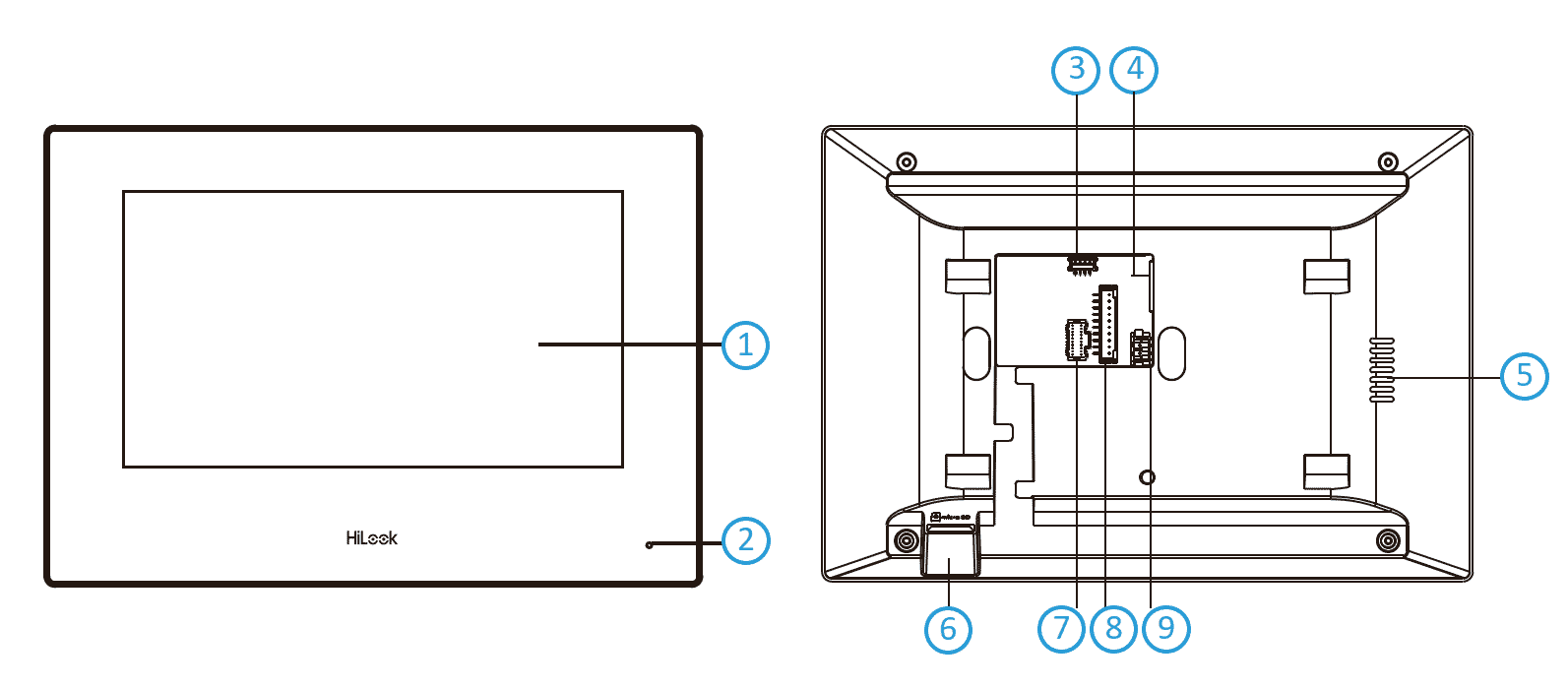

Interface
| No | Description |
|---|---|
| 1 | Screen |
| 2 | MIC |
| 3 | Serial Port (For Debugging Use
Only) |
| 4 | Network Interface |
| 5 | Loudspeaker |
| 6 | TF Card Slot |
| 7 | Alarm Terminal |
| 8 | Reserved |
| 9 | Power Interface |

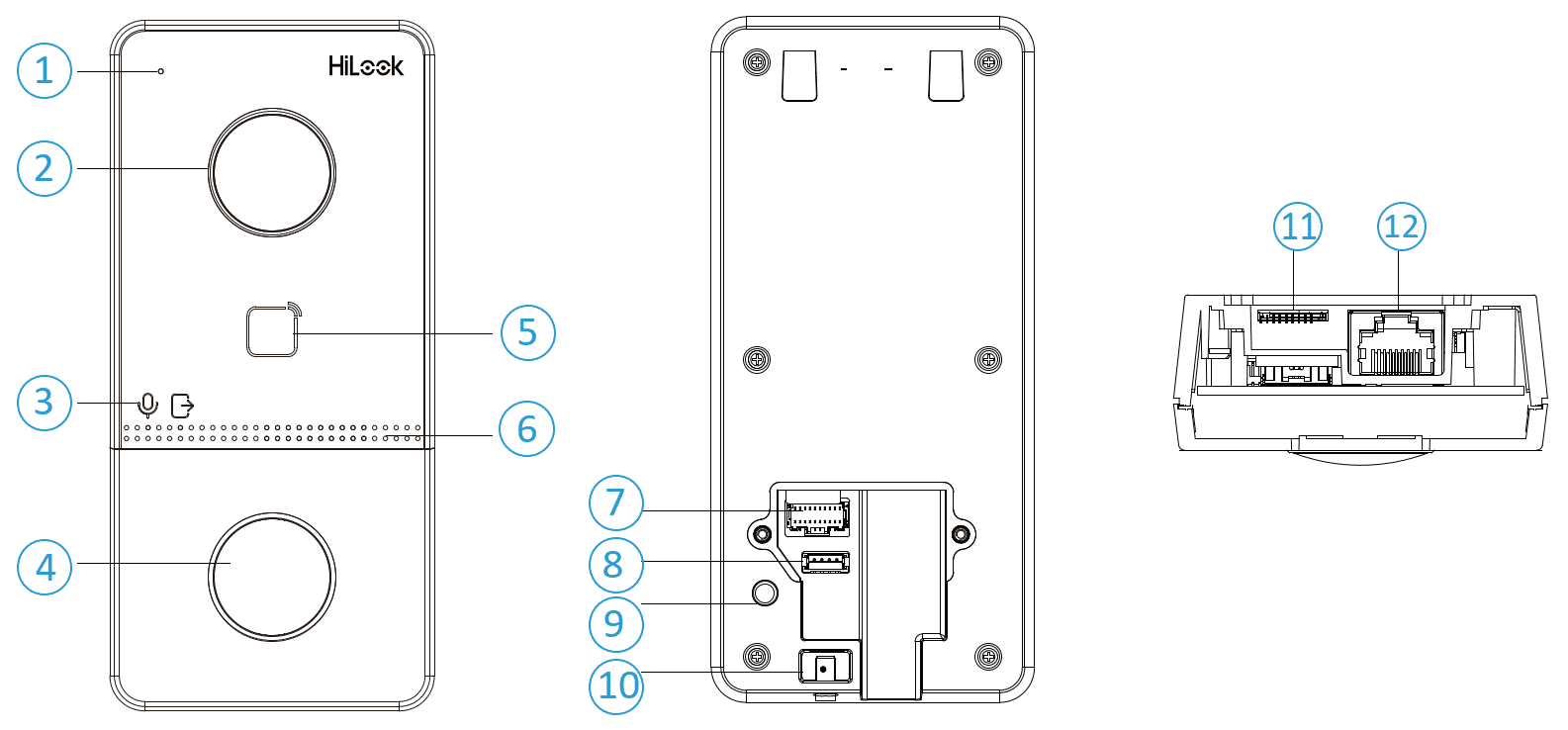

| No | Description |
|---|---|
| 1 | Microphone |
| 2 | Camera |
| 3 | Indicator |
| 4 | Button |
| 5 | Card Reading Area |
| 6 | Loudspeaker |
| 7 | Terminals |
| 8 | Debugging Port |
| 9 | TAMPER |
| 10 | Set Screw |
| 11 | TF Card Slot(Reserved) |
| 12 | Network Interface |
Features:
- IP video intercom kit with one call button for easy visitor calling
- Hik-Connect app control for convenient mobile viewing and interaction
- PoE powered for simplified installation and reduced cabling
- IP65-rated door station for outdoor durability
- 2MP HD camera with up to 1080p video stream options
- IR illumination (up to 3 m) for low-light visibility at the entrance
- 120 dB WDR support to handle challenging lighting (e.g. bright backlight)
- Built-in mic and speaker with noise suppression/echo cancellation for clear conversations
| Door station/System parameters | |
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 256MB |
| Door station/Video parameters | |
| Supplement light | IR light, up to 3 m |
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 640 × 480p |
| Lens | 2MP HD camera |
| Wide dynamic range (WDR) | Support 120 dB |
| FOV | Horizontal: 131° Vertical: 78° |
| Video compression standard | H.264 |
| Motion detection | Support |
| Door station/Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Door station/Network parameters | |
| Network protocol | TCP/IP, RSTP |
| Wi-Fi | / |
| Door station/Device interfaces | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 4 |
| RS-485 | 1 |
| Lock control | 1 relay, Max. 30 VDC 2 A |
| Exit button | 1 |
| Door contact input | 1 |
| Door station/General | |
| Button | 1 physical button(s) |
| Power consumption | ＜ 10 W |
| Working temperature | -40 °C to 55 °C(-40 °F to 131 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension | 138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1") |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Application environment | Outdoor |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Weight | Net weight: 0.190 kg Gross weight: 0.414 kg |
| Indoor station/System parameters | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station/Display parameters | |
| Display screen | 7-inch colourful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Volume adjustment | Adjustable |
| Indoor station/Capacity parameters | |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Indoor station/Network parameters | |
| Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Indoor station/Device interfaces | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Alarm output | 2 |
| TF card | Max to 128 G |
| Indoor station/General | |
| Power consumption | ≤ 8 W |
| Power supply | 12 VDC,IEEE802.3af, Standard PoE |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Installation | Wall mounting, table mounting |
| Application environment | Indoor |
| Videos |
|---|
HiLook Introduction Video| Files |
|---|
| HiLook VI-K43P Datasheet |
| HiLook VI-K43P Quick Star Guide |
| HiLook VI-K43P User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
