Hikvision DS-KD-KK/S Stainless Steel Intercom 6 Button Module
Hikvision DS-KD-KK/S Stainless Steel Intercom 6 Button Module
swipe to view images
fullscreen

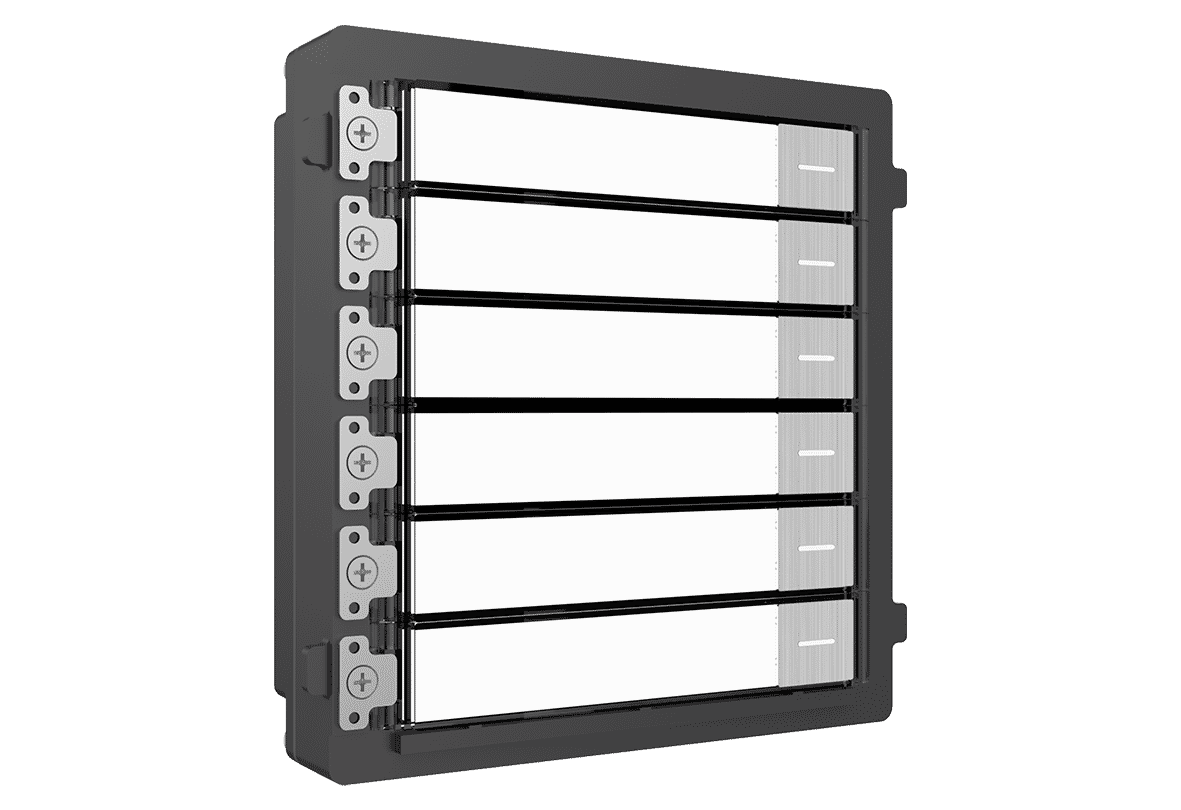

Hikvision DS-KD-KK/S Stainless Steel Intercom 6 Button Module

Rated 0/5   0 reviews | 0 Questions
Hikvision logo Hikvision
  • One touch resident dial
  • Backlight compensation
  • 3 year guarantee
Link to videos

The Hikvision DS-KD-KK/S is a gen 2 intercom station for use with Hikvisions modular video intercom system with 6 name tags & one touch call buttons (Read more)

Loading
In stock
Delivery from £3.98
Order before 15:30 for delivery from Tuesday 17th December
Product CodeHIK0589
ModelDS-KD-KK/S
More Information
RELATED PRODUCTS

PRODUCT DETAILS

The Hikvision DS-KD-KK/S is an IP name tag and call button module for use with Hikvisions modular video intercom system. It has 6 one touch call buttons with name tags to dial residents in each apartment.


For use with DS-KD-ACW/S Stainless Steel surface mount bracket which can be found here

Application


Interface


Number Description
1 Call Button
2 Nametag
3 Module-connecting Interface (output)
4 Module-connecting Interface (input)
5 Debug Port

Features:

  • Modular door station Name tag unit
  • 6 call buttons, including 4 button covers,
  • IP65 Rated
  • Dial the resident at one-touch
  • Backlit for use in low light conditions
  • Easy to fit and extend
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
System parameters
Operating system Embedded Linux operation system
ROM /
RAM /
CPU Embedded MCU Processor
Display parameters
Screen size /
Operation method /
Type /
Resolution /
Video parameters
Lens /
Resolution /
FOV /
WDR /
Supplement light /
Video compression standard /
Audio parameters
Audio compression standard /
Audio input /
Audio output /
Audio compression bitrate /
Audio quality /
Volume adjustment /
Capacity
User capacity /
Face capacity /
Card capacity /
Linked network camera capacity /
Network parameters
Communication protocol TCP/IP, RTSP
Wired network 10/100 Mbps self-adaptive Ethernet
Wi-Fi standard /
Bluetooth version /
3G/4G standard /
Device interfaces
Alarm input /
Network interface /
TAMPER /
Exit button /
RS-485 2
USB /
Wiegand /
TF card /
Alarm output /
Lock control /
Door contact input /
Power interface /
Performances
Multi-factor authentication /
General
Button 6
Installation Flush mounting, surface mounting
Indicator /
Weight 529 g (with packaging)
265 g (without packaging)
Protective level IP65, IK07
Working temperature -40° C to +55° C (-40° F to 131° F)
Working humidity 10% to 95%
Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Battery /
Power supply 12 VDC (powered for other module)
Application environment Outdoor
Power consumption 0.8W
USEFUL FILES AND LINKS
Videos
Files
  Hikvision DS-KD-KK/S User Manual
  Hikvision DS-KD-KK/S Datasheet
Links*
Hikvision DS-KD-KK/S
Hikvision website
Hikvision support site
