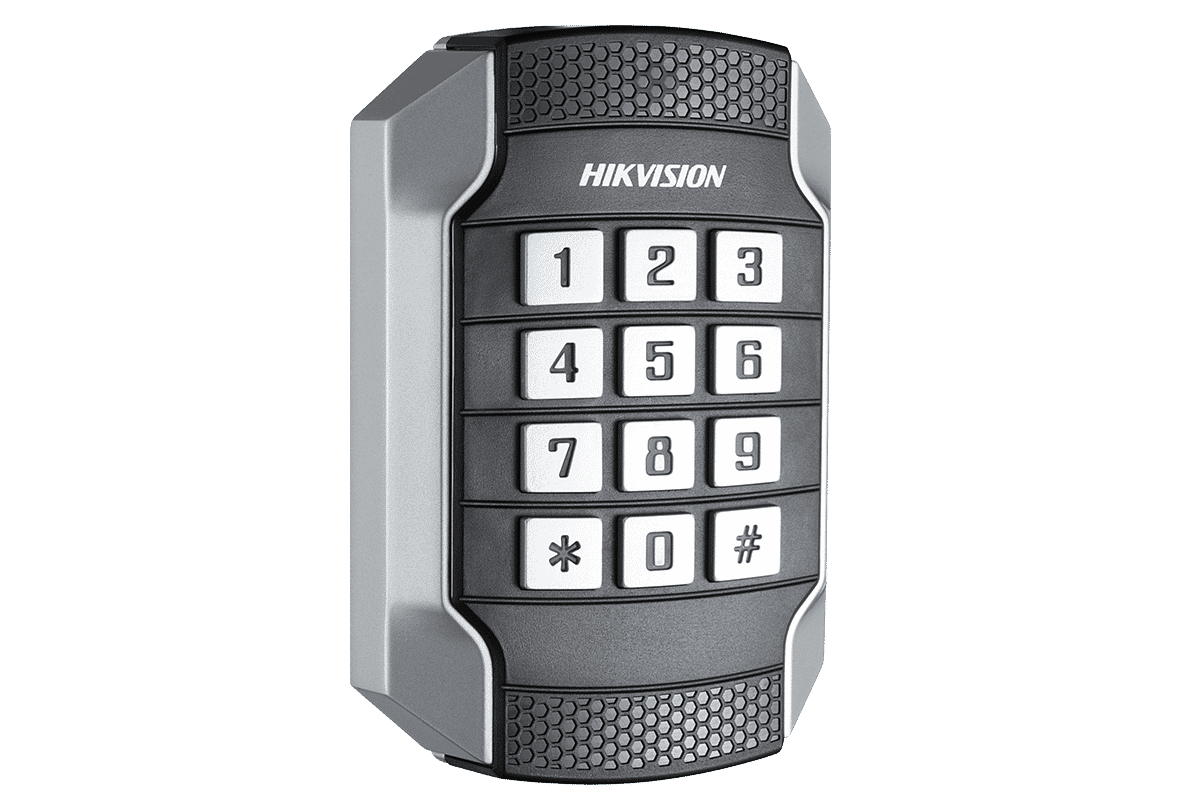

Hikvision DS-K1104MK Anti Vandal Prox Reader with keypad
- IK10 and IP65
- RS485 & Wiegand
- Mifare cards
Hikvision DS-K1104MK Vandal Resistant Proximity Card Reader with Keypad
The DS-K1104MK is Hikvisions vandal version of the proximity card reader with integrated keypad. Ideal for use where there may be a risk of damage from vandalism or where the reader may be exposed to the weather as it benefits from enhanced protection IK10 and an IP65 ratings. These readers can be used in conjunction with the Hikvision door controllers and intercoms via RS485 control and can also be integrated with third party systems via Wiegand protocol.
- PC + zinc-alloy shell with IK10 and IP65 rating
- Equipped with a 32-bit high-speed processor
- Built-in audible beeper
- LED indicator
- DIP switch configuration
- RS485 and Wiegand(W26/W34) protocols
- Tamper protection
- Online upgrade capability (under the 485 communication mode), and card reader can downgrade to pre-upgrade status in case of an unsuccessful upgrade
- Watchdog function for self diagnostic and repair, to ensure reliable operation
- Dust and water resistance to IP65
- Reads Mifare cards and obtains the card No.
|ID Settings:||Setting by the DIP Switch on the Main Board|
|Card Reading Frequency:||13.56MHz|
|Card Reading Distance:||≤50mm (≤1.97")|
No Keypad (DS-K1104M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
|LED Indicator:||Power Indicator; Status LED Indicator|
|Installation:||Applied for 86 & 120 Gang Box|
|Protection Level:||IP 65|
|Working Humidity:||10% to 90% (Non-Condensing)|
|Working Temperature :||-20°C to +65°C (-4°F to +149°F)|
|Dimensions (L×W×H):||118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91")|
Product variants available
|Access Control Guide|
|Hikvision support site|
