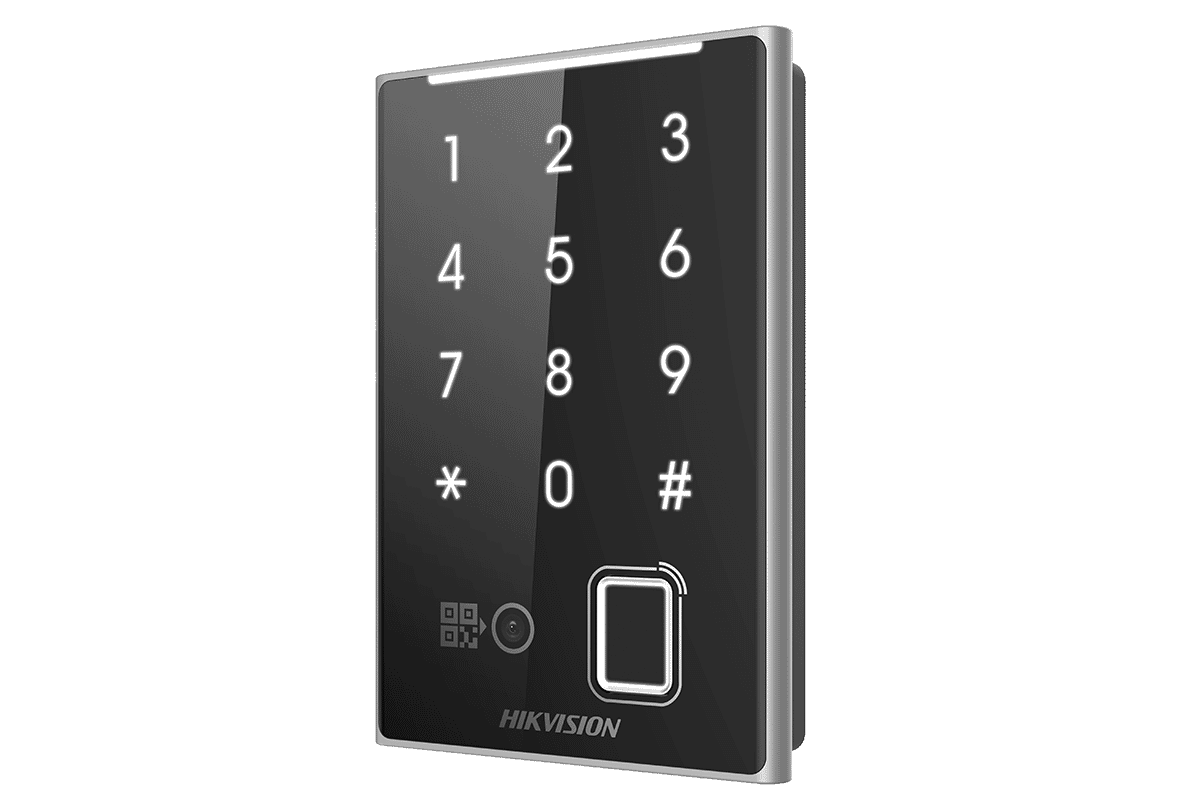

Hikvision DS-K1109DKFB-QR Access Control Card Reader Keypad & QR Code Security
Hikvision
- Card Reader & Keypad
- Fingerprint Scanner
- 3 year guarantee
The Hikvision DS-K1109DKFB-QR is a prox card reader, fingerprint scanner & keypad that is designed to be used as part of an access control system. (Read more)
PRODUCT DETAILS
The Hikvision DS-K1109DKFB-QR is a prox reader, fingerprint scanner & keypad that is designed to be used as part of an access control system when used with the Hikvision range of door controllers or third party Wiegand controllers. It supports M1 card, DESfire card and Felica card types, and is IP65 rated against dust and water ingress, making it ideal for outdoor use.
Features:
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading DESfire card, Felica card and M1 card
- Supports authentication via card, password, fingerprint and QR code
- Supports bluetooth module (when connecting by RS-485)
- Tamper-proof function
- Max. 5000 fingerprint capacity
| Interface | |
| TAMPER | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Capacity | |
| Fingerprint capacity | 5000 |
| Authentication | |
| Card type | M1 card; DESfire card; Felica card |
| General | |
| Power supply | 12 VDC |
| Power consumption | With load: ≤ 14 w Without load: ≤ 4 w |
| Working temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Working humidity | 0 to 90% (no condensing) |
| Protective level | IP65 |
| Dimensions | 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71") |
| Installation | Wall mounting |
| ≤ 1 kg (2.20 lb) | |
| Buzzer | Support |
| Function | |
| Barcode recognition | Support Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128 |
| QR code recognition | Support (when connecting by RS-485) |
