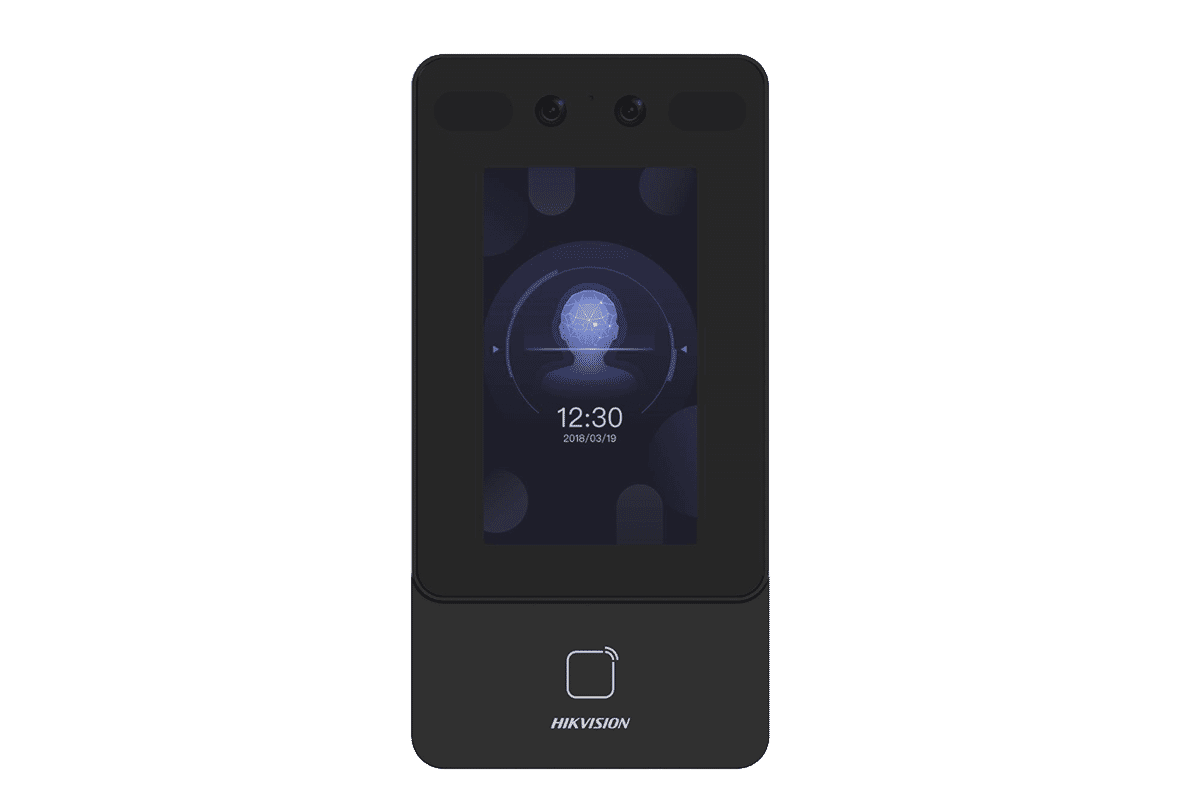

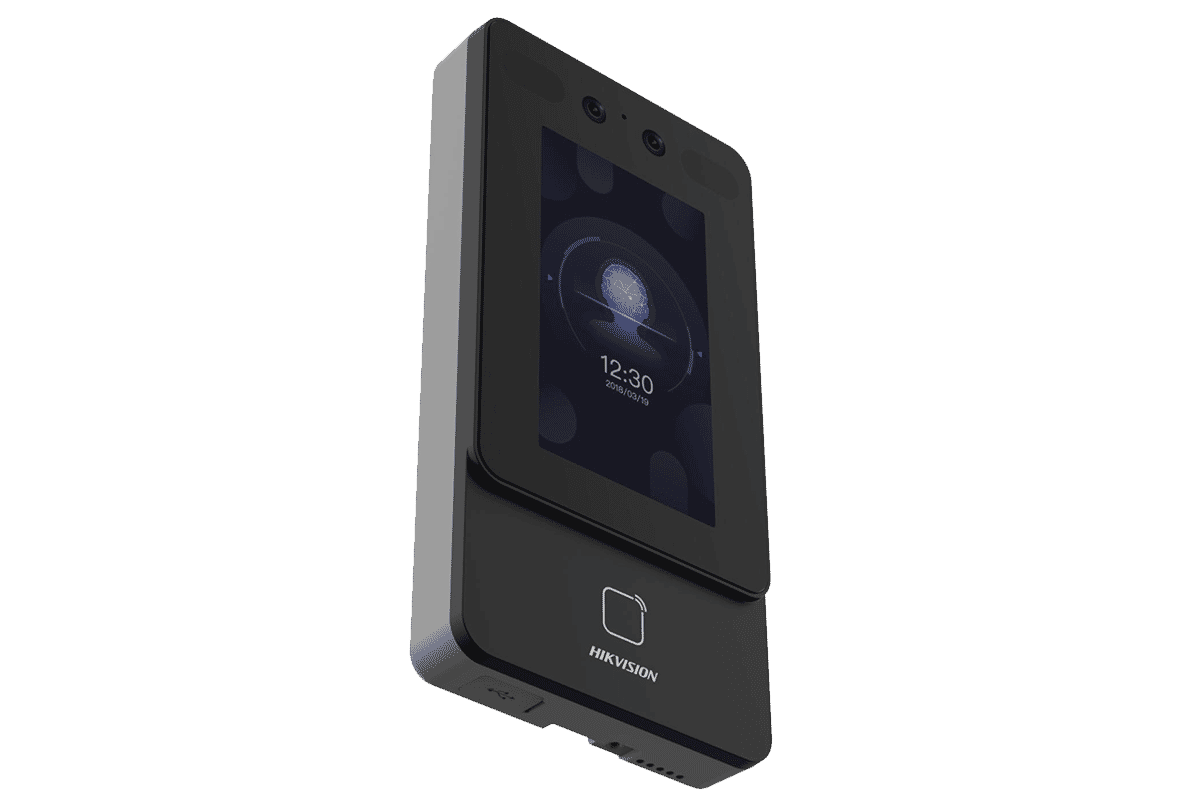

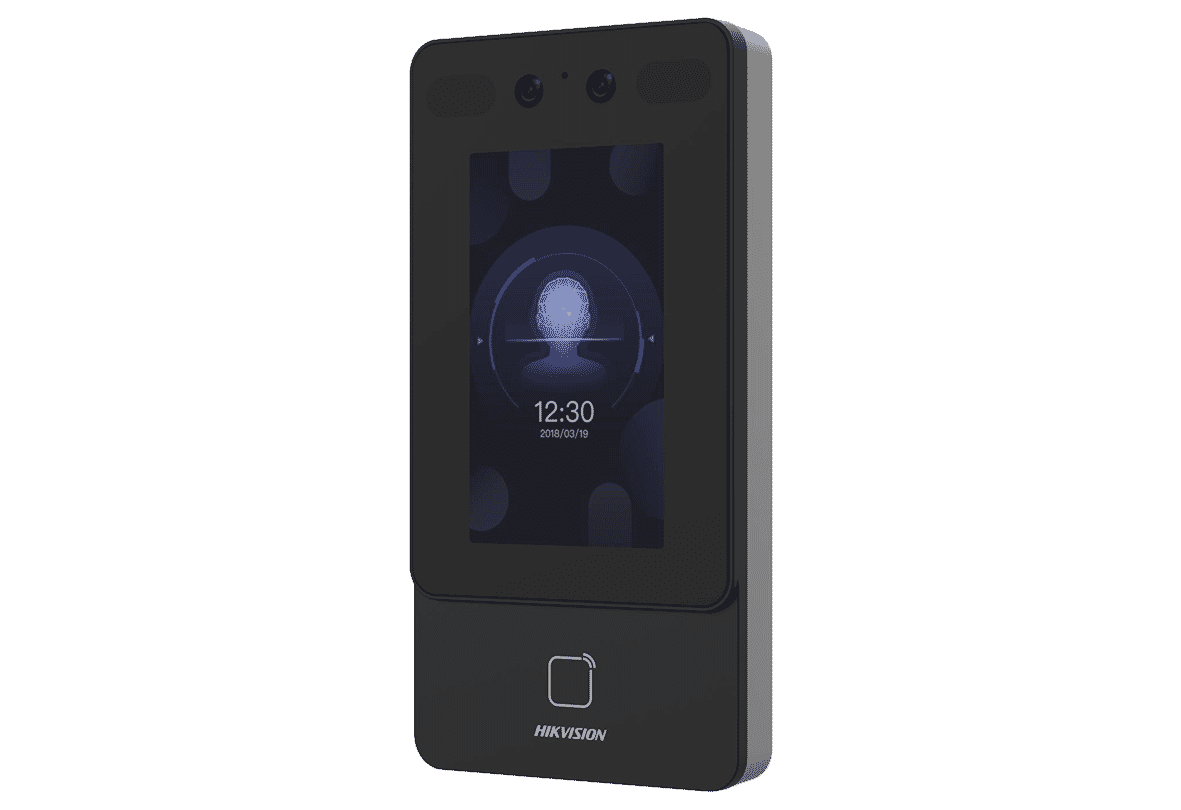

Hikvision DS-K1T342MWX-E1 4.3 Inch Face Recognition Touch Screen Terminal
Hikvision
- 12 VDC or PoE
- 4.3-inch LCD Touch Screen
- 3 year guarantee
The Hikvision DS-K1T341CMW is a touch screen facial recognition terminal and card reader that uses intelligent AI algorithms to recognise a human face (Read more)
PRODUCT DETAILS
The Hikvision DS-K1T342MWX-E1 is a PoE (Power over Ethernet) face recognition terminal that adopts AI deep learning algorithms that help detect a human face and grant or deny access based on factors such as clearance status or if a face mask is being worn. It features a 4.3" LCD touch screen, a Mifare card reader, and 1,500 face capacity, 3,000 card capacity, and 150,000 event capacity. 2-way audio allows for non-face-to-face communication and can be used to prompt the use of a face mask before entry is granted.
Not only does the DS-K1T342MWX-E1 provide top level security, but it also ensures a safe environment against the spread of germs. Unlike conventional push-button or fingerprint scan access control systems, the DS-K1T341CMW is completely contact free, and can scan a face in a fraction of a second, reducing the number of users waiting to gain entry. Alerts can be set when the camera spots that a mask is not being worn and can sound prompts and refuse entry until the mask is in place. This can log an event on the recorder and create a report showing failed access requests.
Features:
- Max.1500 faces capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face with mask recognition
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
- Supports platform-applied personal PIN and device-set personal PIN
| System | |
| Operation system | Linux |
| Display | |
| Dimensions | 4.3-inch |
| Resolution | 272 × 480 |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | × 2 |
| Video standard | PAL (Default) and NTSC |
| Network | |
| Wired network | 10 M/100 M self-adaptive |
| Wi-Fi | Support |
| Interface | |
| PoE | IEEE802.3at, standard PoE |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3,000 |
| Face capacity | 1,500 |
| Event capacity | 150,000 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| Face recognition duration | ＜ 0.2 s |
| Face recognition accuracy rate | ＞99% |
| Face recognition distance | 0.3 to 1.5 m |
| General | |
| Power supply | Power input: Power interface (power adapter included, 12 VDC/1
A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock) |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |

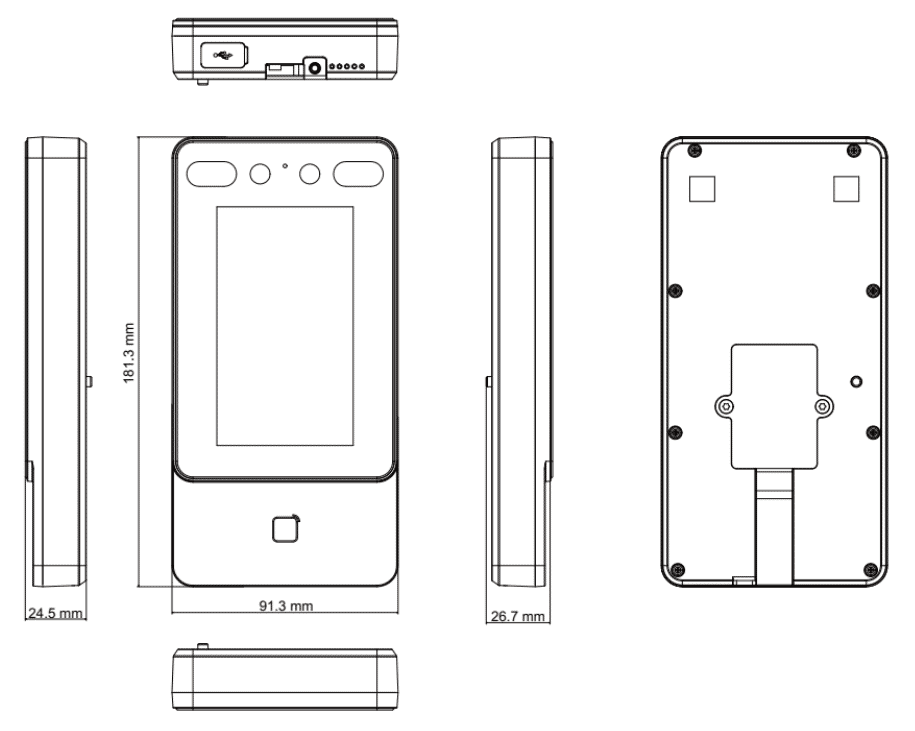

| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
| Installation | Wall Mounting |
| Protective level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
| Weight | Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs) |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-K1T342MWX-E1 Datasheet |
| Hikvision DS-K1T342MWX-E1 Quick Start Guide |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
