Hikvision DS-K1T671TMW Face Recognision Terminal
- Wired or Wireless
- 7-inch LCD Touch Screen
- 3 year guarantee
Hikvision DS-K1T671MW wireless Wi-Fi Face Recognition Access Terminal supports up to 50,000 faces, face mask wearing, card reading and 2-way audio. (Read more)
PRODUCT DETAILS

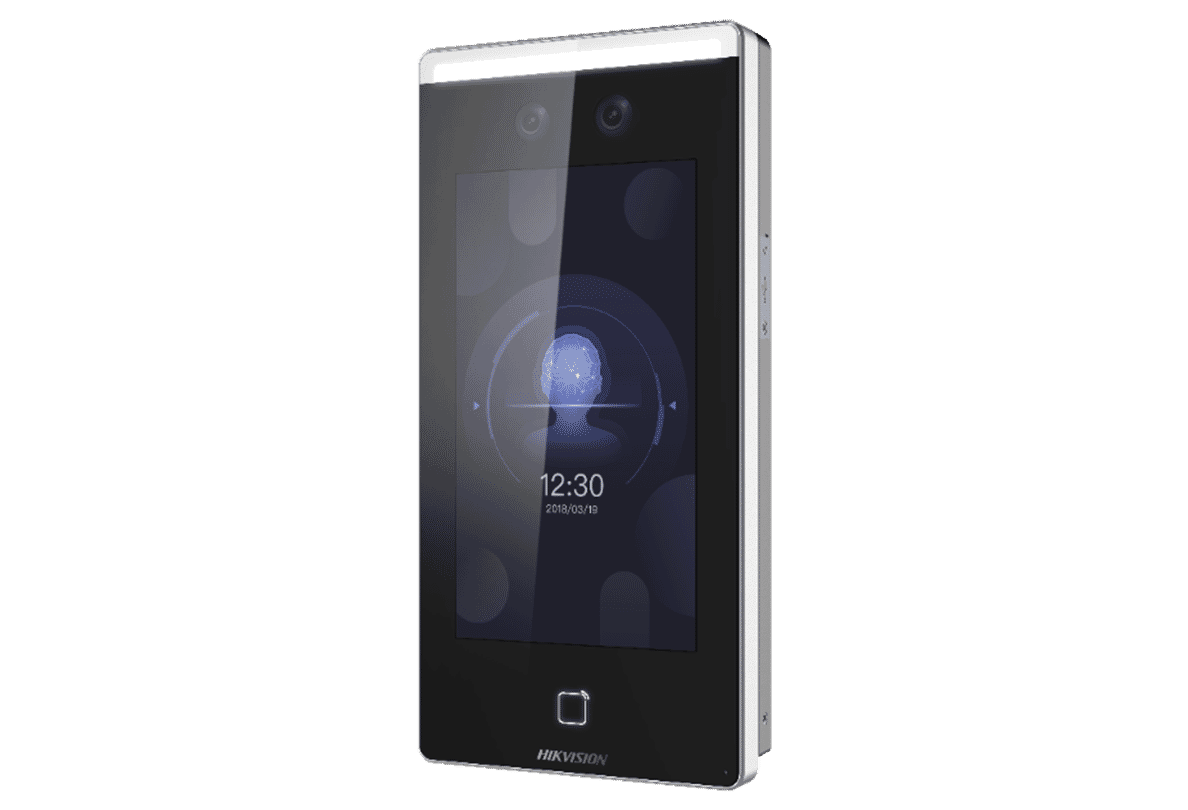

The Hikvision DS-K1T671MW is part of their MinMoe facial recognition terminals that uses intelligent AI algorithms to recognise a human face and grant or deny access based on factors such as clearance status or if a face mask is being worn. It features a 7" LCD touch screen, a Mifare card reader, and a 2MP wide angle lens that can scan a face up to 3 metres away and compare it to a database of up to 6000 images. 2-way audio allows for non-face-to-face communication and can be used to prompt the use of a face mask before entry is granted.
Not only does the DS-K1T671MW provide top level security, but it also ensures a safe environment against the spread of germs. Unlike conventional push-button or fingerprint scan access control systems, the DS-K1T671MW is completely contact free, and can scan a face in a fraction of a second, reducing the number of users waiting to gain entry. Alerts can be set when the camera spots that a mask is not being worn and can sound prompts and refuse entry until the mask is in place. This can log an event on the recorder and create a report showing failed access requests.
The DS-K1T671TMW can either be hard wired or added to the network Wi-Fi as a wireless device, giving more flexibility than previous models.
Features:
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- 7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
- Face recognition distance (without face mask): 0.3 m to 3 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%
- Max. 50,000 faces, Max. 50,000 cards
- Two-way audio with client software,indoor station, and main station
- Supports TCP/IP,Wi-Fi
- Configuration via the web client
- Supports ISAPI and ISUP5.0 protocol
- IP65
| System | |
| Operation system | Linux |
| general | |
| FOV | HFOV= 46°;VFOV=87° |
| Display | |
| Dimensions | 7-inch |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | 2 |
| Audio | |
| Tone quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | 10 M/100 M/1000 M self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| IO input | 2 |
| IO output | 1 |
| Power interface | 2-pin |
| TAMPER | 1 |
| USB | 2 |
| Capacity | |
| Card capacity | 50,000 |
| Face capacity | 50,000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 0 to 5 cm |
| Face recognition duration | < 0.2 s per person |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition distance | 0.3 to 3 m (Without face mask) |
| General | |
| Power supply method | 2 pin connecter |
| Power supply | 12 VDC/ 2 A |
| Working temperature | -30 ℃ to 60 ℃ (-22 °F to 140 °F) |
| Working humidity | 10 to 90% (No condensing) |
| Dimensions | 239 mm × 116.5 mm × 33 mm (9.4" × 4.6" × 1.3") |
| Protective level | IP65 |
| Installation | Wall mounting |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil) |
| Platform | Hik-ProConnect and HikCentral Professional |
| Function | |
| Face anti-spoofing | Support |
| Advertisement | Support |
| Audio prompt | Support |
| Time synchronization | Support |
