EZVIZ CS-DB1C/KIT Smart Video Doorbell Kit
EZVIZ
- AI Person Detection
- 170° Field of View
- Night Vision

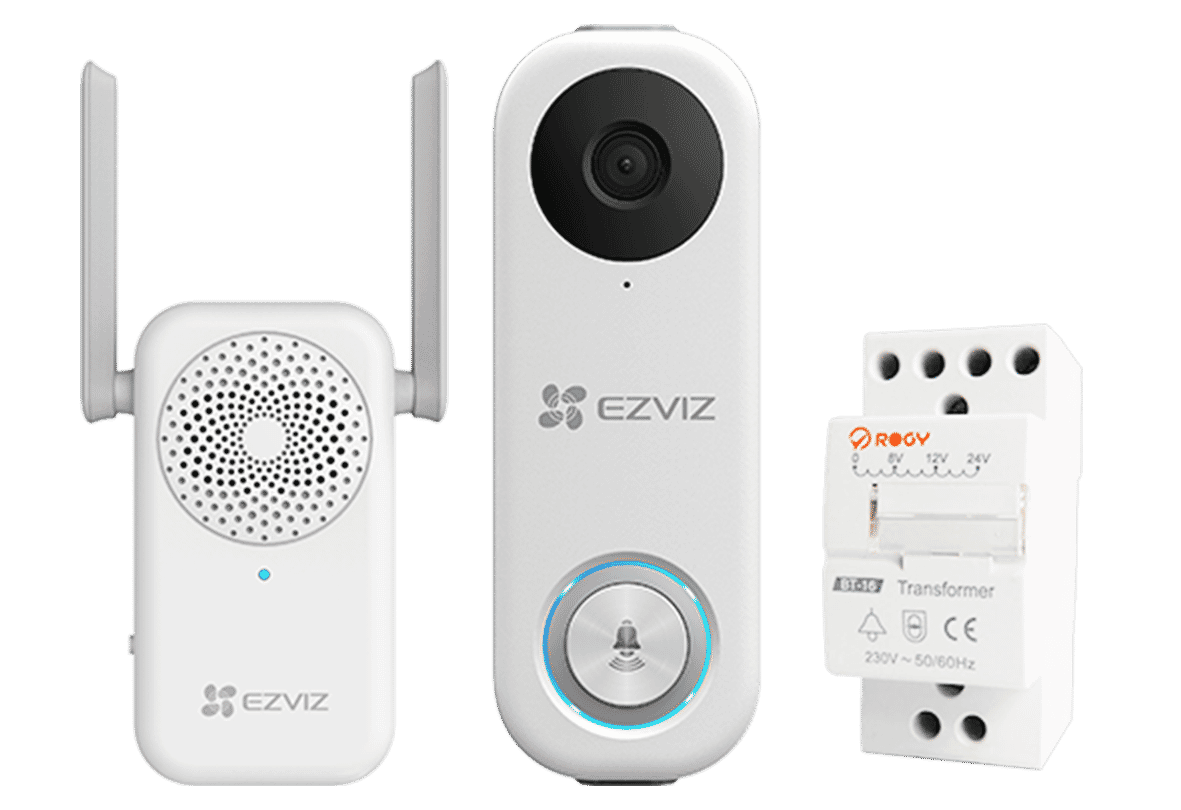

The EZVIZ DB1C/KIT is a smart video doorbell kit comprising of a DB1C Wi-Fi video doorbell, a plug in chime with built-in siren, & a 230v transformer. (Read more)
PRODUCT DETAILS
The EZVIZ DB1C/KIT is a smart video doorbell that connects to your home Wi-Fi and lets you see and communicate with visitors at the door using a smart device from wherever you are. The DB1C is equipped with a high resolution 2 Mega-pixel camera that allows you to see clearly day or night who is at the door and also can be used for recording video when movement is detected. The smart AI feature can be set to only notify you when a human form is detected and will ignore movement from other sources such as animals and cars.
In addition to the video doorbell, the DB1C/KIT also comes with a plug in chime and power supply transformer.
Clever Artificial Intelligence
With its AI algorithm onboard, the DB1C intelligently
detects a person’s movement, ensuring that you only
receive notifications when a human form is detected.
The DB1C can differentiate between an alert event, such as a person coming to the door, and a non alert event, such as an animal walking past or branches moving in the wind.
This greatly reduces the amount of false alarm notifications that you receive.
You can turn off this function if you need other motion alerts such as a car pulling up to the property.
Don't Miss Any Detail
The EZVIC DB1C features a 170° vertical view fish eye camera that reliably records everything you need to see.
The 1080P HD camera captures everything you need to see, from the top of your visitors head to packages left on the door mat, all with minimal distortion.
The 2 way talk function also allows you to communicate with the person from wherever you are in real time.
Access Anywhere with Mobile App
The EZVIZ DB1C can be used with the easy to use EZVIZ App on your phone or tablet which lets you see, hear and communicate with visitors from anywhere.
The App can also be used to notify you when motion is detected and also capture still images and video direct from the doorbell.
When a visitor presses the doorbell the App will almost immediately alert you and allow you to answer the call.
The EZVIZ Apps are available for recent versions of Android and iOS.
Features:
- 2MP 1080P HD Wi-Fi Video Doorbell
- 170° Vertical view lens
- AI powered person detection
- 2.4 GHz & 5 GHz dual band Wi-Fi
- Two way audio
- 5 Metre IR distance for night vision
- Rated IP65 against dust and water ingress
- Supports micro SD card
- H.265 Compression technology
- Multi storage functions
- Remote viewing and control via the EZVIZ smartphone app
| Camera |
|
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Lens |
2.1 mm @ F2.4, view angle: 170°
(Vertical) |
| Day & Night |
IR-cut filter with
auto-switching |
| Night Vision |
Max. 5 m (16.4 ft.) |
| Video |
|
| Max. Resolution |
1536 x 1536 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Video Compression |
H.265 / H.264 |
| Interface |
|
| Storage |
H.264 / H.265 |
| Audio Input |
Ultra-HD; HD; Standard. Adaptive bit
rate |
| Audio Output |
Built-in high-power speaker |
| Reset button |
Yes |
| Network |
|
| Intelligent Alarm |
Motion detection (with person-shape
detection) |
| Video Intercom |
Long-distance video two-way
talk |
| Protocol |
EZVIZ cloud proprietary
protocol |
| Interface Protocol |
EZVIZ cloud proprietary
protocol |
| Wi-Fi |
|
| Wireless |
IEEE802. 11a/b/g/n, 2.4 and 5 GHz dual
bands |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK /
WPA2-PSK |
| General |
|
| Working Temperature |
-10 °C to 45 °C (14 °F to 113
°F) |
| Working Humidity |
95% or less (non-condensing) |
| Power Supply |
AC 12 V to 24 V (220 mAh backup
battery) |
| IP Grade |
IP65 |
| Weight |
102 g (3.60 oz) |
| Dimensions |
128.3 x 46.3 x 19.3 mm (5.05 x 1.82 x
0.76 inch) |
| Packaging Dimensions |
172.5 x 102 x 97 mm (6.79 x 4.02 x 3.82
inch) |
| Chime Specifications | |
| Model |
CS-CMT-CHIME |
| Network |
|
| Protocol |
EZVIZ cloud proprietary
protocol |
| Interface Protocol |
EZVIZ cloud proprietary
protocol |
| Interface |
|
| Storage |
No |
| Wired Network |
Does not support |
| Power Supply Interface |
EU/UK Standard Plug |
| Wi-Fi |
|
| Wi-Fi Standard |
IEEE802.11b / g / n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK /
WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 144
Mbps |
| Antennas |
Dual External Antennas |
| General |
|
| Operating Conditions |
Temperature: -10 °C to 40 °C (14 °F to
104 °F ), Humidity: 95 % or less (non-condensing) |
| Power Supply |
100V - 220V AC |
| Power Consumption |
Max 0.6 W |
| Dimensions |
100 × 55 × 35 mm (3.94 × 2.17 × 1.38
inch) |
| Weight |
120 g (4.23 oz) |
| Transformer
Specifications |
|
| Model |
CS-CMT-A0-Transformer |
| Technical Data |
|
| Rated Input Voltage |
230V AC |
| Rated Output Voltage |
8V, 12V, 24V AC |
| Rated Frequency |
50Hz |
| Rated Power Output |
8V: 10VA; 12V: 20VA; 24V:
30VA |
| Power Consumption |
1.15W |
| Service Period |
Continuous operating |
| Connection Terminals |
Pillar terminal with clamp |
| Connection Capacity |
Rigid conductor 10mm² |
| Installation |
On symmetrical DIN rail 35mm panel
mounting |
| Terminal Connection Height |
H=15.5mm |
| Operating Conditions |
-5°C to 40°C (23°F to 104°F), Humidity
95% or less |
| Dimensions |
35.3 x 86 x 68 mm (1.40 x 3.39 x 2.68
inch) |
| Net Weight |
323 g (11.4 oz) |
| In the box |
|
| In the box |
Doorbell Chime Standard Transformer Mounting Plate × 2 Plate Foam Power Kit Drill Bit Screwdriver Mounting Screw × 3 Anchor × 3 Wire connecter × 4 Security Screw Fixing Screw × 2 Wire Harness Fuse Wire U-shaped Wire × 2 Quick Start Guide |
| Certifications |
|
| Certifications |
UL / FCC / CE / WEEE / REACH /
RoHS |
