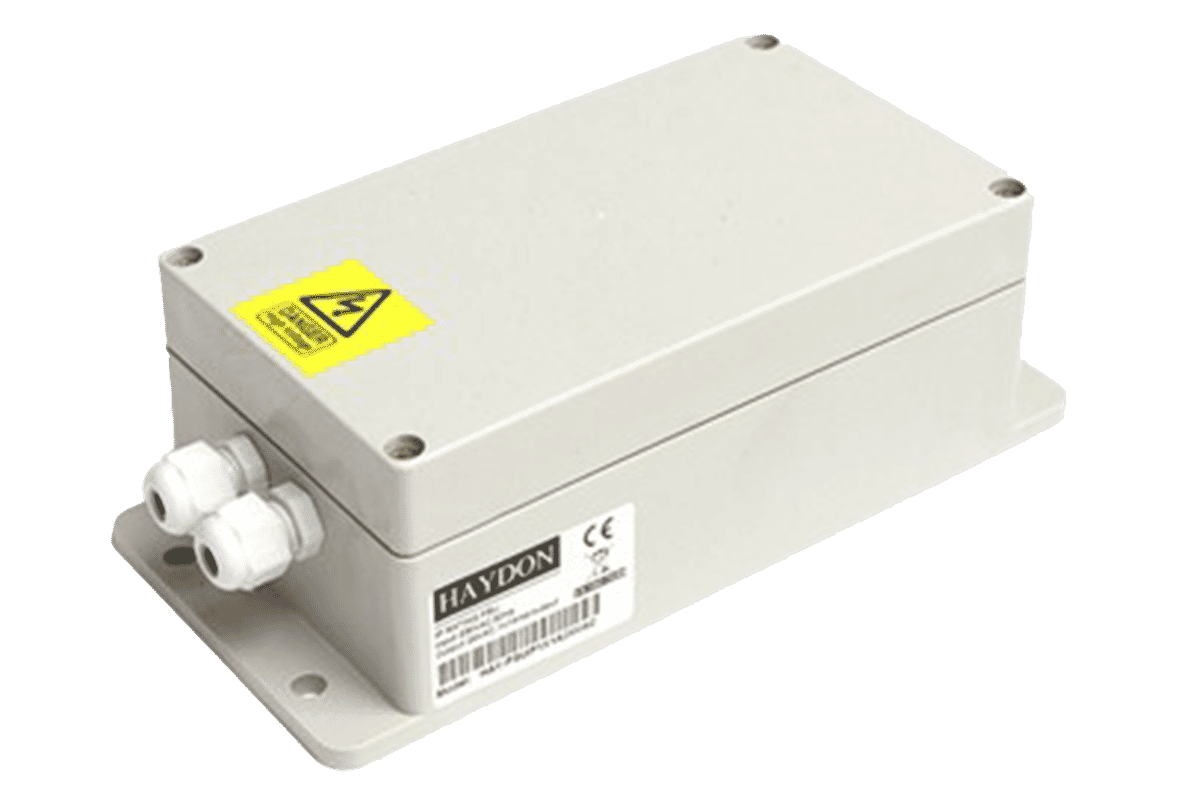

Haydon 24Vac 1A IP Rated Outdoor Power Supply
Haydon
- 24V AC Output
- IP66-Rated Enclosure
- 230V AC Input
The HAY-PSUIP1X1A24VAC is an IP66 rated outdoor 4 AMP 24V AC switch mode power encased in a durable grey polycarbonate housing. Ideal for CCTV instals (Read more)
PRODUCT DETAILS
The Haydon HAY-PSUIP1X1A24VAC is a 24V AC power supply unit designed for outdoor applications. Encased in a durable grey polycarbonate housing, it boasts an IP66 rating, ensuring robust protection against dust and water ingress, making it suitable for various environmental conditions
Features:
- 24V AC output at 1 amp
- IP66-rated enclosure
- Accepts a standard 230V AC input, compatible with common mains power supplies
- Ideal for powering CCTV cameras, security systems, and other equipment that operate on 24V AC
| Specifications |
|
| Input Range |
AC 230V rated 3Amp main fuse |
| Input Frequency |
50Hz |
| Output Current |
1 x 1A |
| Output Voltage |
24VAC |
| Fuse |
Auto-reset PTC Fuse for each output, rated
1.35Amp |
| Surge Protected |
Yes |
| Weight |
1kgs |
| Case Type |
Grey Polycarbonate |
| Operating Temp |
- 10ºC to 40ºC |
| Storage Temp |
- 20ºC to +50ºC |
| Operating Humidity |
0% to 95% RH non condensing |
| Size |
9.5cmx25cmx6.2cm (WxHxD) |
| IP Rating (when correctly installed) |
IP66 |
