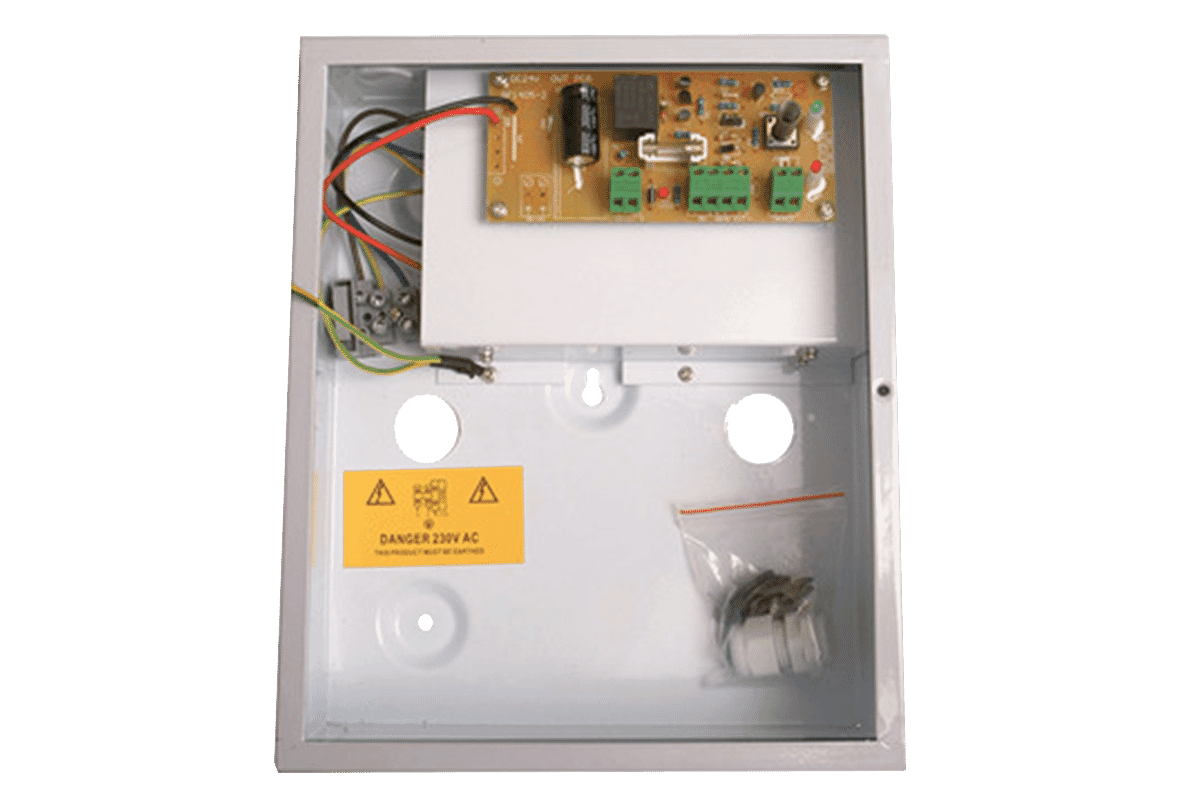

Haydon TR1 24V DC 1A BOXED PSU with Fire Alarm Input Relay
Haydon
- LED Indicators
- Lid Tamper
- High Efficiency
The Haydon HAY-PSU24V1ASMSP is a 24V DC, 1A metal boxed power supply unit engineered for applications requiring stable and reliable power delivery. (Read more)
PRODUCT DETAILS
The Haydon HAY-PSU24V1ASMSP is a 24V DC, 1A boxed power supply unit engineered for applications requiring stable and reliable power delivery. Its output is regulated within a ±10% range, ensuring consistent performance for connected devices.
This power supply is ideal for use in access control systems, particularly for door retainers and other security devices that require a stable 24V DC power source. Its robust design and comprehensive protection features make it suitable for various industrial and commercial environments.
Features:
- Mains input voltage 170-264Vac.
- Output voltage DC24V regulated.
- High efficiency electronics for reduced running costs and lower operating temperature.
- Full electronics short circuit and overload protection.
- Lid-tamper detection.
- Green Mains present LED.
- Red Fault LED.
- Selectable NO / NC input for Relay
- External DC24V voltage input for Relay
| Input |
|
| Input Voltage |
170-264Vac, 47-63Hz |
| Mains Input Fuse |
3.0A 250V |
| Output |
|
| Output Voltage |
DC24V1A |
| Ripple |
150mV pk-pk max |
| Load Output Fuse |
1A |
| Overload Protection |
Electronics shutdown until overload or
short |
| Box Size |
|
| Box Size |
200Wx240Hx75D mm removable Hinge |
| Environmental |
|
| Working Temperature |
-10°c~+40°c Storage Temperature -20°c ~+60°c |
| Humidity |
95% RH non-condensing |
| Terminals |
|
| DC-OUT x 2 |
+/- voltage O/P to load equipment |
| SW x 2 |
Switch for controlling Output ON/OFF |
| 24V EXT x 2 |
+/- external voltage for controlling Output ON/OFF |
| Tamper x 2 |
Tamper volt-free contact |
