Hikvision DS-1200KI(B) Network PTZ Keyboard and Joystick
Hikvision
- LAN IP Interface
- 4 Axis Joystick
- 3 year guarantee
The Hikvision DS-1200KI is a PTZ Keyboard and Joystick controller with LAN interface allowing the control of Hikvision cameras, recorders over a LAN connection (Read more)
PRODUCT DETAILS

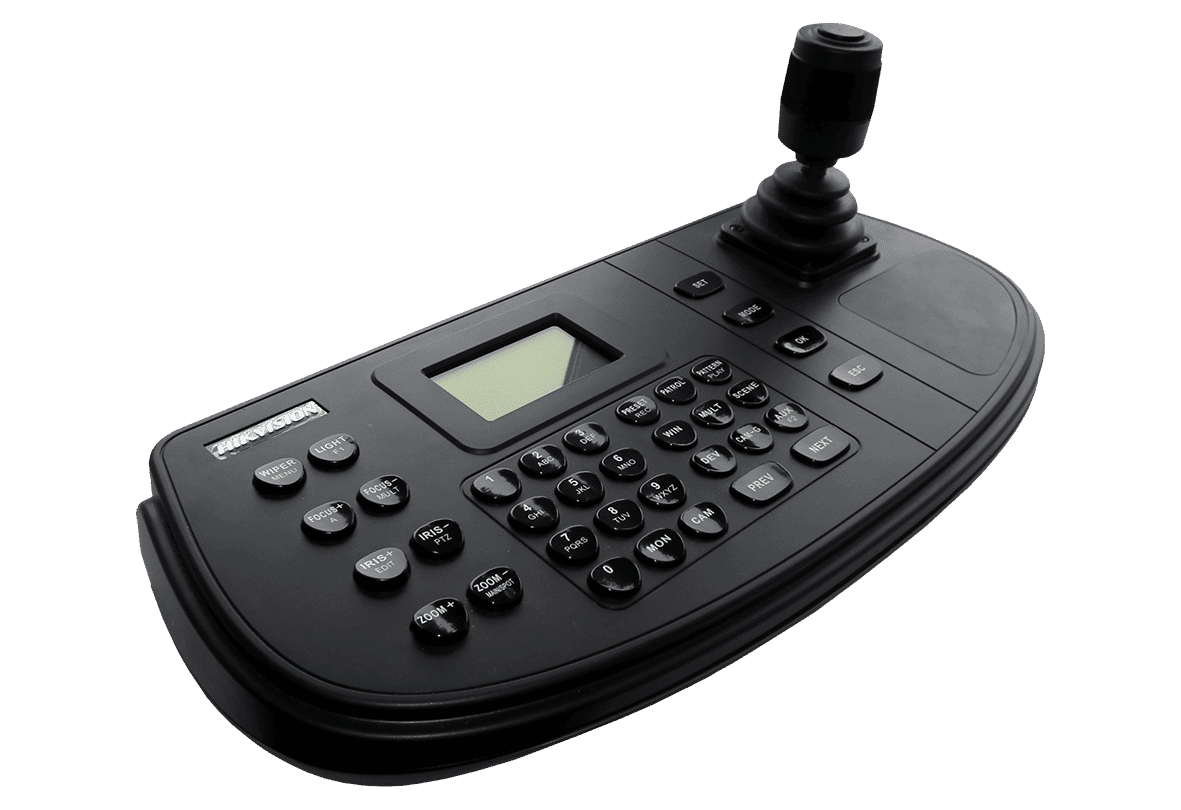

The Hikvision DS-1200KI is a keyboard and joystick that features 128 × 64 dot-matrix screen. Designed for use with Hikvision cameras and recorders, the DS-1200KI boasts a sleek and user-friendly interface with tactile buttons and responsive joystick enable swift and precise control over every aspect of your surveillance setup, allowing you to effortlessly pan, tilt, zoom, and navigate through camera feeds.
As a self-developed new generation keyboard, DS-1200KI keyboard is compatible with various devices, such as speed domes, multi-functional video centres (MVCs), and matrix access gateways (MAGs) to realize quick switch to video wall and PTZ control. It supports DVRs and NVRs access to realize menu control and PTZ control.
Features:
- 128 x 64 screen
- 4-axis joystick
- Connectable to the Multifunctional Video Center (MVC) & Matrix Access Gatewat (MAG), Video Wall Controller, Decoder, ect.; and shortcut operation of camera/camera groups switch on video wall
- Connectable to DVR via network or serial port & operation of front panel buttons
- Connectable to dome & realize PTZ control & picture capture by joystick operation
- 16 user accounts management: 1 admin & 15 operators
- System upgrade & import / export of configuration files by USB flash disk
- Captured pictures (FAT32) can be stored in U-flash disk
- Network access & configuration by Web browser support; and up to 1000 devices can be manged in the keyboard operation mode
System
| LCD screen: | 128 x 64 pixel screen |
| Joystick: | 4-axis joystick |
| Control mode: | Network, RS-232, RS-422, RS-485 |
External Interfaces
| Network interface: | 1; 10 M/100 Mbps self-adaptive Ethernet interface |
| Serial interface: | 1 RS-232, 1 RS-422, 1 RS-485 |
| USB interface: | 1 |
| Videos |
|---|
How to use 485 keyboard control DVR/NVR GUI4.0
How to connect 485 keyboard to Hikvision DVR/NVR| Files |
|---|
| Datasheet |
| Links* |
|---|
| Hikvision DS-1200KI |
| Hikvision website |
| Hikvision support site |
