Hikrobot MV-SC6050M-08M-XBN SC6000 Series Smart Camera, 5MP, Mono, M12-8mm
Hikrobot
- 8mm Focal Length
- AI Deep Learning
- 1 year guarantee
The Hikvision Hikrobot MV-SC6050M-08M-XBN is a compact, high-precision 8mm C-mount lens designed for use with industrial and machine vision cameras. (Read more)
PRODUCT DETAILS
The Hikrobot MV-SC6050M-08M-XBN is a high-precision 8mm C-mount lens designed for use with industrial and machine vision cameras. Engineered for accuracy and reliability, this lens delivers sharp, high-contrast images across the frame, making it ideal for applications such as quality inspection, automation, robotics, and security.
Built with durable materials to withstand continuous use, the MV-SC6050M-08M-XBN ensures stable performance even in demanding environments. Its compact form factor and precision optics make it a dependable choice for professionals who require consistent image clarity and minimal distortion.
Features:
- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions and supports more than 140 algorithms.
- Supports four-color light source (red/green/blue/white), and switching as needed.
- Adopts multiple I/O interfaces, such as multiple input/output signals.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.
| Specification |
||
| Model | Product Model | MV-SC6050C-08M-XBN |
| Type | SC6000 Series Smart Camera, 5MP, Colour, M12-8mm focal length, Multi-colour light source | |
| Tool | Function module | VM Platform |
| Communication protocol | TCP, UDP, ModBus, Serial Port, Profinet, EtherNet/IP, Fins, MC, FTP, etc. | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1/1.45" | |
| Resolution | 2432 × 2048 | |
| Max. frame rate | 80 fps | |
| Gain | 0 dB to 18 dB | |
| Exposure time | 16 μs to 1 sec | |
| Pixel format | Mono 8, RGB 8 | |
| Mono/color | Color | |
| Platform | Memory | 8 GB |
| Storage | 64 GB | |
| Electrical feature | Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 male connector provides power and I/O, providing opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, light source output (max. 30 W) × 1 | |
| Extended interface | 17-pin M12 female connector provides VGA × 1 and USB host × 1 | |
| Power supply | 24 VDC | |
| Power consumption | Approx. 12 W @ 24 VDC (without external light source) Approx. 42 W @ 24 VDC (with external light source) Approx. 16.6 W @ 24 VDC (light source is enabled) | |
| Mechanical | Lens mount | M12-mount |
| Focal length | 8 mm | |
| Light source | Red light, green light, blue light, white light (switching by software) | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) | |

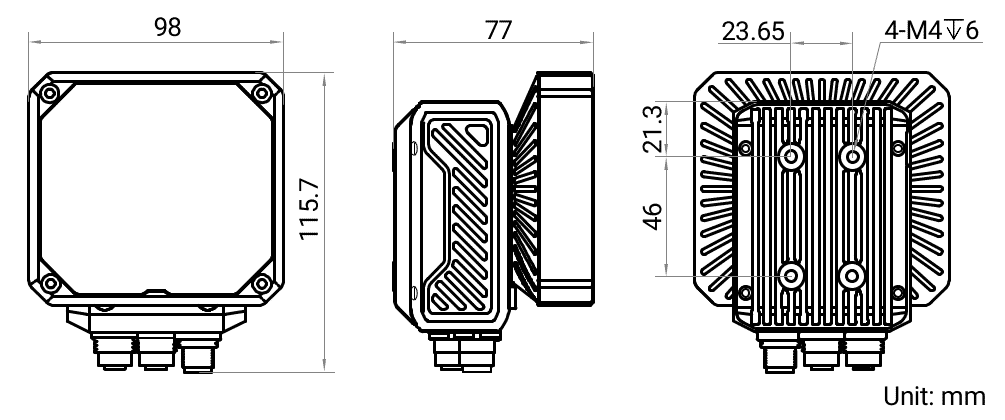

| Dimension | 77 mm × 98 mm × 115.7 mm (3.0" × 3.9" × 4.6") | |
| Weight | Approx. 750 g (1.7 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH, no condensation | |
| General | Certification | CE, KC |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikrobot MV-SC6050M-08M-XBN Datasheet |
| Hikrobot MV-SC6050M-08M-XBN Quick Start Guide |
| Links* |
|---|
| Hikrobot website |
