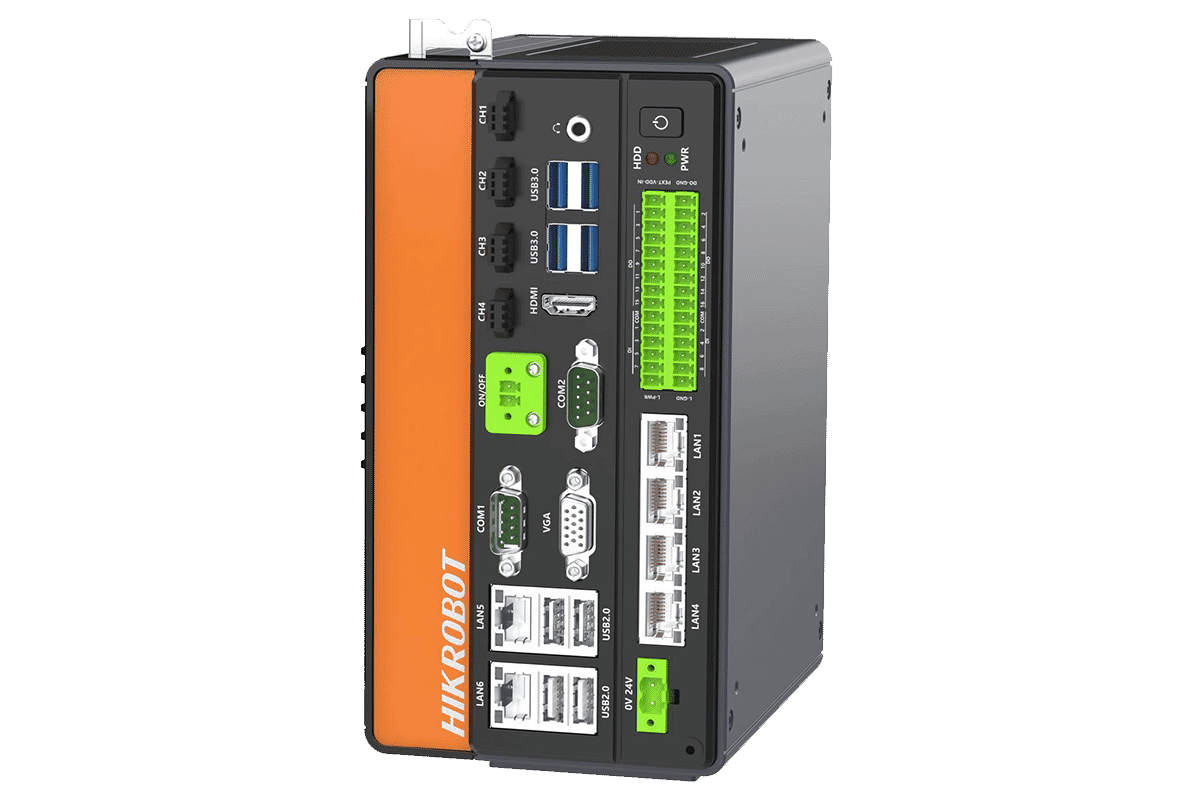

Hikrobot MV-VC3301H-128G60 VC3000H Vision Controller, I3-8100，8GB+128GSSD
Hikrobot
- 8th Gen Intel CPU
- NPN/PNP Switching
- 1 year guarantee
The Hikrobot MV-VC3301H-128G60 is an industrial camera designed for machine vision applications that demand image quality, speed, and reliability. (Read more)
PRODUCT DETAILS
The Hikrobot MV-VC3301H-128G60 is a high-performance industrial camera designed for machine vision applications that demand exceptional image quality, speed, and reliability. Equipped with a 128MP global shutter CMOS sensor, this camera delivers ultra-high-resolution imaging with precise detail capture, making it ideal for inspection, quality assurance, and automation systems.
Engineered with robust hardware and advanced processing capabilities, the MV-VC3301H-128G60 ensures consistent performance in challenging industrial environments. Its GigE interface allows for seamless integration into vision systems, offering high-bandwidth data transmission and stable connectivity.
Features:
- Adopts 8th generation Intel® CPU to offer strong performance.
- Provides extended slot to connect with image frame grabbers.
- Supports 24-channel GPIO and NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
- Supports PCIe 3.0 ×16 interface.
- Built-in USB interface for on-site maintenance is optional.
| Specification |
||
| Model | Product Model | MV-VC3301H-128G60 |
| Type | VC3000H Vision Controller, I3-8100，8GB+128GSSD，Unsupported POE， PCI-E | |
| Performance | CPU | Intel® CoreTM i3-8100 |
| Memory | 8 GB | |
| Storage | 128 GB SSD, mSATA interface × 1, SATA interface × 1 | |
| GPU | Intel® HD Graphics 630 | |
| Operating system | Unactivated 64-bit Windows 10 | |
| External interface | Video output | HDMI interface × 1, VGA interface × 1 Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz |
| Digital I/O | Opto-isolated input × 8, opto-isolated output × 16 Output supports NPN/PNP switch | |
| Network interface | GigE interface × 6 | |
| USB interface | USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1 | |
| Serial port | RS-232 × 2, supports switching to RS-485 and RS-422 | |
| Light interface | 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) | |
| Extended interface | PCIe 3.0 ×16 ( × 1) | |
| Electrical feature | Power supply | 24 VDC |
| Power consumption | Typ. 95 W | |

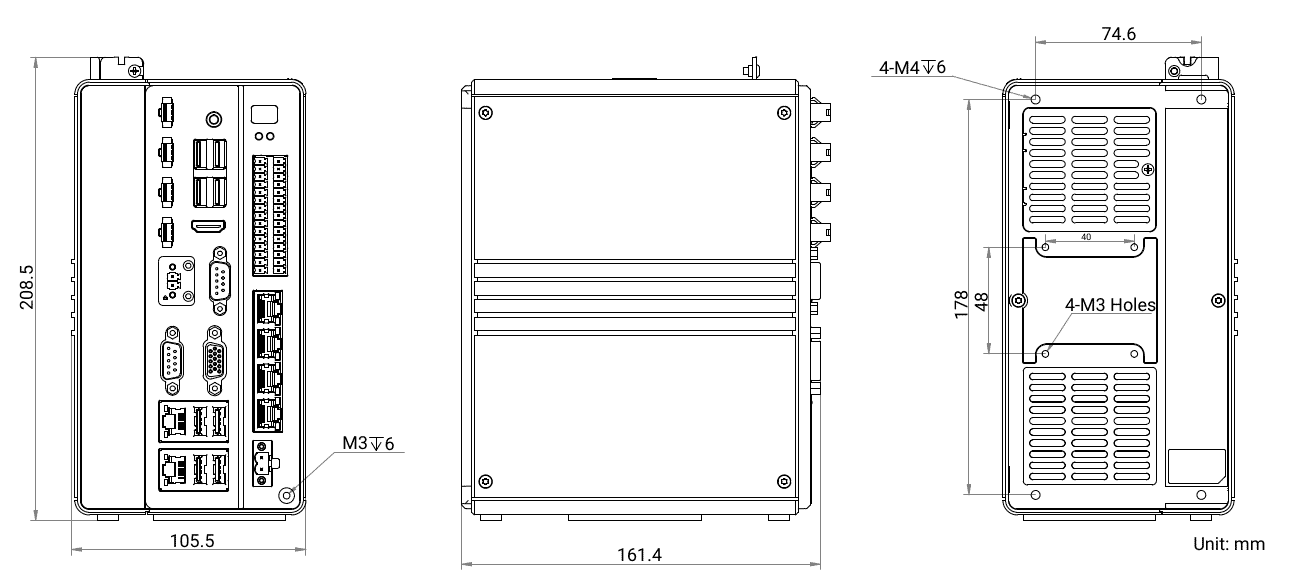

| Mechanical | Dimension | 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2") |
| Weight | Approx. 2.1 kg (4.6 lb.) | |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Certification | CE, KC |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikrobot MV-VC3301H-128G60 Datasheet |
| Hikrobot MV-VC3301H-128G60 User Manual |
| Links* |
|---|
| Hikrobot website |
