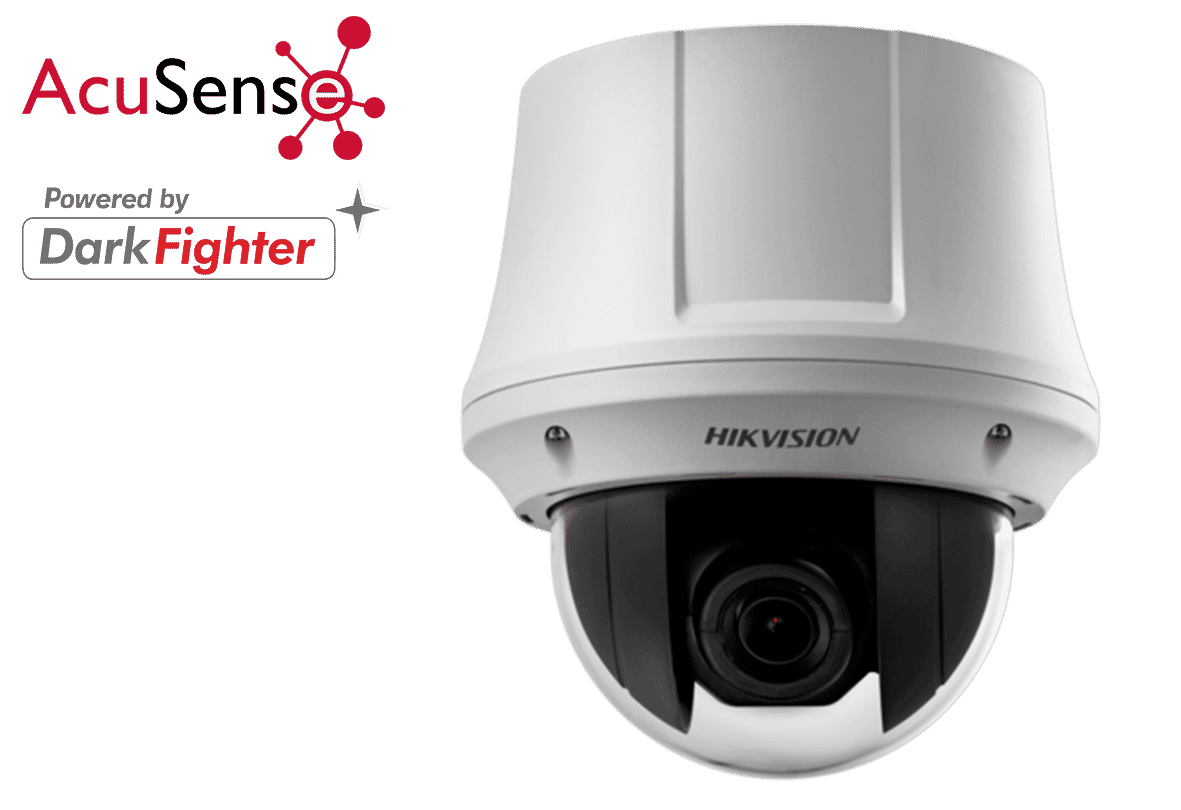

Hikvision DS-2AE4225TG-3 2MP 25x Indoor Speed Dome
Hikvision
- AcuSense Technology
- 25x Optical Zoom
- 2 year guarantee
The Hikvision DS-2AE4225TG-3 is a 2Megapixel indoor speed dome PTZ camera with 25 x optical zoom, and both Acusense and Darkfighter technology. (Read more)
PRODUCT DETAILS
The Hikvision DS-2AE4225TG-3 is a 2 Megapixel speed dome mini PTZ camera with 25 x optical zoom, intelligent Acusense technology which greatly reduces the number of false alerts received, and high-quality colour images in ultra-low light scenes are achieved thanks to Hikvision's Powered by DarkFighter Low Light Technology.
Deep Learning with AcuSense Technology
The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways
- Alarm will only trigger when the preset intrusion type takes place
- Related videos are sorted by categories for easier search
Users can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced
.png)
Features:
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light by 120 dB WDR technology
- Pan and tilt ability enables the camera to capture interested areas
- Securing an expansive area with 25x optical zoom
- Water and dust resistant (IP66)
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Colour: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| Shutter Speed | PAL: 1/1 s to 1/30,000 s NTSC: 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 25 × optical, 16 × digital |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25 × optical |
| FOV | Horizontal FOV: 57.6° to 2.5° (wide to tele) Vertical FOV: 34.4° to 1.4° (wide to tele) Diagonal FOV: 64.5° to 2.9° (wide to tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.6 to F3.5 |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | -5° to 90° (auto flip) |
| Pan Speed | Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Pan | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Preset Freezing | Yes |
| Patrol Scan | 10 patrols, up to 32 presets for each patrol |
| Pattern Scan | 5 patterns, record time over 10 minutes for each scan |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Power-off Memory | Yes |
| Video | |
| Frame Rate | 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
| Network | |
| Protocols | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| Image | |
| Image Settings | AGC, white balance |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable privacy masks |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| General | |
| Power | 12 VDC, max. 12 W |

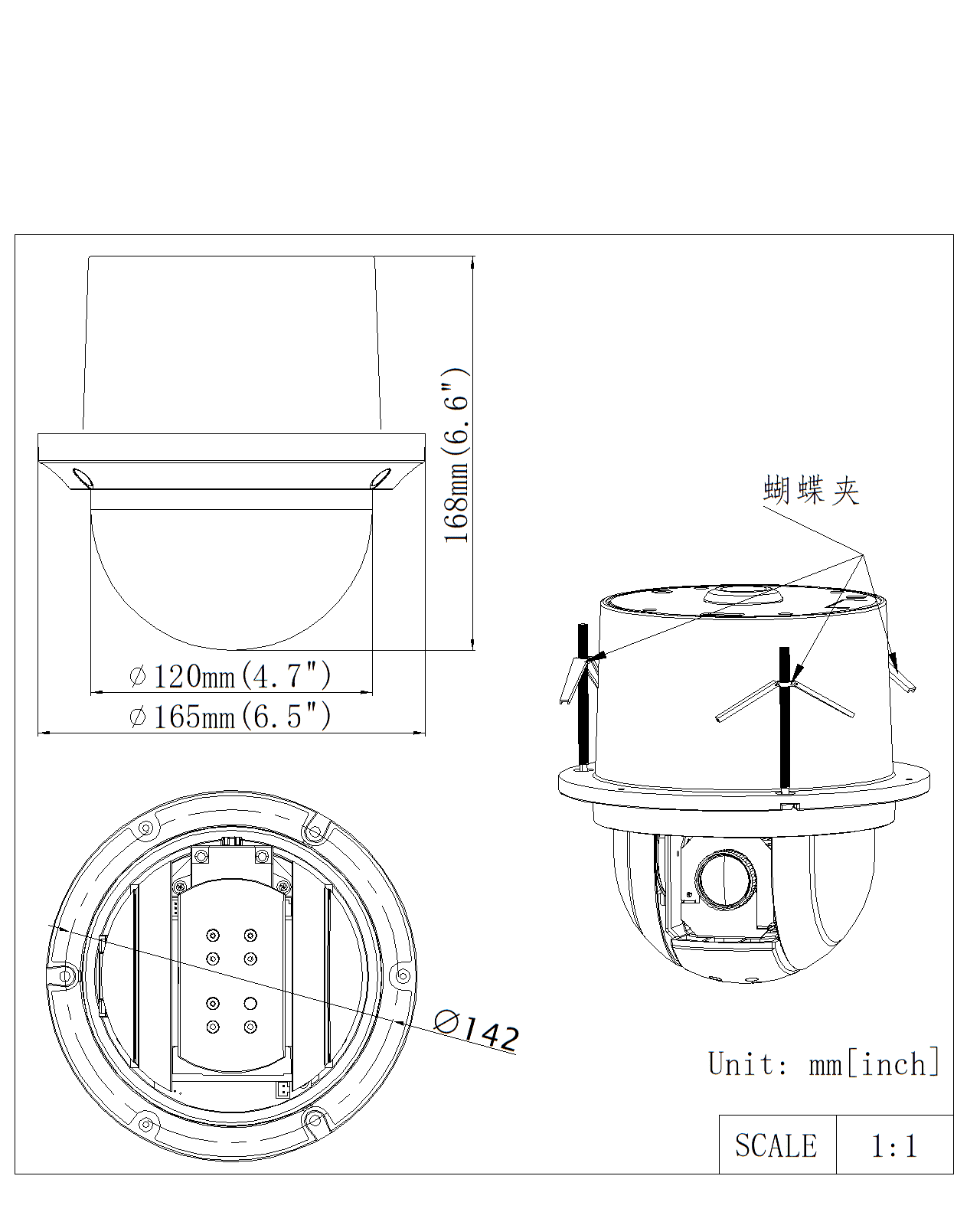

| Dimension | DS-2AE4225TG-3 (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" ×
7.1\") DS-2AE4225TG-3 (In-ceiling): Ø 165 × 168 mm (Ø 6.5 × 6.6\")" |
| Approx. 2 kg (4.41 lb.) | |
| Operating Condition | -10° C to 50° C (14° F to 122° F). Humidity 90% or less |
| Language | English |
| Approval | |
| Protection | TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-2AE4225TG-3 Datasheet |
| Hikvision DS-2AE4225TG-3 Quick Start Guide |
| Hikvision DS-2AE4225TG-3 User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
