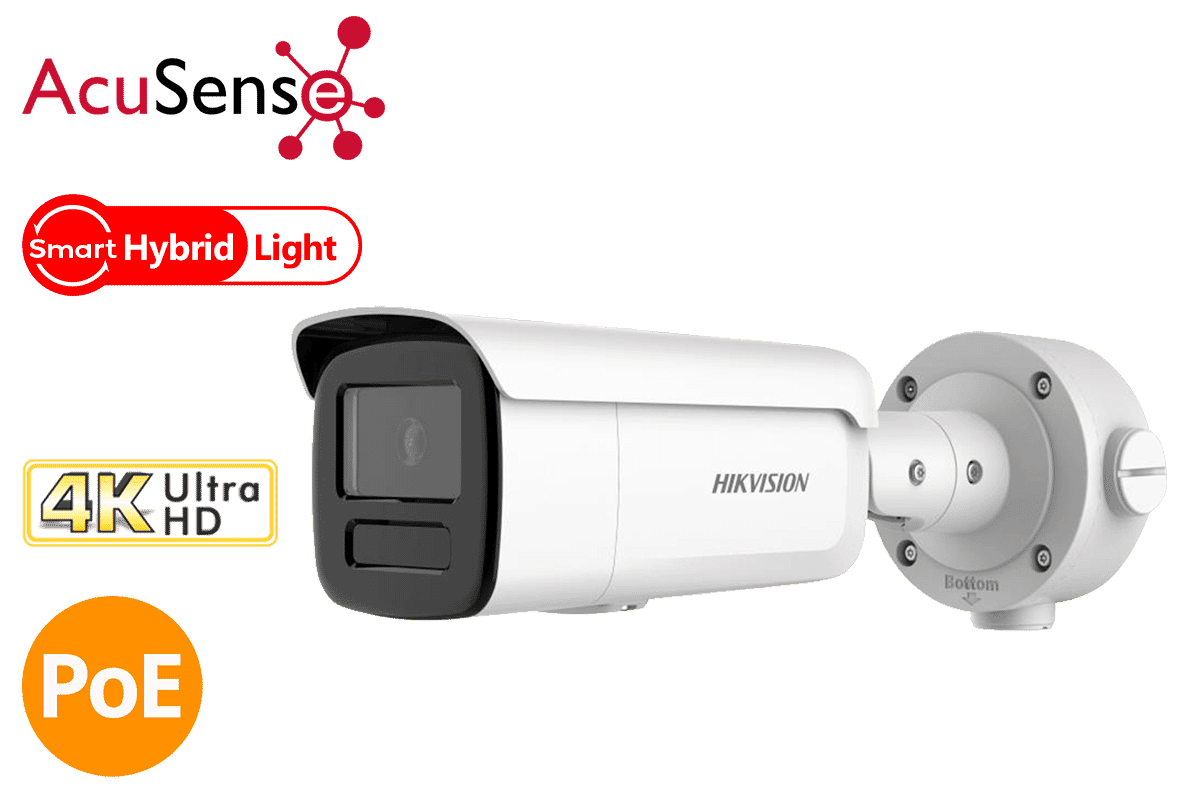

Hikvision DS-2CD3T86G2-4ISY(H) 8MP 4K IP Acusense Anti-Corrosion Bullet 4.0mm
Hikvision
- Darkfighter S
- Hybrid Light
- 5 year guarantee
The Hikvision DS-2CD3T86G2-4ISY(H) is an 8MP bullet network camera with a 4mm fixed lens, & features AcuSense, hybrid light & DarkFighter S technology (Read more)
PRODUCT DETAILS
The Hikvision DS-2CD3T86G2-4ISY(H) is an 8MP 4K bullet network camera with a 4mm fixed lens, and features AcuSense and DarkFighter S technology which includes a white light for when human or vehicle detection is activated, as well as AcuSense deep learning based algorithms.
Hikvision’s Smart Hybrid Light Cameras with ColorVu are designed to upgrade your night vision experience in virtually any setting with always sharply-focused imaging and versatile lighting options. Powerful technologies including ColorVu, Super Confocal, Smart Hybrid Light, and other functionalities energize our cameras with amazing reliability and advanced capabilities.
Stunning low-light imaging
Enjoy splendid night vision boosted by Super Confocal technology with F1.0 Super Aperture.
Hikvision has gone previous limits, leading the industry by achieving a delicate & complex confocal effect with an F1.0 large-aperture lens, which guarantees equally sharp imaging in IR or visible light.
- ColorVu technology ensures excellent colourful imaging in ultra-low light.
- Super Confocal technology guarantees clear, steady imaging without defocusing when switching from colour to black & white.
Monitoring in a smarter way
Security Intelligence gets more visible with AcuSense-powered smart functions based on data analysis, effectively capturing targets in true colour.
- Motion Detection 2.0 distinguishes persons and vehicles from other objects in the environment, focusing on real security threats with efficient video searches.
- Live Guard (IP) deters trespassers with visual and auditory warnings while sending notifications to users remotely.
Optimize your security with flexible lighting options
Select the lighting mode that best suits your requirements: 24/7 colour, IR (B&W), or Smart. In Smart mode, the camera maintains infrared illumination until an event triggers colour imaging to capture critical details.
When there is no vehicle or person, the camera uses only the infrared light.
When a vehicle or person appears, the white light is automatically triggered, resulting in vivid color imaging with clear details.
When the vehicle or person leaves, the camera switches back to the infrared light.
Embedded Open Platform (HEOP)
Hikvisions Embedded Open Platform (HEOP) enables technology partners to develop and run their own applications on Hikvision’s hardware, facilitating custom security systems to respond to the specific needs and unique installation scenarios of customers.
HEOP features open-architecture hardware, standard interfaces, and the HikFlow algorithm development kit. Partners can easily join the HEOP ecosystem through Hikvision’s Technology Partner Portal.
Compared to HEOP 1.0, HEOP 2.0 facilitates partners to deploy proprietary deep-learning algorithms on Hikvision's edge devices, providing more intelligent and tailored applications for end users.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
4mm: Detection: 111m, Observation: 44m, Recognition: 22m, Identification: 11m
Features:
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Day & Night | IR cut filter |
| Min. Illumination | Colour: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens | |
| Focal Length & FOV | 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV
103° |
| Lens Type | Fixed focal lens, 4 mm |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 90 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| HEOP | |
| Open Resources | Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
| Programming Language | C,C++ |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 ×
360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | Mono sound |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR, Defog |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Audio | 1 input (line in), two-core terminal block, max. input
amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type:
non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Power Output | 12 VDC, max. 100 mA |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception |
| Smart Event | scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
| Deep Learning Function | |
| Face Capture | Yes |
| People Counting | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 1.16 A, max. 14 W,Ø5.5 mm coaxial power plug,
reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 16 W |
| Material | Metal |
| Dimension | 325.7 mm × 93.3 mm × 91.2 mm (12.8" × 3.7" × 3.6") |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Approx. 1240 g (2.7 lb.) |
| With Package Weight | Approx. 1944 g (4.3 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Protection | IP67: IEC 60529-2013 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
