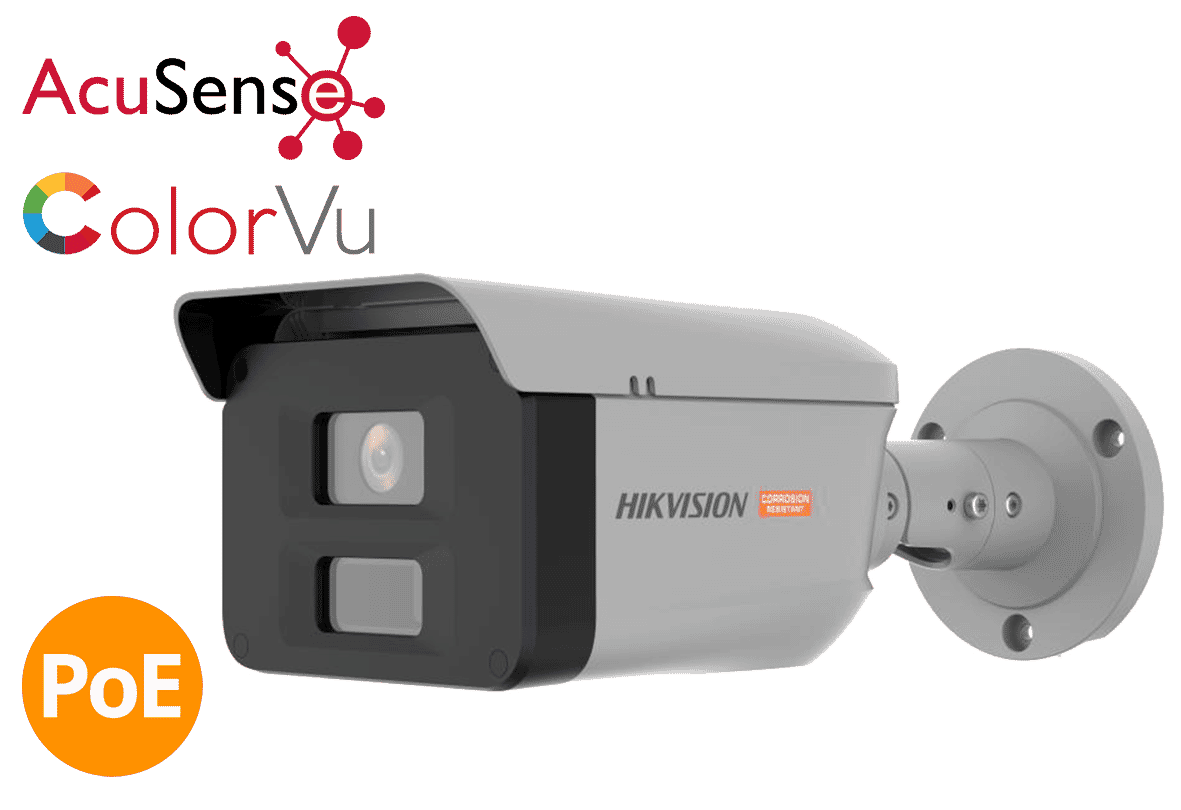

Hikvision DS-2XC6047G0-LS(2.8mm) 4MP ColorVu Fixed Bullet Anti-Corrosion Camera
Hikvision
- Anti-Corrosion Design
- 24/7 Colorful Imaging
- 5 year guarantee
The Hikvision DS-2XC6047G0-LS is a high resolution, anti-corrosion 4MP IP network bullet camera with a 2.8mm lens, AcuSense technology & 24/7 colour. (Read more)
PRODUCT DETAILS
The Hikvision DS-2XC6047G0-LS is a high resolution, anti-corrosion 4MP IP network bullet camera with a 2.8mm lens, and AcuSense technology to greatly reduce the number of false alarm notifications received.. It is constructed from anti-corrosion polymer, protecting the camera to be used in corrosive environments, providing reliability and longevity compared to standard cameras.
The DS-2XC6047G0-LS has Top Level Protection. Hikvision products
at this level are equipped for use in areas where professional
anti-corrosion protection is a must. Typical application scenarios
include coastlines,
docks, chemical plants, and more.
Deep Learning with AcuSense Technology
The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways
- Alarm will only trigger when the preset intrusion type takes place
- Related videos are sorted by categories for easier search
Users can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced
.png)
27/7 Colour Imaging with ColorVu Technology
Colorvu is the name for Hikvision's ultra-low light technology. Colorvu technology is designed to deliver clear colour images in scenes with almost no light without relying on infrared. Colorvu works by combining large image sensors with advanced image processing which in independent tests has proven to deliver the best images in scenes with very little light.
Colorvu cameras often feature a built-in white light that can provide illumination in complete darkness which allows Colorvu cameras to deliver full colour images 24 hours a day regardless of the lighting condition.
Having colour images helps with subject identification, number plates capture and provides accurate context which is lost on conventional cameras.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detection: 64m
Observation: 25.4m
Recognition: 12.8m
Identification: 6.4m
Features:
- 24/7 Colorful imaging
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
- Water and dust resistant (IP68)
- Easy installation with Power over Ethernet (PoE) technology and 9 to 36 VDC power input
- Supports Hikvision Embedded Open Platform (HEOP) with 1.5 TOPS computing power and importing third party applications
- Efficient H.265+ compression technology to save bandwidth and storage
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Colour: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Time | 1 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal
FOV 120.84° |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | |
| DORI | 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| HEOP | |
| Open Resources | Memory: 60 MB, Smart RAM: 350 MB, eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow |
| Programming Language | C,C++ |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 ×
720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 ×
480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264 /H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type | Mono sound |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger (-S) |
| Image Enhancement | BLC,HLC,3D DNR, Defog |
| Image Parameters Switch | Yes |
| SNR | ≥ 50 dB |
| Privacy Mask | 8 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 100 M Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC
card, up to 1 TB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory. |
| Audio | -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
| RS-485 | -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, white light flashing |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | DC: 9 to 36 V, 0.8 A, max. 7.2 W, PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W |
| Material | Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12 |
| Dimension | 250.5 mm × 105.6 mm × 91.9 mm (9.86" × 4.16" × 3.62") |
| Package Dimension | 315 mm × 137 mm × 141 mm (12.41" × 5.40" × 5.56") |
| Weight | Appox. 0.76 kg (1.68 lb.) |
| With Package Weight | Appox. 1.12 kg (2.47 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP68: IEC 60529-2013 |
| Anti-Corrosion Protection | C5,NEMA 4X (NEMA 250-2018) |
| Videos |
|---|
Hikvision ColorVu Technology| Files |
|---|
| Hikvision DS-2XC6047G0-LS Datasheet |
| Hikvision DS-2XC6047G0-LS Quick Start Guide |
| Hikvision DS-2XC6047G0-LS User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
