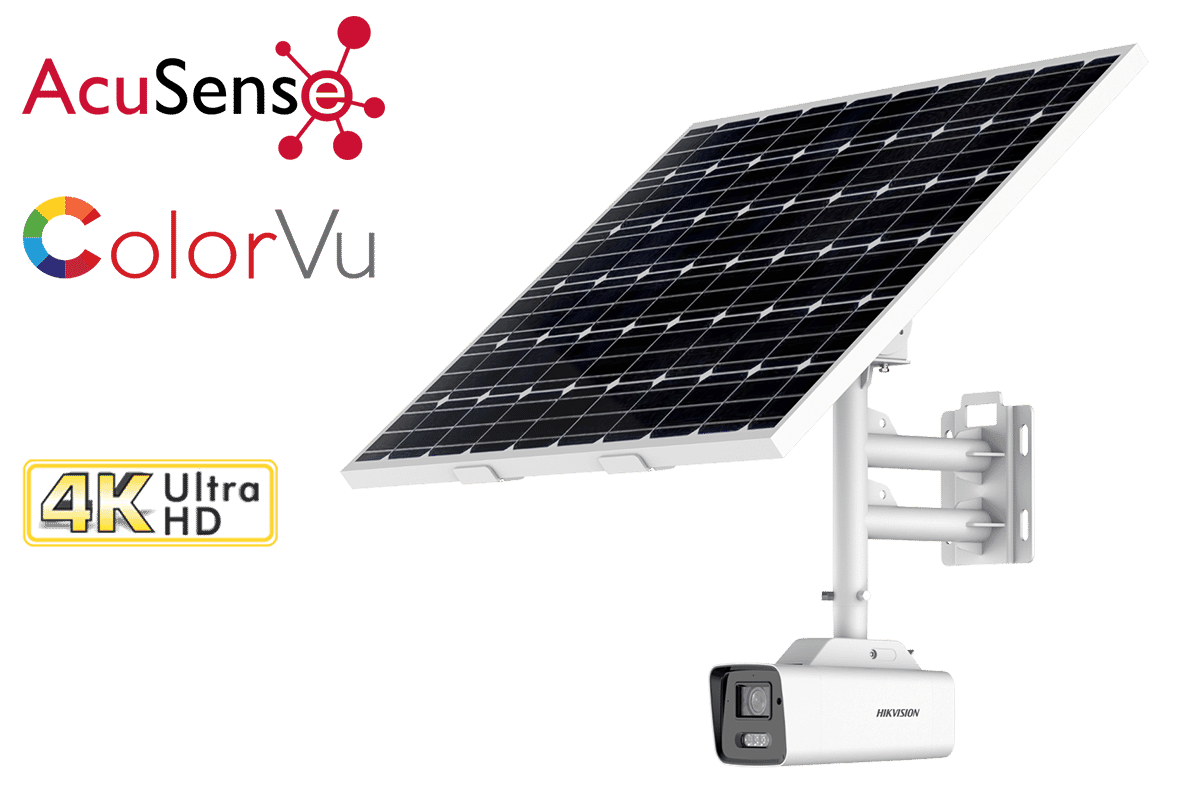

Hikvision DS-2XS6A87G1-LS/C32S80 8MP 4G Solar ColorVu Camera 2.8mm c/w Battery
The Hikvision DS-2XS6A87G1-LS/C32S80 is an 8MP 4K solar powered camera that comes with an 80 W photovoltaic panel & features both AcuSense & ColorVu (Read more)
PRODUCT DETAILS
The Hikvision DS-2XS6A87G1-LS/C32S80 is an 8MP 4K solar powered camera that comes with an 80 W photovoltaic panel and is supplied with a 30 Ah chargeable lithium battery. It can be used in areas that are not suitable for laying wired network and electric supply lines and in temporary monitoring scenes such as sporting events or temporary traffic control. The data can be transmitted over an LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network or saved to a micro-SD card.
ColorVu technology provides vibrant full colour images even in ultra-low light conditions and the smart AcuSense AI sensors eliminate false alarms by differentiating between humans and non-events such as animals.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detection: 96m
Observation: 38m
Recognition: 19m
Identification: 9.5m
Features:
- High quality imaging with 8 MP@ 15fps resolution
- 24/7 Colourful imaging
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Supplied with 80 W photovoltaic panel, 30 Ah chargeable lithium battery
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Camera: Water and dust resistant (IP67)
- Built-in 64 GB eMMC storage
Camera | |
Image Sensor | 1/1.2" Progressive Scan CMOS |
Max. Resolution | 3840 × 2160 |
Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light |
Shutter Time | 1 s to 1/100,000 s |
Lens | |
Focal Length & FOV | 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal
FOV: 124° |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Iris Type | Fixed |
Aperture | F1.0 |
Lens Mount | M20 |
DORI | |
DORI | 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m |
Illuminator | |
Supplement Light Type | White Light |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
Video | |
Main Stream | 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 ×
720) 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) |
Video Compression | Main stream: H.265 Sub-stream: H.265/MJPEG *Full power mode: main stream supports H.265+ |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.265 Type | Main Profile |
Bit Rate Control | CBR/VBR |
Scalable Video Coding (SVC) | H.265 encoding |
Region of Interest (ROI) | 4 fixed regions for main stream |
Network | |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2 |
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | Hik-Connect (low power mode also supports), Hik-central Professional |
Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Mobile Communication | |
SIM Card Type | MicroSIM |
Frequency | DS-2XS6A87G1-L/C32S80: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: Band3/5/8 DS-2XS6A87G1-L/C32S80 (US): LTE-FDD: Band2/4/5/12/13/17/66/71 WCDMA: Band2/4/5 DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66 WCDMA: Band1/2/3/4/5/8 GSM: Band2/3/5/8 DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/8 |
Standard | DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA |
Image | |
Wide Dynamic Range (WDR) | 120 dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
SNR | ≥ 52 dB |
Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
RS-485 | 1 RS-485 (half duplex) |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256
GB; Built-in 64 GB eMMC storage |
Reset Key | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
Smart Event | Line crossing detection, up to 4 regions configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable, The smart events are only supported under full power mode. |
Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
General | |
Power | 12 VDC ± 20%, Ø5.5 mm coaxial power plug 1. Standby power consumption: 53 mW 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded). 3. The max. power consumption: 3.2 W |
Material | Front cover: metal, body: metal, bracket: metal |
Dimension | 829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is completely assembled) |
Package Dimension | 862 × 292 × 765 mm (33.9" × 11.5" × 30.1") |
Weight | Approx. 25.4 kg (56.0 lb.) |
With Package Weight | Approx. 30.1 kg (66.3 lb.) |
Storage Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter |
Battery | |
Battery Type | Lithium |
Capacity | 30 Ah |
Battery Voltage | 10.8 V |
Max. Output Voltage | 12.6 V |
Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
Battery Life | More than 500 cycles |
Battery Weight | Approx. 3.3 kg (7.3 lb.) |
Extended Dimension | 236 × 154 × 80 mm (9.3" × 6.1" × 3.2") |
Approval | |
EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:
2013+A1:2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) FCC (47 CFR Part 15, Subpart B) IC (ICES-003: Issue 7) |
RF | CE: CE-RED (EN 301908-1, EN 301908-2, EN 301908-13, EN 301511,
EN 301489-1, EN 301489-52, EN 62133) ICASA: same as CE-RED FCC ID (47 CFR Part15 Subpart C) IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5) MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment) |
Safety | CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) LOA (IEC/EN 60950-1) |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | Camera: IP67 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance |
