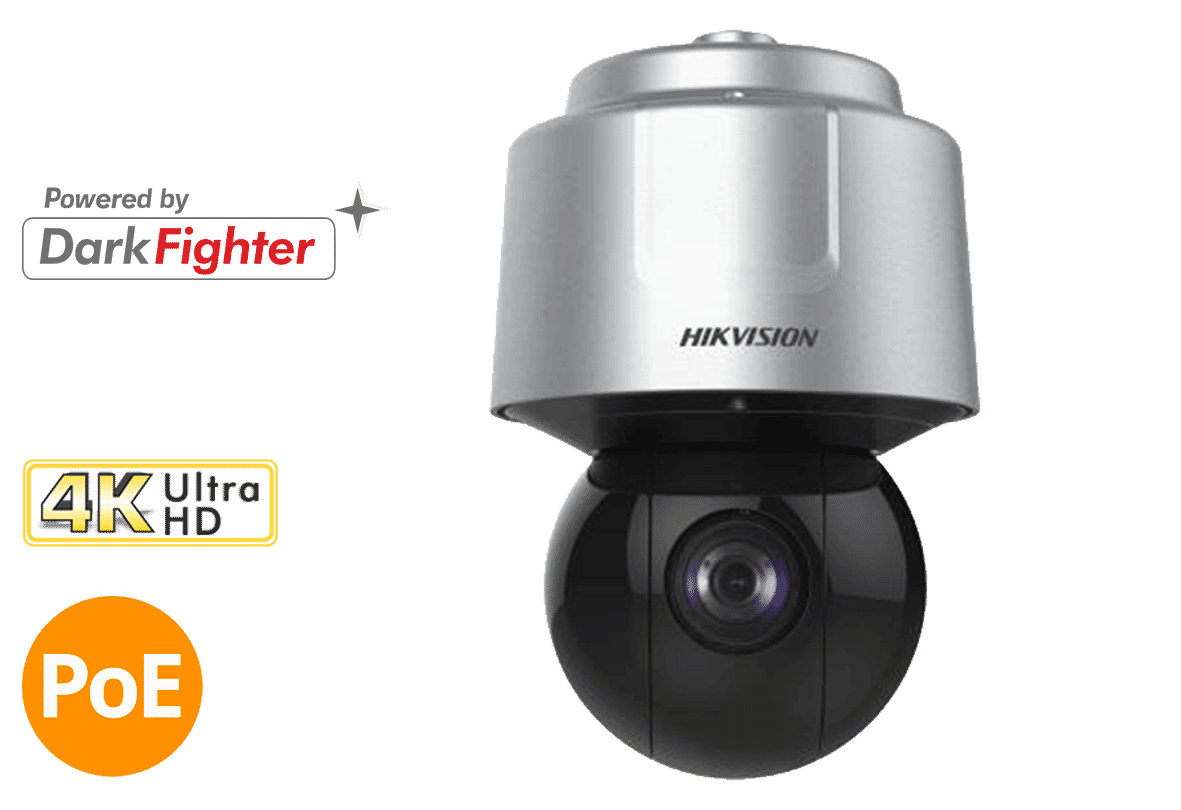

Hikvision iDS-2DF6A836X-AEL(T5) 4K 36X Powered by DarkFighter Network Speed Dome
Hikvision
- Darkfighter Technology
- 36 x Optical Zoom
- 3 year guarantee
The Hikvision iDS-2DF6A836X-AEL is a 8MP 4K speed dome IP camera with a 362 x optical zoom and excellent low-light performance thanks to Darkfighter. (Read more)
PRODUCT DETAILS
The Hikvision iDS-2DF6A836X-AEL(T5) is an 8MP 4K speed dome IP camera with a 36 x optical zoom and excellent low-light performance thanks to Darkfighter technology. It features smart events such as unattended baggage detection, object removal detection, Intrusion Detection, Line Crossing Detection, Face Capture, Vehicle Detection Region Entrance Detection, Region Exiting Detection and Audio Exception Detection.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detect (25px/m): 4300 m
Observe (63px/m): 1706.3 m
Recognize (125px/m): 860 m
Identify (250px/m): 430 m
Features:
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 36× optical zoom and 16× digital zoom provide close up views over expansive areas
- Supports rapid focus
- Water and dust resistant (IP67) and vandal proof (IK10)
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
| Camera | |
| Image Sensor | 1/1.8＂ progressive scan CMOS |
| Min. Illumination | colour: 0.005Lux @ (F1.2，AGC ON),B/W: 0.0005Lux @ (F1.2，AGC ON) |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Slow Shutter | yes |
| Focus | auto; semi-auto; manual |
| Day & Night | ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 140 dB WDR |
| HLC | yes |
| 3D DNR | yes |
| Defog | yes |
| EIS | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | yes |
| Regional Focus | yes |
| White Balance | auto; ATW; sodium lamp; fluorescent lamp; indoor; outdoor; MWB; Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 36x |
| Privacy Mask | up to 24 masks; polygon region ;mosaic mask ;mask colour configurable |
| DORI | Detect (25px/m): 4300 m Observe (63px/m): 1706.3 m Recognize (125px/m): 860 m Identify (250px/m): 430 m |
| SNR | ≥52dB |
| General Function | mirror, password protection, watermark, IP address filter |
| Optical Defog | yes |
| Lens | |
| Focal Length | 6.0 mm to 216 mm, 36× Optical |
| Zoom Speed | approx. 4.5 s |
| FOV | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Aperture | F1.2 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | yes |
| Park Action | preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960,
1280×720) 60 Hz: 24 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576,
640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265;H.264;MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | baseline profile; main profile; high profile |
| H.265 Type | main profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | fixed region |
| Audio | |
| Audio Compression | G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM |
| Audio Bit rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2) |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS);ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISAPI; Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API; Third-party management platform; ISUP; Ehome |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Smooth Streaming | yes |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client | Hikcentral;iVMS-4200;Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Alarm Input | 7 alarm inputs |
| Alarm Output | 2 alarm outputs |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Video Output | NTSC;PAL;1.0V[p-p]/75Ω;BNC connector |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| General | |
| Power | 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater) |
| Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| Dimensions | ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14") |
| Weight | Approx. 6 kg (13.23 lb.) |
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5 |
| Smart Features | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Face Capture | Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. |
| Road Traffic | Support vehicle detection (license plate number, vehicle model, and vehicle colour recognition) |
| Basic Event | alarm input and output; motion detection; video tampering alarm; exception |
| Smart Event | object removal detection; unattended baggage detection; vandal-proof alarm; parking detection; region entrance detection; region exiting detection; line crossing detection; intrusion detection; audio exception detection |
| Smart Tracking | manual tracking; auto-tracking; event tracking |
| Smart Record | ANR; Dual-VCA |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
