HiLook THC-T120-MS 2MP TVI Mini Turret with Mic 2.8mm
HiLook by Hikvision
- Built in Microphone
- Infrared up to 20 metres
- 3 year guarantee
The HiLook THC-T120-Ms is a 2 Mega Pixel analogue turret style CCTV camera with a 2.8mm fixed lens, IR range of up to 20m and a built in microphone (Read more)
PRODUCT DETAILS
The HiLook THC-T120-MS is a high resolution 2 mega-pixel analogue turret style CCTV camera that features powerful built-in infrared for images in complete darkness up to 20 metres away. The built in microphone supplies audio over the coax cable, enabling sound along with the camera image without the need for a separate cable.
The all metal turret style design of the THC-T120-MS delivers glare free images in all weathers while still offering significant vandal resistance and the flexibility to be mounted either vertically or horizontally.
Universal Multi-format Camera
The HiLook THC-T120-MS has universal BNC video and DC power connectors and can be switched between several analogue video formats including TVI, CVI, AHD and CVBS allowing it to be used on most modern CCTV recorders.
Powerful Infrared LED's for Night Vision
The THC-T120-MS has a powerful smart LED infrared array which can illuminate objects up to 20 metres away allowing the camera to capture images and details in complete darkness.
Features:
- 2 MP, 1920
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal
FOV: 124.6° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness; Sharpness; Mirror; Smart IR; AGC |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR; BLC; HLC; Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Built-in Microphone | Yes |
| General | |
| Power | 12 VDC ± 25%, max. 3.7 W |
| Material | Metal |

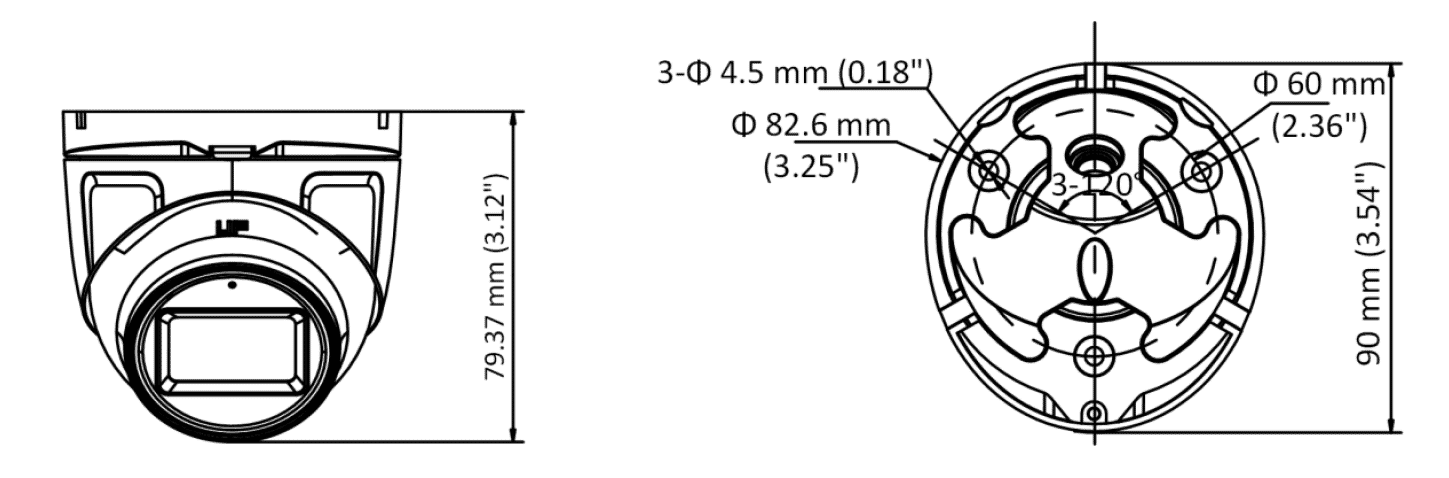

| Dimension | 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12") |
| Weight | Approx. 292 g (0.64 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP66 |
| Videos |
|---|
HiLook Introduction Video| Files |
|---|
| HiLook THC-T120-MS Datasheet |
| HiLook THC-T120-MS User Guide |
| HiLook THC-T120-MS Quick Start Guide |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
