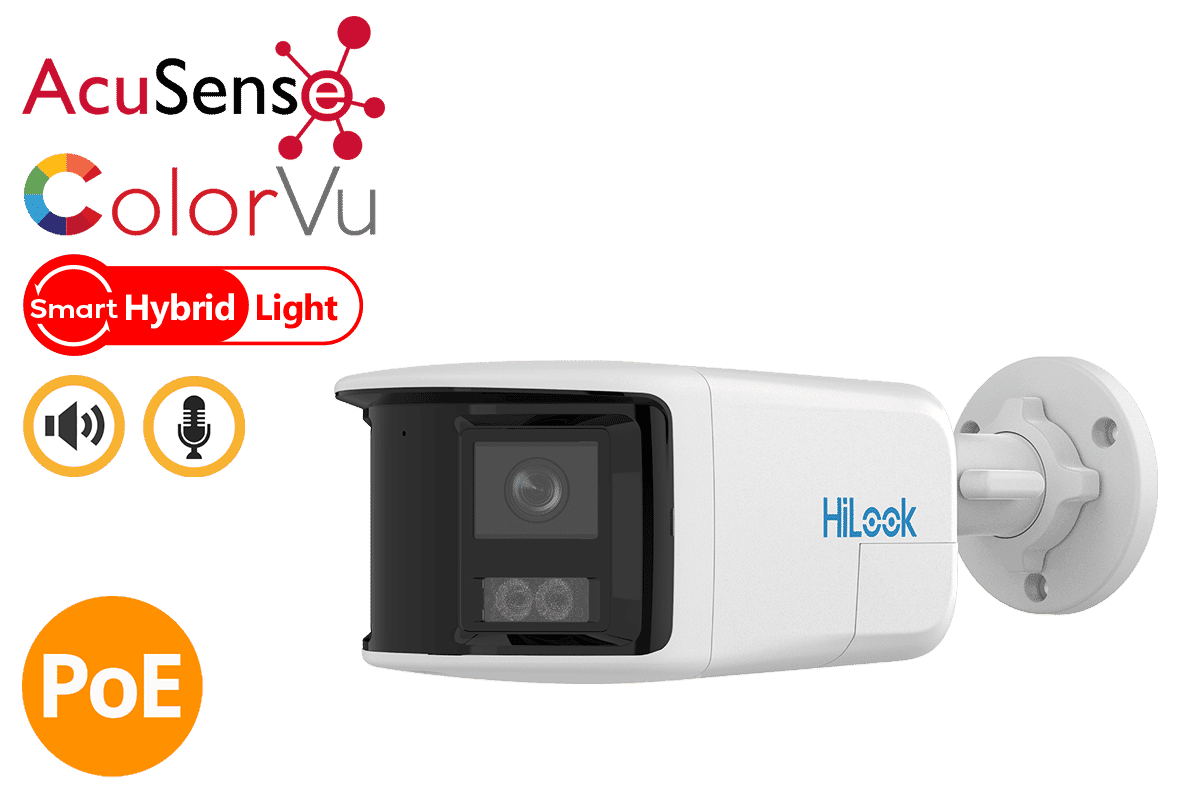

HiLook IPC-B469HAD-LUF/SL(2.8mm) 6MP Dual Lens Fixed Lens Bullet Camera
HiLook by Hikvision
- 180° Panoramic View
- 24/7 Colour Imaging
- 3 year guarantee
The HiLook IPC-B469HAD-LUF/SL is a 6MP dual lens 180° bullet camera with hybrid light, human & vehicle detection, 2 way audio, and a siren & strobe. (Read more)
PRODUCT DETAILS
The HiLook IPC-B469HAD-LUF/SL is a 6MP bullet camera with 180° video using two feeds that stitch together to create a seamless panoramic view. Smart Person and Vehicle Detection is used to greatly reduce the number of false alarm notifications received, and the ColorVu sensor provides enhanced full colour imaging, even in complete darkness. In addition, an integrated strobe light and audio alarm provides a powerful deterrent against would-be intruders.
Optimize your security with flexible lighting options
Select the lighting mode that best suits your requirements: 24/7 colour, IR (B&W), or Smart. In Smart mode, the camera maintains infrared illumination until an event triggers colour imaging to capture critical details.
When there is no vehicle or person, the camera uses only the infrared light.
When a vehicle or person appears, the white light is automatically triggered, resulting in vivid colour imaging with clear details.
When the vehicle or person leaves, the camera switches back to the infrared light.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detection: 44m
Observation: 17m
Recognition: 8m
Identification: 4m
Features:
- High quality imaging with 6 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Provide real-time security via built-in two-way audio
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
- 180° Field of view
- Active strobe light and audio alarm to warn intruders off
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS=""> |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Colour: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | 24/7 colour imaging |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 180°, vertical FOV 79° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | |
| DORI | 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | iVMS-4200,HiLookVision |
| Web Browser | Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, sharpness, gain, white balance, contrast, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes,1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception |
| Linkage | Upload to FTP, upload to memory card, send email, notify surveillance centre, trigger recording, trigger capture, audible warning, strobe light flashing |
| General | |
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,
reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Material | Front cover: Metal, body: Plastic, bracket: Metal |

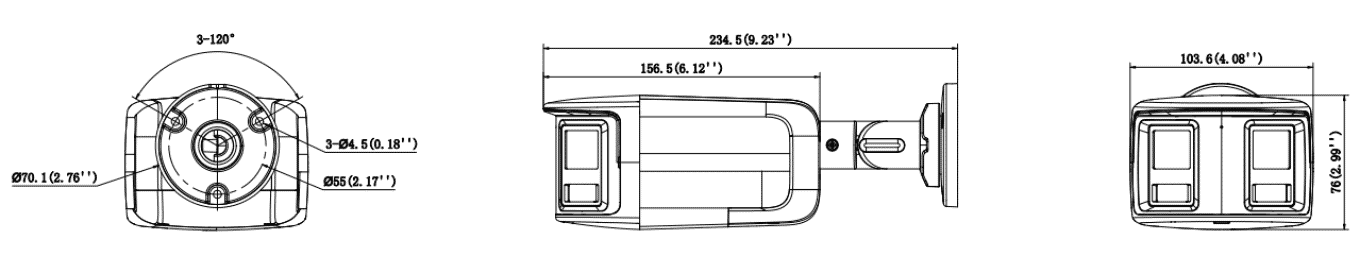

| Dimension | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")×=""> |
| Package Dimension | 260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5")×=""> |
| Weight | Approx. 560 g (1.2 lb.) |
| With Package Weight | Approx. 835 g (1.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General Function | Heartbeat, anti-banding, password protection, password reset via email |
| Flashing Light | /SRB model: Red and Blue Light /SL model: White Light |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Videos |
|---|
HiLook Introduction Video
How to Connect a HiLook IP Camera| Files |
|---|
| HiLook IPC-B469HAD-LUF/SL Datasheet |
| HiLook IPC-B469HAD-LUF/SL Quick Start Guide |
| HiLook IPC-B469HAD-LUF/SL User Manual |
