HiLook PTZ-N2D400M-DE/14(2.8/8mm TandemVu 4MP+4MP Fixed Lens POE PT Camera
HiLook by Hikvision
- Cloud Storage
- Auto-Tracking
- 3 year guarantee
The HiLook PTZ-N2D400M-DE/14 is a tandem PTZ with a 4mp fixed bullet camera & a 4mp PTZ camera. With smart hybrid light. 2 way audio & cloud storage. (Read more)
PRODUCT DETAILS

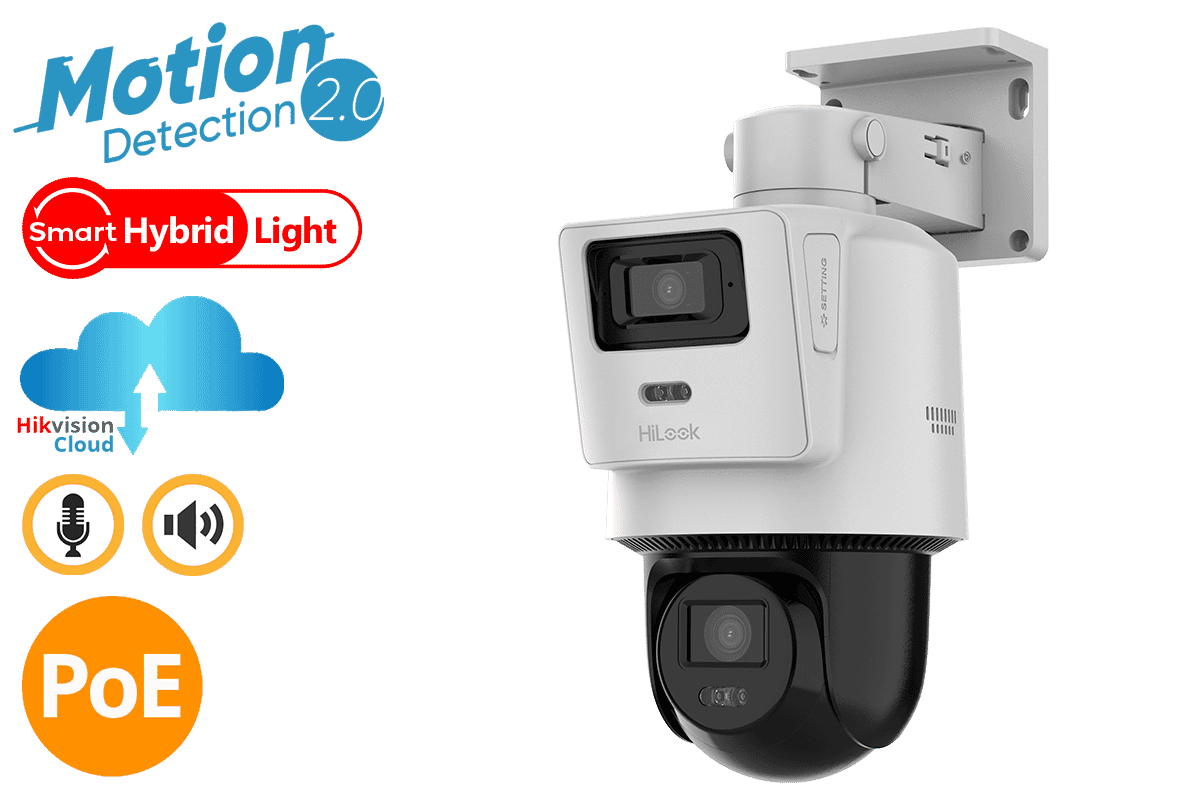

The HiLook PTZ-N2D400M-DE/14 is a PTZ camera that incorporates both a wide-angle bullet camera and a powerful PTZ camera to offer the best of both worlds and cover a much larger area than a conventional camera. This exciting new type of camera provides wide view and small details at the same time. The overall view remains even during the pan, tilt, and zoom manoeuvres, so that users will see everything and not miss any detail.
The PTZ-N2D400M-DE/14 features human detection and auto-tracking, as well as smart hybrid light that provides full colour imaging, even in complete darkness. 2-way audio is available through the integrated microphone and speaker, and video files can either be saved to a hard drive in an NVR, to an SD card up to 512GB, or to the Hik-Connect cloud service.
Hikvision Cloud Storage
Cloud-based solutions have quickly come into focus in many industries, and video security is no exception.
Video Security as a Service, or VSaaS, is the technology that hosts the hardware and software of video-based security systems in the cloud, so that users can access their IP cameras anywhere they might be through any device and have video footage at their fingertips.
Since there is no hassle of on-site server installation and system configuration, VSaaS is an ideal choice for small- and medium-sized businesses (SMB). It is more cost-effective than traditional video security solutions since users can spread costs out over the contract term and pay only for the services that are actually used.
Hikvision’s VSaaS makes it possible that disparate devices interact with each other as a convergent system. This enables them to perform specific tasks according to pre-defined linkage rules, for example, an intrusion event detected by the alarm system could trigger push-notice with video footage, and simultaneously close specific doors, as well as sound the siren.
Features:
- High quality imaging with 4 MP resolution
- Support Human Detection and Auto-tracking Lite
- Smart Hybrid Light: advanced technology with long range
- Hik-Connect cloud service and app for remote management and views of devices
- Built-in microphone and speaker for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
- Water and dust resistant IP66
| Camera | |
| Image Sensor | [Bullet channel] 1/2.8 Progressive Scan CMOS [PTZ channel] 1/2.8 Progressive Scan CMOS" |
| Min. Illumination | [Bullet channel] Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | ICR |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Lens | |
| Focal Length | [Panoramic channel] 2.8 mm, [PTZ channel] 8 mm |
| FOV | [Panoramic channel] horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°, [PTZ channel] horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51° |
| Aperture | [Bullet channel] F1.6, [PTZ channel] F1.6 |
| Illuminator | |
| Supplement Light Type | [Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light) |
| Smart Supplement Light | Yes |
| Supplement Light Range | [Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m |
| PTZ | |
| Movement Range (Pan) | [Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345° |
| Movement Range (Tilt) | [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80° |
| Pan Speed | Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s |
| Tilt Speed | Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s |
| Presets | 300 |
| Power-off Memory | Yes |
| Video | |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Main Stream | [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | [Bullet channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/Smart264/Smart265, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| H.264 Type | Baseline profile, Main profile, High profile |
| H.265 Type | Main profile |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Protocols | TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,HiLookVision |
| Web Browser | Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks |
| Image Parameters Switch | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, audible warning |
| General | |
| Material | PC |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug,
reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21.5 W |
| Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |

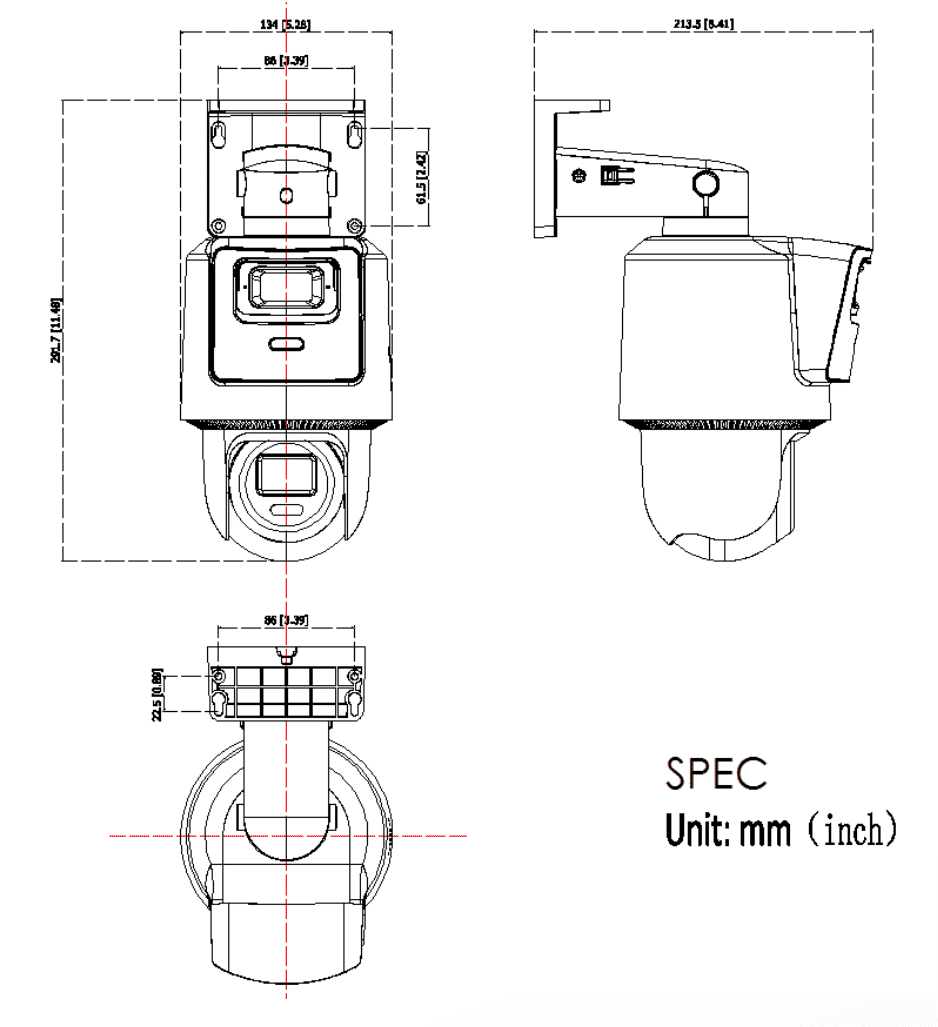

| Dimension | 134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5") |
| Weight | Weight: 1000 g (2.2 lb.) With Package Weight: 1500 g (3.3 lb.) |
| Approval | |
| Protection | IP66 Standard, Surge Protection and Voltage Transient Protection |
| Videos |
|---|
HiLook N2D Mini TandemVu PT Cameras
HiLook Introduction Video| Files |
|---|
| HiLook PTZ-N2D400M-DE/14 Datasheet |
| HiLook PTZ-N2D400M-DE/14 Quick Start Guide |
| HiLook PTZ-N2D400M-DE/14 User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.
Get expert answers to questions specific to this product below or for more help visit our Q&A forum
Read customer reviews or submit your review of this product
Your feedback helps us improve our products and services as well as helping other users make informed buying decisions.
The 2.8mm lens can be manually adjusted up/down to adjust the area monitored, and as the name suggest the 8mm is a Pan/Tilt that can be controlled remotely from the App, with the ability to have preset positions with 1-click recall.
In my humble opinion, I'd like to be able to point the 2.8mm downwards further than what is currently achieveable. It seems there is more ability to angle this lens up than you are able to angle it down - I can't think of many use-case scenarios where you'd need to be able to angle it up high...
Both lenses have their own white light for full colour at night. Featuring hybrid white light where it's IR until triggered, for example by motion, to illuminate the white light, or you can have permanent IR or permanent full colour night. The camera really is quite flexible with many settings to play with.
But the bottom line is this camera has excellent picture quality in all conditions.
