EZVIZ 12W Solar Panel with Battery Storage
- 37Wh Power Bank
- Double Charging Ports
- Battery Status Monitoring

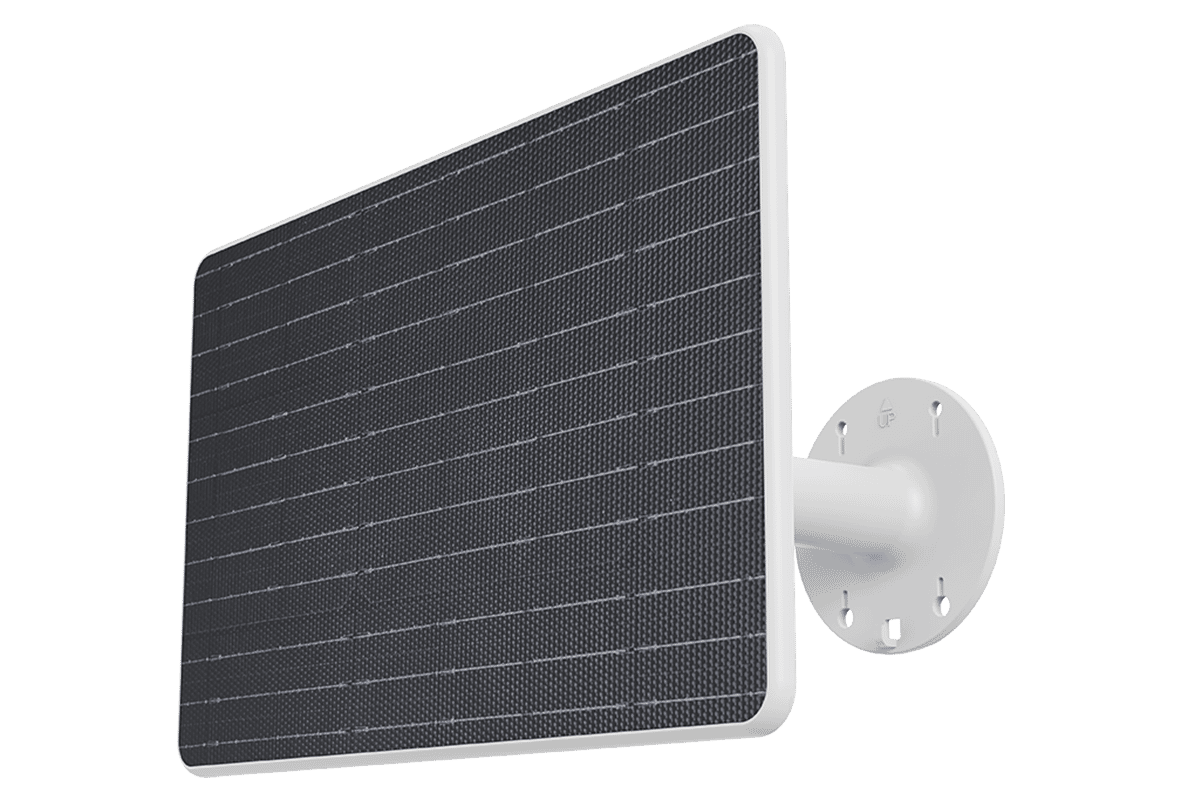

The Ezviz CS-PBC12-R100-10AH is a weatherproof 12W solar panel with a 37Wh power bank, Double Charging Ports and monocrystalline silicon solar cells. (Read more)
PRODUCT DETAILS
The Ezviz CS-PBC24-R100-20AH 12W solar panel can be a great helper to simplify your use of an EZVIZ outdoor battery camera, as it provides round-the-clock green power to free you from recharging your device. Unlike your ordinary solar panel that stops working on a cloudy day, it stores up to 37Wh power onboard to keep your camera running longer.
The solar panel can be connected to two battery-powered cameras and charge them simultaneously. Mount your security camera where you need it, then find a sunny spot to install the solar panel with the included 3-meter-long cables.
Features:
- Large Built-in Battery Capacity: As a 37Wh power bank that converts solar energy to charge security cameras, it removes your battery anxiety even if you live in a cloudy region.
- Double Charging Ports: It powers two battery cameras at the same time to ensure all-around protection.
- High-performance Monocrystalline Silicon: The solar panel uses monocrystalline silicon solar cells to charge your battery cameras at a high efficiency conversion rate of up to 23%.¹
- Battery Status Monitoring: When connected to EZVIZ battery cameras that support Bluetooth communication, the certified solar panel ensures correct power management via EZVIZ App.²
- Weatherproof Design: Featuring a durable frame and stainless steel screws, the solar panel easily withstands rain, dust, snow and sun.
- Made to Support Versatile Protection: When working with EZVIZ battery cameras, it's helpful to reduce limits and reduce human labour in large gardens, farms, camping areas, construction sites, etc.
Performance
Parameter |
|
Open Circuit Voltage |
6.7V(-5%,+10%) |
Short Circuit Current |
2.3A(-5%,+10%) |
Power Voltage |
5.7V(-5%,+10%) |
Max Power Current |
2.1A(-5%,+10%) |
Max. Power |
12W |
Battery Capacity |
37.23Wh rechargeable battery (battery life
varies, based on settings, usage & temperature) |
Interface |
One Type-C input port, two USB-A output
ports |
Transformation Efficiency |
23% |
IP Grade |
IP65 |
General |
|
Operation Temperature |
-20ºC ~ 60ºC (-4ºF ~ 140ºF), humidity 90% or less
(non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C) |
Material |
High efficiency monocrystalline silicon cell |
Product Dimensions |
202 x 221 x 326mm |
Packaging Dimensions |
370 x 115 x 260mm |
Weight |
Net Weight: 1.45KG With Package: 2.07KG |
In the box |
- Solar Panel with Battery Storage - Adjustable Mounting Bracket - Hex Socket Head Cap Screw - Drill Template - Type-C to Micro USB Transformer (×2) - Mount Bracket (×2) - Power Cable (×2) - L-Shaped Wrench - Screw Kit - Regulatory Information (×2) - Quick Start Guide |
Certifications |
CE / REACH / WEEE / RoHS |
Videos |
---|
No videos available |
Files |
---|
Ezviz CS-PBC12-R100-10AH Datasheet |
Ezviz CS-PBC12-R100-10AH User Manual |
Links* |
---|
EZVIZ website |
EZVIZ support site |
