HiLook Hi-D22F2V2FS 21.5 Inch FHD 100Hz Monitor, Speakers, HDMI, VGA, VESA 75
HiLook by Hikvision
- 1080p HD Resolution
- Wide Viewing Angle
- 3 year guarantee
The HiLook Hi-D22F2V2FS is a 21.5" monitor with 1080p HD resolution and supports VGA and HDMI. It features 100 Hz refresh rate and 3D noise reduction. (Read more)
PRODUCT DETAILS

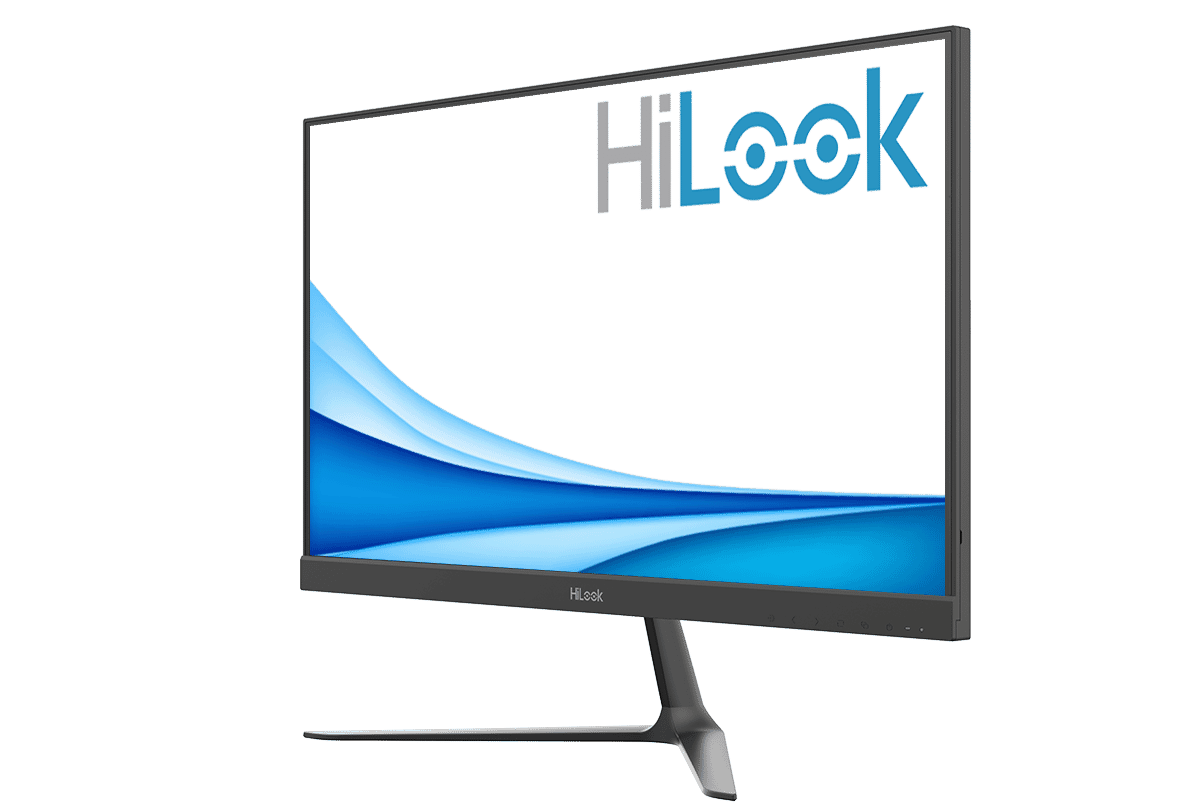

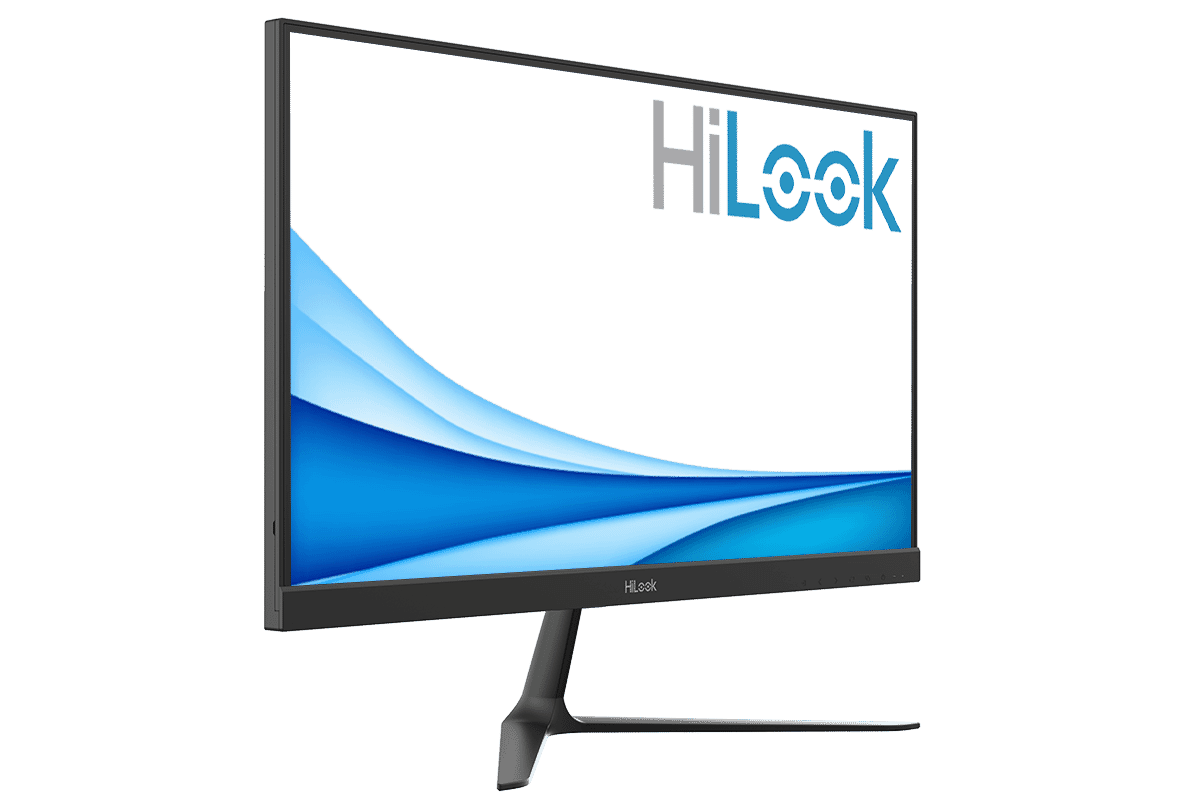

The HiLook Hi‑D22F2V2FS is a 21.5″ Full HD (1920 × 1080) LED monitor purpose-built for surveillance and control-room environments. It boasts a modern look with ultra‑thin borders on three sides, making it both stylish and space-efficient. Its blend of visual performance, thoughtful eye-care features, flexible mounting options, and clean design make it a smart and practical addition to any setup.
Features:
- VA technology for wide, 178° ultra-wide view screen.
- 8 bit LVDS FHD (1920 × 1080) display.
- 100 Hz refresh rate, more fluid and life-like video.
- Ultra-thin device body with ultra-thin border for 3 sides.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
| Display | |
| Screen Size | 21.5 inch |
| Active Display Area | 487.46 (H) mm × 260.28 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.0831 (H) mm × 0.241 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Colour Depth | 8 bit 16.7 M |
| Contrast Ratio | 4000 : 1 |
| Response Time | 14 ms |
| Refresh Rate | 100 Hz |
| Haze | Haze 25%，3H |
| Reliability | 7 × 16 H |
| Colour Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
| Video & Audio Output | Audio Out × 1 |
| Data Transmission Interface | None |
| Control Interface | None |
| Power | |
| Power Supply | DC 12V, 2.0A |
| Power Consumption | ≤ 24 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |

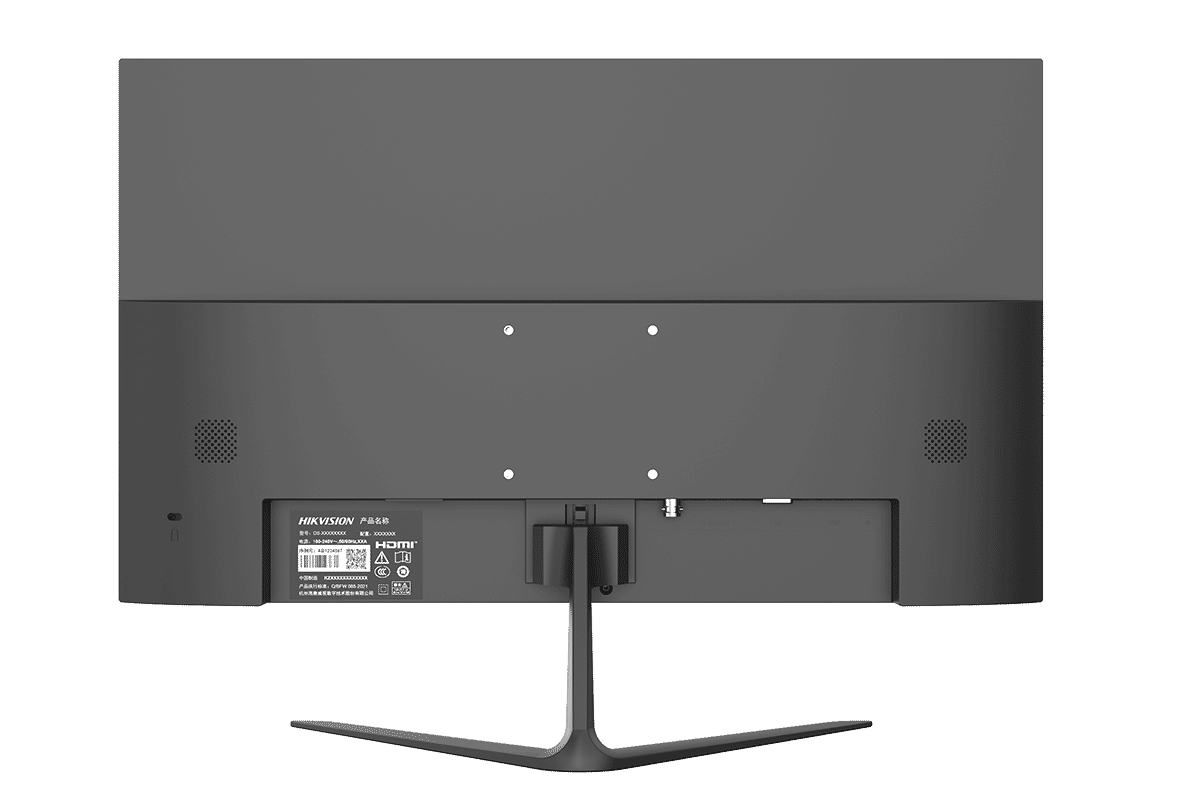

| VESA | 75 mm × 75 mm (4 - M4 × 6 mm) |
| Bezel Width | 2.38 mm (top/left/right), 21.55 mm (bottom) |
| Product Dimensions (W × H × D) | With base: 493.26 (W) mm × 369.12 (H) mm × 162.75(D) mm (19.42 (W) × 14.53 (H) × 6.41 (D)) inch Without base: 493.26(W) mm × 290.14 (H) mm × 42.68 (D) mm (19.42 (W) × 11.42 (H) × 1.68 (D)) inch |
| Package Dimensions (W × H × D) | 652 (W) mm × 445 (H) mm × 116 (D) mm (25.67(W) × 17.52 (H) × 4.57 (D) ) inch |
| Net Weight | 2.0 ± 0.5 kg (4.4 ± 1.1 lb) |
| Gross Weight | 3.2 ± 0.5 kg (7.1 ± 1.1 lb) |
| Packing List | Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
