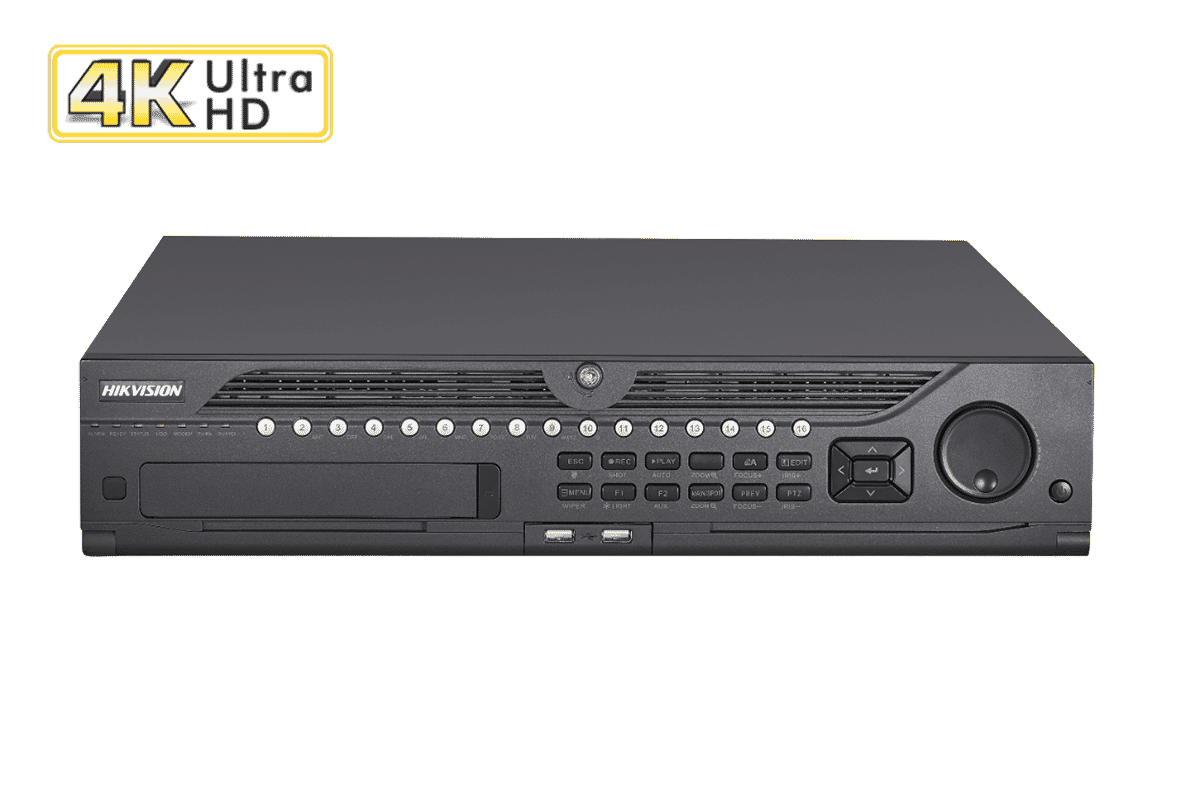

Hikvision DS-9032HUHI-K8 32 Channel 8MP TVI Hybrid DVR
Hikvision
- 32 channels
- 8 mega pixels
- 3 year guarantee
The Hikvision DS-9032HUHI-K8 is an 8 Megapixel Hybrid DVR and supports up to 32 TVI, AHD, CVI or CVBS analogue cameras or up to 64 IP cameras (Read more)
PRODUCT DETAILS
The Hikvision DS-9032HUHI-K4 is a hybrid digital video recorder (DVR) with 32 Channels that supports HDTVI/AHD/CVI/CVBS and IP video inputs and can record up to 8MP. The multiple Video Content Analytics (VCA) allows for both analogue and smart IP cameras and can work both alone as a recorder and cooperate with other devices to form a comprehensive surveillance system.
The DS-9032HUHI-K8 has 32 analogue ports and can support a further 32 IP cameras giving a total of 64 cameras supported.
The DS-9032HUHI-K8 supports H.265+ encoding which improves efficiency by up to 50% & reduces data storage costs and has a hard disk capacity of up to 10TB per HDD.
Interface
|
Index |
Description |
Index |
Description |
| 1 | VIDEO IN |
10 | HDMI1 Interface |
| 2 | AUDIO IN, RCA Connector |
11 | HDMI2 Interface |
| 3 | LINE IN |
12 | LAN Network Interface |
| 4 | CVBS AUDIO OUT and VGA AUDIO
OUT |
13 | USB Interface |
| 5 | VIDEO OUT |
14 | GND |
| 6 | RS-485 Serial Interface, Keyboard
Interface, ALARM IN and ALARM OUT |
15 | 100 to 240 VAC Power Input |
| 7 | RS-232 Serial Interface |
16 | Power Switch |
| 8 | VGA Interface |
17 | AUDIO IN |
| 9 | eSATA Interface |
Features Include:
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input.
- Max 48/64 IP cameras input (up to 12 MP).
- Max 800 m for 1080p and 1200 m for 720p HDTVI signal.
- Up to 10 TB capacity per HDD.
- Support POS triggered recording and POS information overlay.
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 32-ch (up to 64-ch);Up to 12 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI 1 Output | 1-ch, 1920 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-9032HUHI-K8 datasheet |
| Hikvision DS-9032HUHI-K8 quick start guide |
| Hikvision DS-9032HUHI-K8 user manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
