EZVIZ CS-TY2 Indoor Wi-Fi PT Camera
- Smart Night Vision
- Two-Way Talk
- Auto Tracking
The EZVIZ CS-TY2 is a smart indoor Wi-Fi pan & tilt 360° camera designed to provide complete room coverage with intelligent monitoring features. (Read more)
PRODUCT DETAILS
The EZVIZ CS-TY2 is a smart indoor Wi-Fi pan & tilt camera designed to provide complete room coverage with intelligent monitoring features and simple app-based control. Compact, stylish, and easy to install, it is ideal for home security, pet monitoring, nurseries, offices, and small business environments.

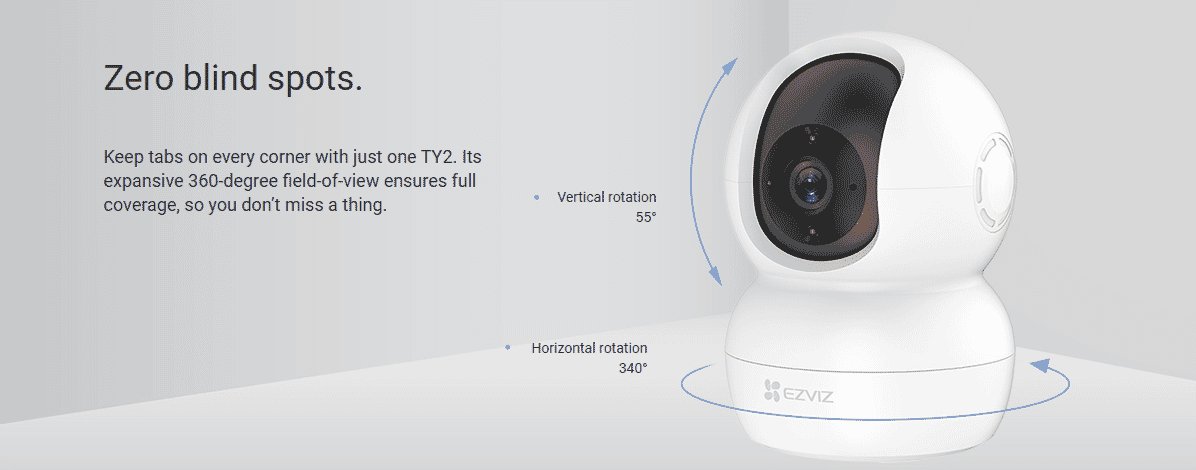

Featuring Full HD 1080p resolution, the TY2 delivers sharp and detailed live video, while its motorised pan and tilt functionality provides near-360° coverage to help eliminate blind spots. With approximately 340° horizontal rotation and 55° vertical movement, you can remotely monitor every corner directly from the EZVIZ app.

The camera includes smart motion detection and auto-tracking, automatically following movement and sending real-time alerts to your smartphone when activity is detected. Built-in two-way audio allows you to communicate with family members, visitors, or pets directly through the app, adding convenience and security.

For reliable day-and-night monitoring, the TY2 features infrared night vision up to 10 metres, ensuring clear visibility even in low-light conditions. Privacy is also enhanced through a dedicated sleep/privacy mode, which conceals the lens when monitoring is not required.
Supporting both microSD card storage (up to 256GB) and optional EZVIZ Cloud storage, the camera provides flexible recording options to suit different user needs
Features:
- Full HD 1080p indoor video monitoring
- Motorised pan & tilt with near-360° coverage
- Smart motion detection with auto-tracking
- Two-way audio for real-time communication
- Infrared night vision up to 10m
- Wi-Fi connectivity with EZVIZ app control
- Privacy/sleep mode for added protection
- Supports microSD cards up to 256GB
- Ideal for homes, offices, nurseries, and pet monitoring
| Camera |
|
| Image Sensor |
F2.4@1/3" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm@ F2.4, view angle: 85° diagonal, 75°
horizontal, 45° vertical |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Compression |
|
| Video Compression |
H.264 |
| Video Bit Rate |
Full HD, HD, Standard. Adaptive bit rate |
| Image |
|
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
Max:15fps; Self-Adaptive during network transmission |
| Network |
|
| Smart Alarm |
Motion detection |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud proprietary protocol |
| Interface Protocol |
EZVIZ Cloud proprietary protocol |
| Interface |
|
| Storage |
MicroSD card slot (Max. 256GB) |
| Power |
Micro USB |
| Wired Network |
RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi |
|
| Standard |
IEEE802.11b/g/n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps |
| Operating
Environment |
|
| Temperature |
-10°C to 45°C (14°F to 113 °F) |
| Humidity |
95% or less (non-condensing) |
| General |
|
| Power Supply |
DC 5V/1A |
| Power Consumption |
5W max |
| IR Range |
MAX. 10 meters (32.81 ft.) |
| Dimensions |
88 x 88 x 124 mm (3.46 x 3.46 x 4.88 inch) |
| Packaging Dimensions |
103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch) |
| Net Weight |
255 g (8.99 oz) |
| In the box |
TY2 Pan/Tilt Camera; Base Screw Kit Power Cable 3m (9.8 ft.) Drill Template Power Adapter ; Quick Start Guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| EZVIZ CS-TY2 Datasheet |
| EZVIZ CS-TY2 User Manual |
| Links* |
|---|
| EZVIZ website |
| EZVIZ support site |
