Hikvision DS-2CE70DF3T-PTLXTS 2MP Hybrid Light Two-way Audio Turret Camera 2.8mm
Hikvision
- PT Camera
- Two Way Audio
- 3 year guarantee
The Hikvision DS-2CE70DF3T-PTLXTS - 2MP hybrid turret camera that combines high-definition video, built-in two-way audio, and hybrid light technology (Read more)
PRODUCT DETAILS
The Hikvision DS-2CE70DF3T-PTLXTS is a 2MP analogue turret camera with a 2.8mm fixed lens that allows 0° to 360° Pan and 0° to 75° rotate, making it ideal for applications when full coverage matters, without the requirement of a bulky PTZ camera. It features built-in two-way audio and hybrid light technology for exceptional 24/7 surveillance. Offering both full-colour imaging and smart IR illumination, this camera ensures clear, detailed images even in challenging lighting conditions.
Designed for flexibility, it supports multiple video formats and is compatible with HD-TVI, AHD, CVI, and CVBS technologies, making it easy to integrate into existing CCTV systems. The built-in microphone and speaker enable real-time two-way communication, enhancing both security and convenience.
Stunning low-light imaging
Enjoy splendid night vision boosted by Super Confocal technology with F1.0 Super Aperture.
Hikvision has gone previous limits, leading the industry by achieving a delicate & complex confocal effect with an F1.0 large-aperture lens, which guarantees equally sharp imaging in IR or visible light.
- ColorVu technology ensures excellent colourful imaging in ultra-low light.
- Super Confocal technology guarantees clear, steady imaging without defocusing when switching from colour to black & white.
Monitoring in a smarter way
Security Intelligence gets more visible with AcuSense-powered smart functions based on data analysis, effectively capturing targets in true colour.
- Motion Detection 2.0 distinguishes persons and vehicles from other objects in the environment, focusing on real security threats with efficient video searches.
- Live Guard (IP) deters trespassers with visual and auditory warnings while sending notifications to users remotely.
Optimize your security with flexible lighting options
Select the lighting mode that best suits your requirements: 24/7 colour, IR (B&W), or Smart. In Smart mode, the camera maintains infrared illumination until an event triggers colour imaging to capture critical details.
When there is no vehicle or person, the camera uses only the infrared light.
When a vehicle or person appears, the white light is automatically triggered, resulting in vivid colour imaging with clear details.
When the vehicle or person leaves, the camera switches back to the infrared light.
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 colour imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Up to 20 m white light distance for bright night imaging
- Up to 25 m IR distance for bright night imaging
- Built-in mic, high quality audio with audio over coaxial cable
- Provide real-time security via built-in two-way audio
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max. 16 times |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV:
126° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Speaker | |
| Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Functions | |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 25 m, White Light: Up to 20 m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Contrast, Sharpness, Anti-banding, AGC |
| Frame Rate | TVI: 1080p @25 fps/30 fps |
| Day/Night Mode | Auto/Colour |
| Wide Dynamic Range (WDR) | ≥120 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| Interface | |
| Video Output | 1 HD analogue output |
| Event | |
| Light Alarm | Flashing Light Alarm (Red and Blue) |
| Audible Alarm | Yes |
| General | |
| Power | 12 VDC ± 25%, max. 12.8 W *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), an 18 VDC adapter is required. |
| Material | Plastic |

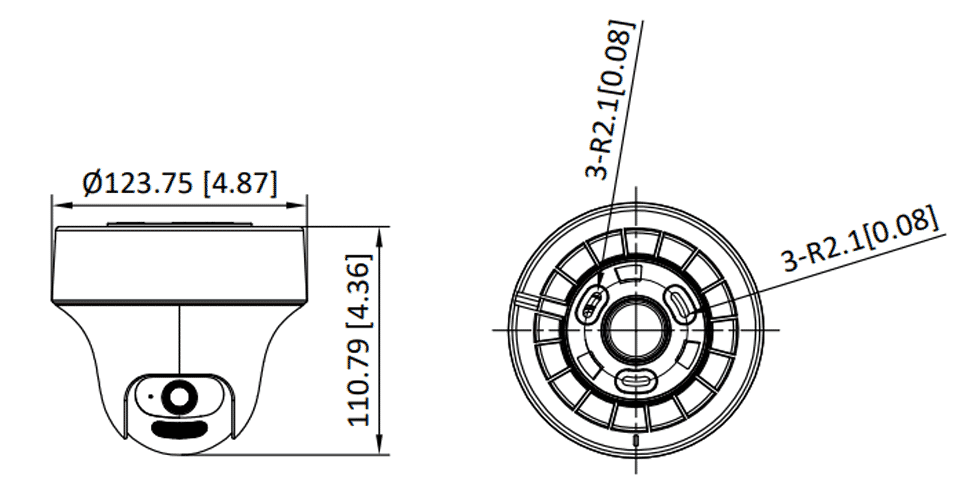

| Dimension | Ø123.75 mm × 110.79 mm (Ø4.87" × 4.36") |
| Approx. 350 g (0.77 lb.) | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
