Hikvision DS-2DE2A404IWG1-E 4MP 4X IR Mini Outdoor Acusense PTZ Camera
Hikvision
- AcuSense Technology
- 4 x Optical Zoom
- 3 year guarantee
The Hikvision DS-2DE2A404IWG1-E is a 4 Megapixel speed dome mini PTZ camera with 4 x optical zoom, & both Acusense & Darkfighter technology (Read more)
PRODUCT DETAILS
The Hikvision DS-2DE2A404IWG1-E is a 4 Megapixel speed dome mini PTZ camera with 4 x optical zoom and infrared distance of up to 20 metres. Intelligent Acusense technology greatly reduces the number of false alerts received and high-quality colour images in ultra-low light scenes are achieved thanks to Hikvision's Powered by DarkFighter Low Light Technology.
In addition, the DS-2DE2A404IWG1-E features a built in microphone for real time audio security.
Deep Learning with AcuSense Technology
The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways
- Alarm will only trigger when the preset intrusion type takes place
- Related videos are sorted by categories for easier search
Users can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced
.png)
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detection: 180m
Observation: 71.4m
Recognition: 36m
Identification: 18m
Features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Built in microphone
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
- Water and dust resistant (IP66) and vandal proof (IK10)
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Colour: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 4x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5° |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.8 |
| Zoom Speed | Approx. 2 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 20 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| PTZ | |
| Movement Range (Pan) | 0° to 355° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | patrol scan,Preset,dome reboot,dome adjust |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 ×
720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed regions for main stream |
| Audio | |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 32 to 160 Kbps (MP2L2), 16 to 64Kbps (AAC-LC), 16 Kbps (G.726) |
| Audio Sampling Rate | 8 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | Chrome80+、Firefox80+、Safari13+、Edge89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ＞52dB |
| Defog | Digital Defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask colour or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| Built-in Speaker | 1 built-in speaker, with effective distance reaching max. 10 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input
impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Reset | Yes |
| Power Output | 12 VDC, max. 60 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Line crossing detection,intrusion detection,region exiting detection,region entrance detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning |
| General | |
| Power | 12 VDC, Max. 9.2 W; PoE (802.3af) |

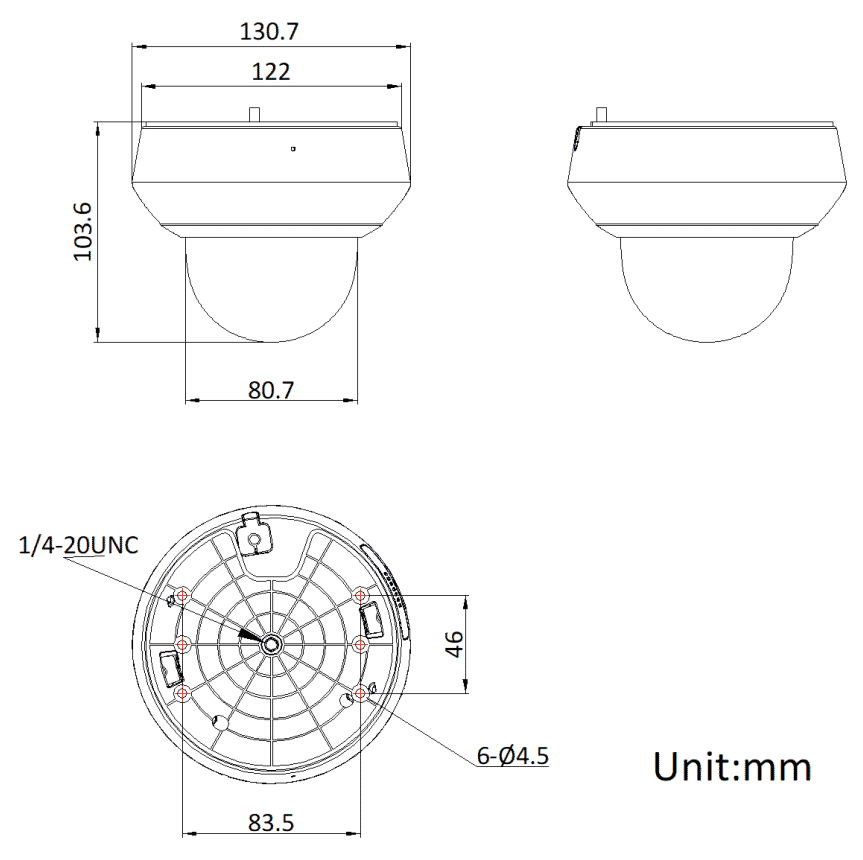

| Dimension | Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00") |
| Weight | Weight: Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.) |
| Operating Condition | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing) |
| General Function | Mirror, password protection |
| Approval | |
| Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-2DE2A404IWG1-E Datasheet |
| Hikvision DS-2DE2A404IWG1-E Quick Start Guide |
| Hikvision DS-2DE2A404IWG1-E User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
