Hikvision DS-2DF7A836IXG-EL(Y) 7A Series 8MP 36X DarkFighter IR Speed Dome
Hikvision
- Darkfighter 2.0 Technology
- 36 x Optical Zoom
- 5 year guarantee
Hikvision DS-2DF7A836IXG-EL(Y) is an 8MP 4K speed dome IP camera with a 362 x optical zoom & excellent low-light performance thanks to Darkfighter 2.0 (Read more)
PRODUCT DETAILS
The Hikvision DS-2DF7A836IXG-EL(Y) is an 8MP 4K speed dome IP camera with a 36 x optical zoom and excellent low-light performance thanks to Darkfighter 2.0 technology. It features smart deep learning functionality such as face capture, perimeter protection, multi-target-type detection, face comparison and vehicle/traffic detection.
Auto tracking allows the camera to automatically follow movement in the scene. Not only does this provide a strong deterrent by giving the impression the camera is being manually operated it also provides close up detail of people and objects that may otherwise have been missed. The DS-2DF7A836IXG-EL(Y) also features a built-in gyroscope to ensure stable image output.
DarkFighter 2.0
Dealing with low-light conditions is always tricky for security solution providers who prioritize image quality. Hikvision is leading the way in low-light imaging from DarkFighter, DarkFighterX to DarkFighterS technologies. Now, the new DarkFighter 2.0 technology uses advanced camera sensors, ultra-large apertures, and new AI-driven technologies to elevate security cameras' low-light performance to a whole new level.
DarkFighter 2.0 uses top-notch hardware, including one or two 1/1.8" sensors and an up to F1.0 aperture, along with AI-enhanced ISP algorithms to produce high-quality images in low-light environments. This technology outperforms traditional ISP methods by incorporating AI-powered noise reduction to improve low-light imagery and enhance detail reproduction. DarkFighter 2.0 excels at capturing still images and objects moving at different speeds, making it ideal for intelligent security applications in complex scenes.
The technology also features an outstanding wide dynamic range and high frame rates, enabling the upgrade from colourful imaging to lifelike colour reproduction.
Intelligent Deep-Learning
The Hikvision DS-2DF7A836IXG-EL(Y) features advanced Deep Learning AI technology, enabling highly accurate detection, classification, and tracking of people, vehicles, and faces in demanding surveillance environments. Designed for professional security applications, these intelligent analytics significantly reduce false alarms while improving monitoring efficiency and incident response.
Facial Detection and Recognition
Facial detection software can be used to sound an alert when the camera spots a face that has previously been stored in its database. This is handy for a variety of applications, such as a VIP visiting the building, or sounding an alert for a known shoplifter.
In addition, the latest facial recognition software will allow you to store up to 30,000 faces over 10 libraries, allowing companies to store all of their staff photographs into the system and immediately be alerted to the presence of a customer or an intruder on the premises.
This could also be used in the reception of a 'members only' club to quickly check membership status and notify the management of non-paying guests.
Perimeter Protection
The DeepInMind range of cameras provide up to 90% accuracy when detecting a human form in a pre-defined area. This is particularly useful in areas such as a school where AcuSense wouldn't be required but certain areas still need to be monitored.
Once a person is detected in the pre-defined area, an alarm can be raised and an event is logged in the playback.
The intelligent software can differentiate between a human and other non-event movements, such as animals or branches blowing in the wind. This greatly reduces the number of false alarms and events are much easier to find on playback.
Multi-Target Type Detection
Looking back through recordings to try and find a particular person or event can be extremely time consuming and frustrating. The Multi-Target Type Detection features allows for filters to be applied which narrows the search and eliminates any person that doesn't fit the search parameter.
For example, if you are looking for a man with glasses, wearing a red top and carrying a back-pack, the DeepInMind software will drill down on this information and only show you the relevant options. If there are still too many subjects to choose from, you can drill down even further, for example, if he was carrying something.
Not only is this a powerful tool to reduce man hours spent reviewing footage, but could prove valuable in identifying a suspect after a crime has been committed.
Road Traffic and Vehicle Detection
Hikvision's Vehicle Information Detection system, engineered with deep learning algorithms, recognizes vehicle features including license plate characters, colour, type, and manufacturer, and detects phone use, seatbelt status, and other violations with much higher efficiency. What’s more, Hikvision’s advanced solutions also offer information detection like positioning of multiple targets, lane use, speed and direction, and a wealth of traffic data.
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Detection: 4320.0m, Observation: 1714.3m, Recognition: 864.0m, Identification: 432.0m
Features:
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- 36 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- Supports rapid focus
- Smart Pan-Tilt Correction
- Built-in gyroscope to ensure stable image output
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
| Camera | |
| Image Sensor | 1/1.8＂ progressive scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Colour: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),0 Lux with IR |
| Shutter Speed | 1/30 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | 36 × optical 16 × digital |
| Slow Shutter | yes |
| Lens | |
| Focal Length | 6.0 mm to 216 mm |
| FOV | Horizontal field of view: 59.1° to 2.0°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Focus | Auto,semi-auto,manual,rapid focus |
| Aperture | F1.2 |
| Zoom Speed | Approx. 4.5 s |
| Illuminator | |
| Supplement Light Range | IR distance: up to 300 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Park Action | Preset, patrol scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Power-off Memory | yes |
| Video | |
| Main Stream | 50 Hz: 100 fps (1920 × 1080) 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720) 60 Hz: 120 fps (1920 × 1080) 60 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720) *High frame rate is supported under monitoring mode only. |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576,
640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | baseline profile||main profile||high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | fixed region |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC) |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark, IP address filter, basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200,Hik-Connect,HikCentral Pro |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Image | |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| SNR | ≥52dB |
| Defog | yes |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | mask colour or mosaic configurable,24 programmable polygon privacy masks |
| Regional Focus | yes |
| Regional Exposure | yes |
| Interface | |
| Video Output | CVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input
impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 alarm inputs, 2 alarm outputs |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB. |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output, vandal-proof alarm, audio exception detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan) |
| Deep Learning Function | |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face
and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000
faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
| Linkage and Tracking | |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. |
| General | |
| Power | 36 VDC± 25%, max. 90 W (Max. 52 W, including max. 6.4 W for IR
and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 52 W, including max. 6.4 W for IR and max. 8 W for heater) |

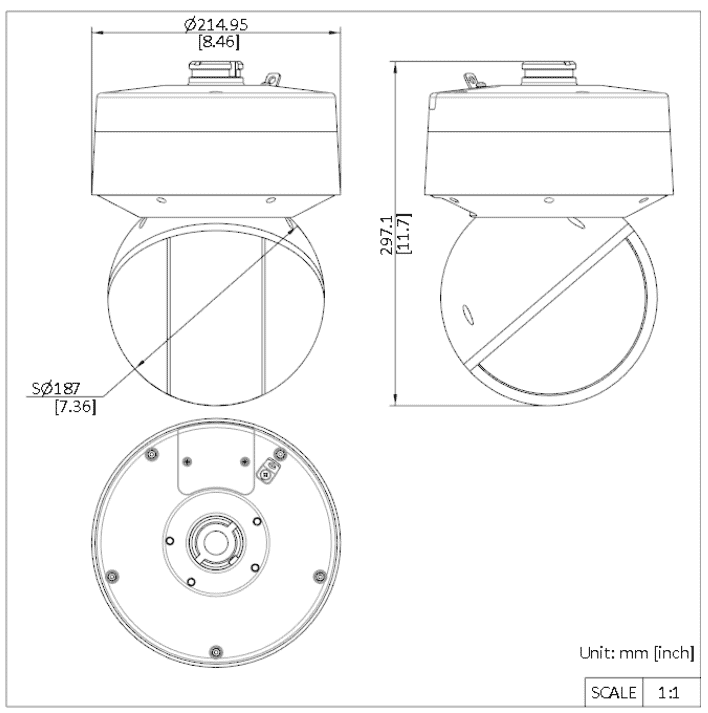

| Dimension | Ø214.95 mm × 297.1 mm (Ø8.46" × 11.7") |
| Weight | Approx. 5 kg (11.02 lb.) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| General Function | mirror, password protection, watermark, IP address filter |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),IC VoC (ICES-003: Issue 6, 2019),RCM (AS/NZS CISPR 32: 2015),KC (KN 32: 2015, KN 35: 2015) |
| Safety | CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
