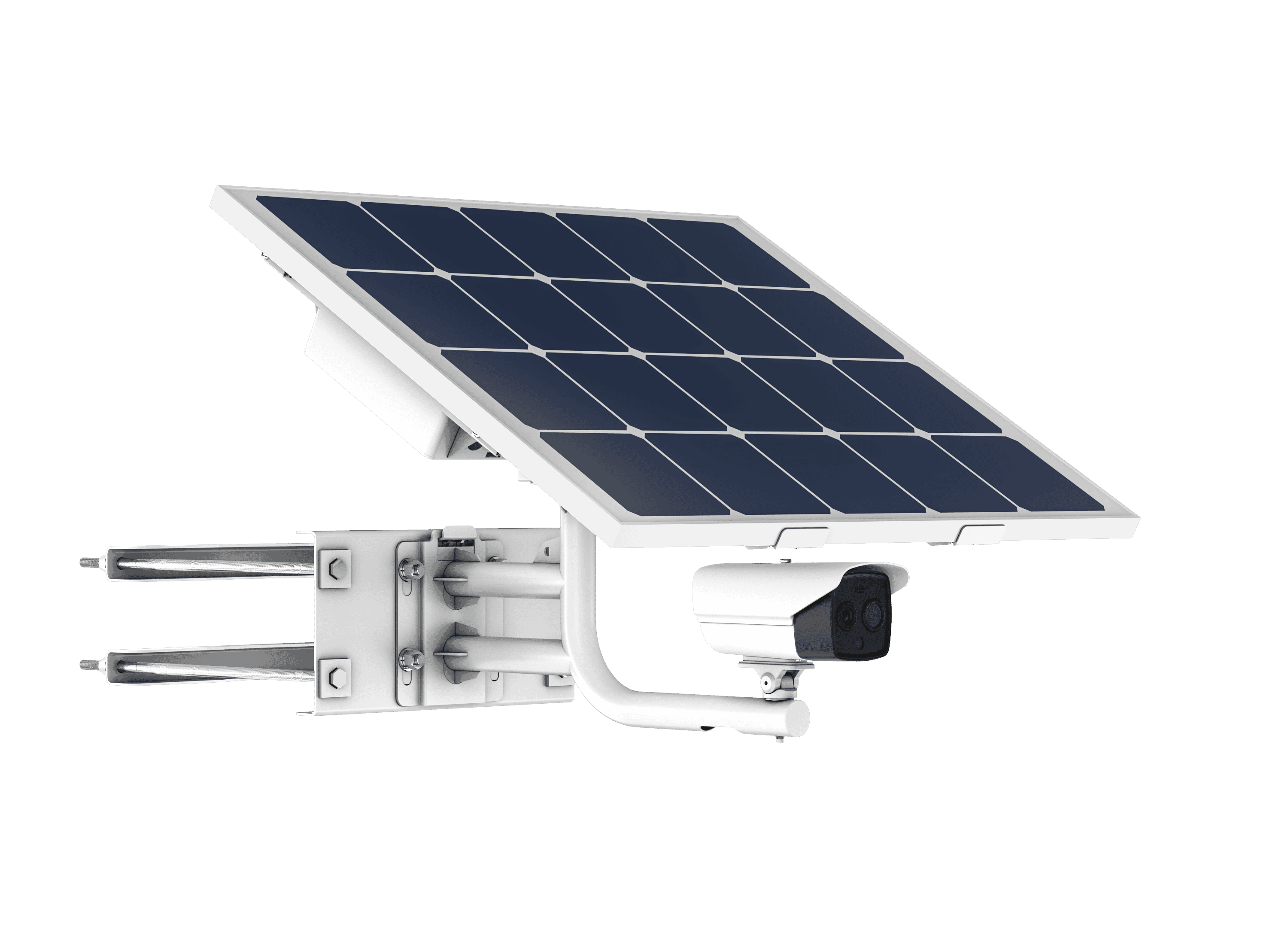

Hikvision DS-2TXS2628-3P/QA/GLT/CH36S80 Solar-powered Thermal Camera Kit
Hikvision
- Solar Powered
- Dual Imaging (Bi-Spectrum)
- Smart Detection
The Hikvision DS-2TXS2628-3P/QA/GLT/CH36S80 is a professional-grade solar-powered thermal camera kit designed for reliable, off-grid detection (Read more)
PRODUCT DETAILS
The Hikvision DS-2TXS2628-3P/QA/GLT/CH36S80 is a professional-grade solar-powered thermal camera kit designed for reliable, off-grid perimeter security and fire detection. Combining advanced thermal imaging technology with solar energy and long-life battery backup, this kit delivers continuous 24/7 monitoring in even the most remote or challenging environments.
Built for critical outdoor security applications, the system provides accurate temperature monitoring, fire detection, and perimeter intrusion detection, while remaining completely self-sufficient thanks to its integrated solar power supply system. This makes it ideal for securing locations where mains power is unavailable or unreliable.
Features:
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- 80 W photovoltaic panel, 36 Ah chargeable lithium battery
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
- Water and dust resistant (IP67)
- Embedded audible alert and strobe light
- High quality detector with 10 years guarantee
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 256 x 192 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 40 mK (@25° C,F# = 1.0) |
| Focal Length | 3.6 mm |
| IFOV | 3.33 mrad |
| Aperture | F1.0 |
| Field of View | 50.0° × 37.3° (H × V) |
| Min. Focusing Distance | 0.5 m |
| Digital Zoom | ×2, ×4 |
| Optical Module | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 2688 × 1520 |
| Min. Illumination | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Field of View | 84.0° ×43.1° (H × V) |
| Focal Length | 4.3 mm |
| Shutter Speed | 1 s to 1/100,000 s |
| White Balance | MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Image Effect | |
| Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Target Coloration | Yes. Supported in white hot and black hot mode |
| Illuminator | |
| IR Distance | Up to 30 m |
| IR Intensity and Angle | Automatically adjusted |
| Audible and Visual Alarm | |
| White Light Range | Up to 30 m |
| Visual Alarm | Yes. White light alarm with adjustable flashing
frequencies |
| Audio alarm | Yes, for three types of audible alarm (VCA and Temperature
Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
| Smart Function | |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Temperature Accuracy | ± 8°C (± 14.4°F) |
| Video and Audio | |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | MicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Mobile Communication | |
| SIM Card Type | MicroSIM |
| Frequency | LTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8 |
| Standard | LTE FDD/LTE TDD/WCDMA |
| Interface | |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Alarm Action | Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
| Audio Input | 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| General | |
| Menu Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Supply | 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | Thermal only mode power consumption: 2.28W The average power consumption of 24 hours: 2.51W The max. power consumption: 6.24W (IR light on) standby power consumption：0.39W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Protection Level | IP67 Standard ,IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14") |
| Adjustment Range | Bullet camera: Tilt: -10 ° to +45°, Pan: -180 ° to +180° Photovoltaic panel: Tilt: 10 ° or 30° |
| Mount | Pole Mount |
| With Package Weight | 33.09kg(72.95lb) |
| Storage Conditions | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Startup and Operating Conditions | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Battery | |
| Battery Type | Lithium |
| Battery Voltage | 10.8 V |
| Battery Capacity | 360 Wh (90 Wh for each battery) |
| Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 2.74 kg (6.0 lb.) |
| Max. Output Voltage | 12.6 V |
| Approval | |
| Protection | Camera: IP67 (IEC 60529-2013),IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection Wind resistance 12 level |
