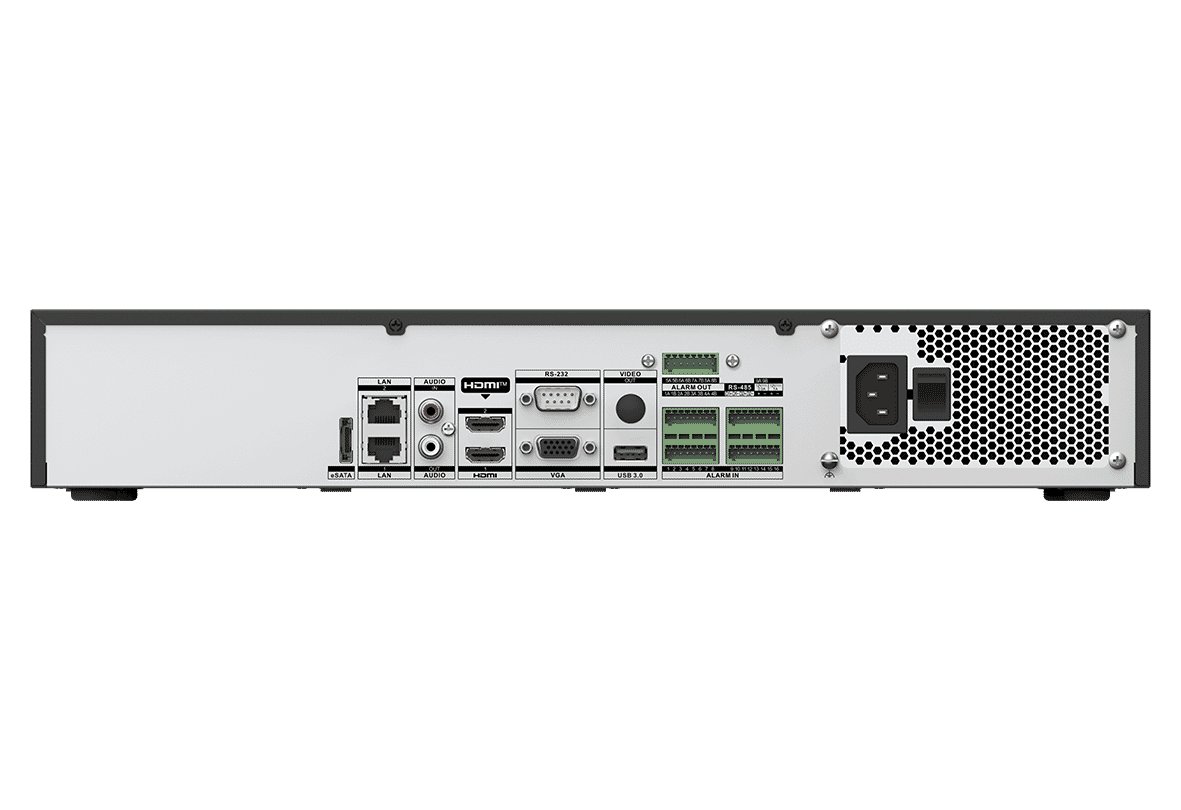

Hikvision DS-7732NXI-I4/VPro I/VPro Series 32 Channel 4K NVR with AcuSeek
Hikvision
- AcuSeek Technology
- Ultra-High Resolution
- 3 year guarantee
The Hikvision DS-7732NXI-I4/VPro is a 32MP 32 channel NVR that features AcuSeek intelligent AI technology for rapid event search and retrieval. (Read more)
PRODUCT DETAILS
The Hikvision DS-7732NXI-I4/VPro is an 32 channel 4K network video recorder that can record from IP cameras with a resolution up to 32MP, and is designed for advanced IP CCTV systems. Part of Hikvision’s professional I/VPro Series, this NVR combines powerful recording performance with intelligent analytics, including the latest AcuSeek technology for rapid event search and retrieval.
The DS-7732NXI-I4/VPro supports up to 4K UHD resolution for crystal‑clear playback and recording, making it ideal for high‑detail surveillance applications.
The new generation of Hikvision NVR's are also compatible with 3rd party network cameras, which makes updating existing installs even easier and more cost effective.
Hikvision AcuSeek – Intelligent Event Search Made Easy
AcuSeek is Hikvision’s next‑generation intelligent search technology, designed to make locating important video events faster, easier, and more accurate. Instead of manually scrolling through hours of footage, AcuSeek allows operators to instantly filter and find specific events based on people and vehicle detection criteria.
Working seamlessly with AcuSense-enabled cameras and compatible Hikvision NVRs, AcuSeek indexes recorded footage by event type. This enables security personnel to search by human or vehicle targets, detection zones, and even time frames—dramatically reducing search time and improving investigation efficiency.

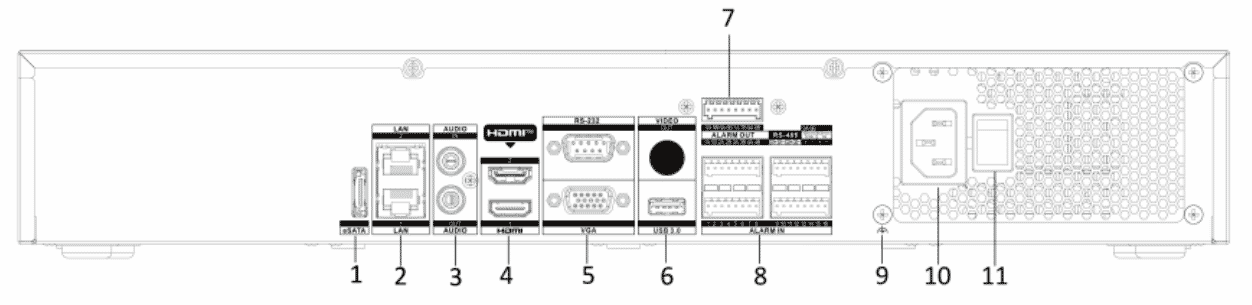

Interface
| No. | Description |
|---|---|
| 1 | eSATA interface |
| 2 | LAN interfaces |
| 3 | Audio in and out |
| 4 | HDMI interface |
| 5 | RS-232 and VGA interfaces |
| 6 | USB 3.0 interface |
| No. | Description |
|---|---|
| 7 | Alarm out, RS-485, Ctrl 12V, and DC
12V |
| 8 | Alarm in |
| 9 | GND |
| 10 | Power supply |
| 11 | Power switch |
Features:
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on Guanlan Large-Scale AI Models
- Up to 32-ch AcuSeek and AcuSearch function
- Up to 8-ch facial recognition for face picture
- Up to 32-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
| Intelligent Analytics | |
| AI by NVR | Facial recognition |
| AI by NVR and Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
| Engine | 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek |
| AcuSearch | |
| Performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day. |
| AcuSeek | |
| Performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day. |
| Search Language | English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian, Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian, Brazilian Portuguese, Traditional Chinese |
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 8-ch |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | 4-ch human face capture (HD network camera, 4-ch 2MP, 2-ch 4MP, 1-ch 8MP, H.264/H.265) |
| ANPR | |
| By Camera | All channels Support Countries & Regions: 1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia 2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, The United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein 3. Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia, Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon 4. Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya |
| Vehicle Attributes | Plate number, license plate color, license plate type |
| Plate Attributes | Vehicle brand, vehicle color, vehicle type |
| Video and Audio | |
| IP Video Input | 32-ch |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | HDMI1: 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920
× 1080 / 60 Hz, 1280 × 720 / 60 Hz HDMI2: 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | NA |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding | |
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
| Synchronous playback | 16-ch |
| Live View Window Division | 1/2/4/6/8/9/16/25/36 |
| Aux Port Window Division | 1/2/4/6/8/9/16/25/36 |
| Decoding Capability | Enable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Network | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Auxiliary Interface | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 20 TB capacity for each disk |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2× USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 1.5U chassis |
| Dimension (W × D × H) | 440 x 391 x 72 mm（17.32" x 15.39" x 2.81"） |
| Weight | ≤5 kg (without HDD, 11.02 lb.) |
| Certification | |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
