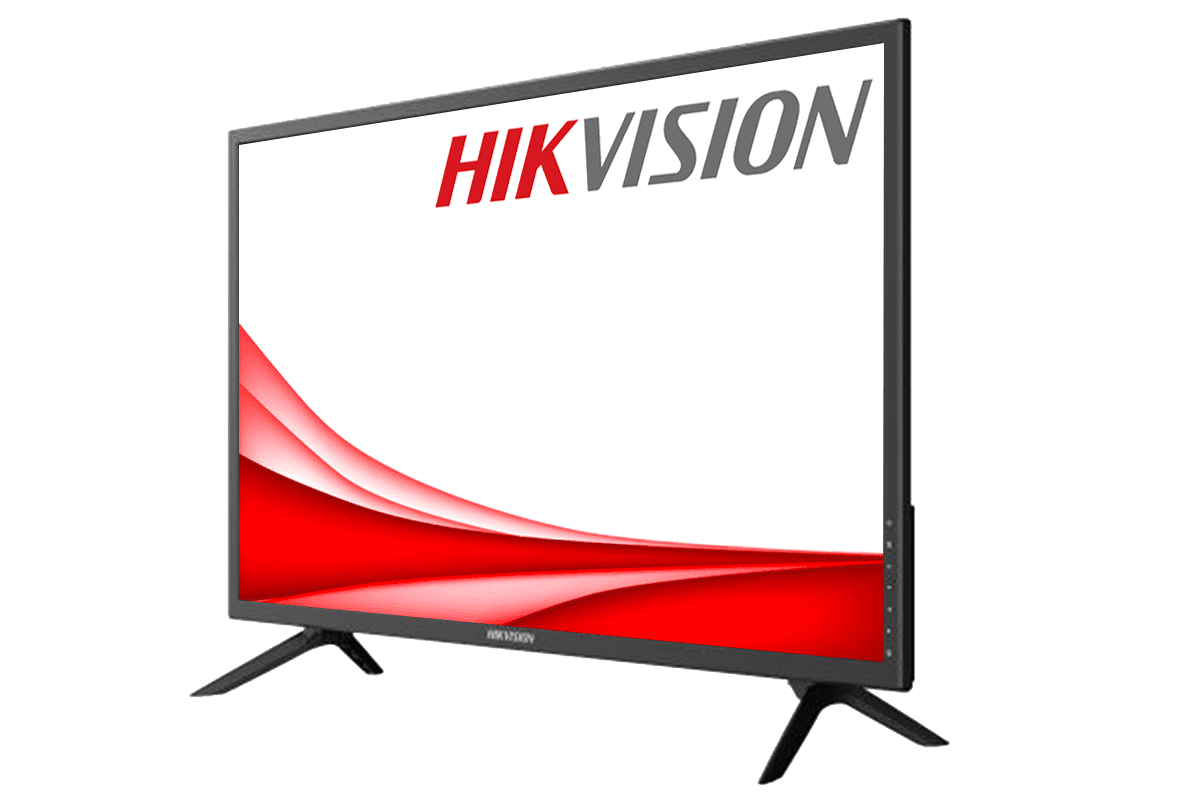

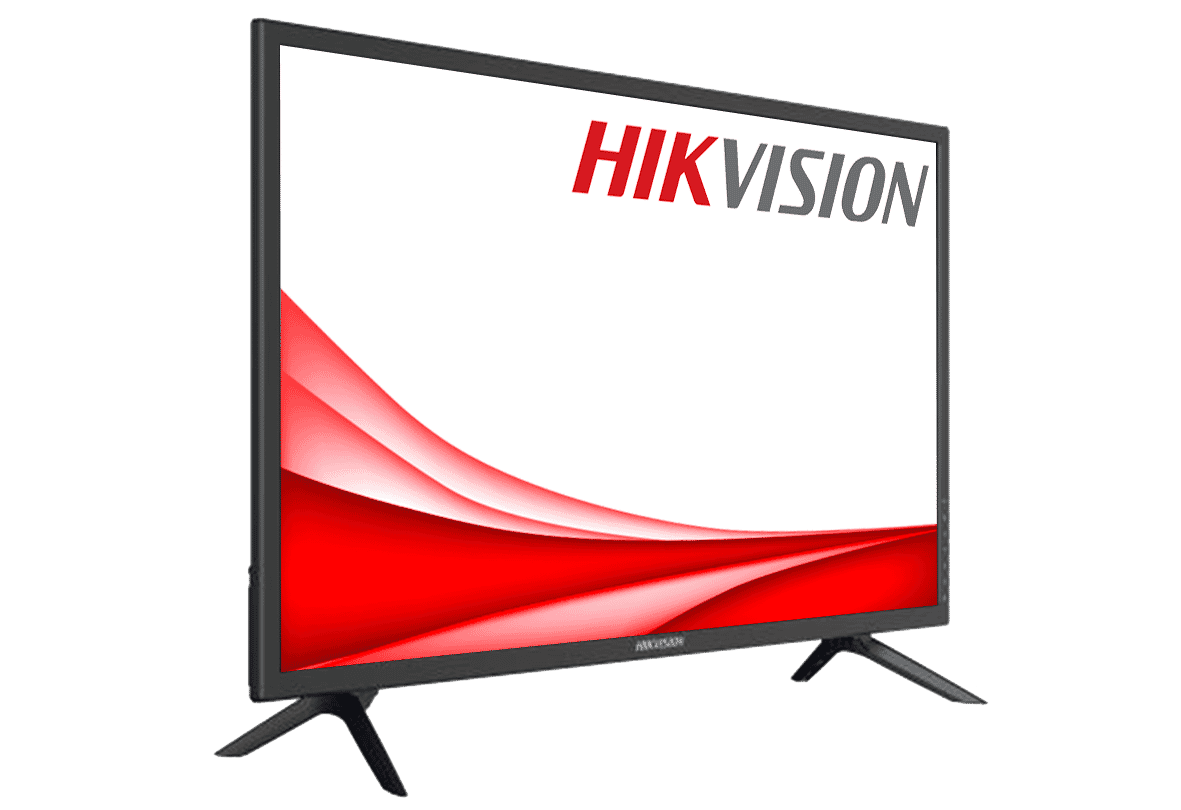

Hikvision DS-D5032F3-1V0S 32 Inch FHD VA 75Hz Monitor HDMI, VGA, Speaker
Hikvision
- 1080p HD Resolution
- Ultra-Thin Border
- 3 year guarantee
The Hikvision DS-D5032F3-1V0S is a 32" monitor with 1080p HD resolution and supports VGA, HDMI, audio out. It features built-in speakers & VESA 100. (Read more)
PRODUCT DETAILS
The Hikvision DS-D5032F3-1V0S is a 32" monitor with an 8 bit LVDS FHD1080p resolution display and supports multiple interfaces including HMDI, VGA and Audio Out. It features an D-LED backlit screen and the 1080p display provides excellent colour rendition and enhanced resolution. Its ultra-thin bezels showcase the display and offer a sleek modern look.
The DS-D5032F3-1V0S boasts a 178° viewing angle and built-in 10W 8Ω stereo speakers, and can be desk mounted, or wall mounted using 100 x 100 VESA.
Hikvision's incredibly durable monitors are specially designed for security and control environments. Featuring industry grade panels and sharp, brilliant image clarity, the DS-D5022FC-C is the ideal monitor for every viewing need - 24 hours a day, 7 days a week.
Features:
- VA technology, 178° ultra-wide view screen.
- 8 bit LVDS FHD (1920 × 1080) display.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
| Display | |
| Screen Size | 32 inch |
| Active Display Area | 698.4 (H) mm × 392.85 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | D-LED |
| Pixel Pitch | 0.12125 (H)mm x 0.36375 (V) mm |
| Brightness | 300 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Colour Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Response Time | 8 ms |
| Refresh Rate | Typ. 60 Hz, Max. 75 Hz |
| Haze | Haze 2 % |
| Reliability | 7 × 24 H |
| Colour Gamut | 72 % NTSC |
| Interface | |
| Video & Audio Input | VGA × 1，HDMI 1.4 × 1，Audio Output × 1 |
| Video & Audio Output | Speaker(8Ω 10W) × 2 |
| Data Transmission Interface | None |
| Control Interface | None |
| Power | |
| Power Supply | 100~240 VAC, 50/60 Hz |
| Power Consumption | ≤ 48 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 100 mm × 100 mm (4 - M6 × 10 mm) |
| Bezel Width | 16.7 mm (top/left/right), 20.5 mm (bottom) |
| Product Dimensions (W × H × D) | With base: 735.08 (W) mm × 489.16 (H) mm × 207.95 (D) mm Without base: 735.08 (W) mm × 433.46 (H) mm × 80.19 (D) mm |
| Package Dimensions (W × H × D) | 808 (W) mm × 510 (H) mm × 140 (D) mm |
| Net Weight | 4.55 ± 0.5 kg |
| Gross Weight | 6.1 kg ± 0.5 kg |
| Packing List | Monitor × 1, Base component × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1，remote control × 1 , Base screw × 6，Wall-mount screw × 4 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-D5032F3-1V0S Datasheet |
| Hikvision DS-D5032F3-1V0S User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
