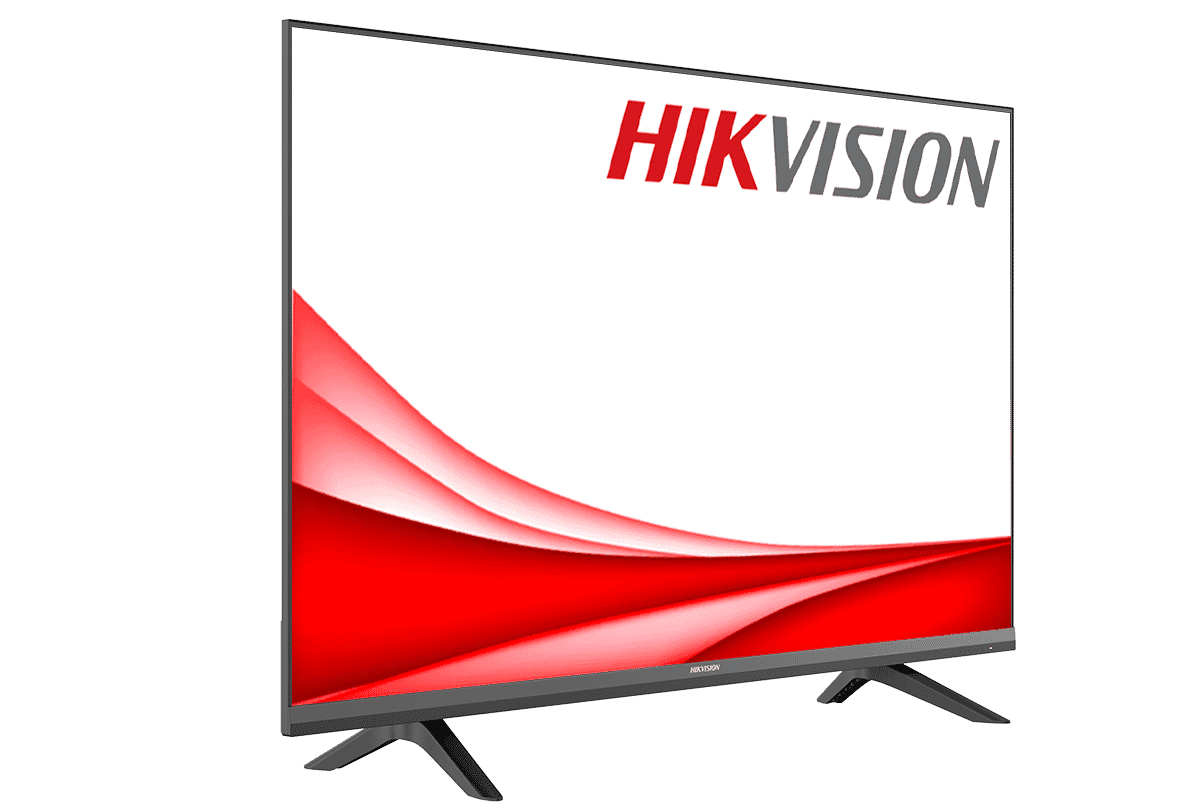

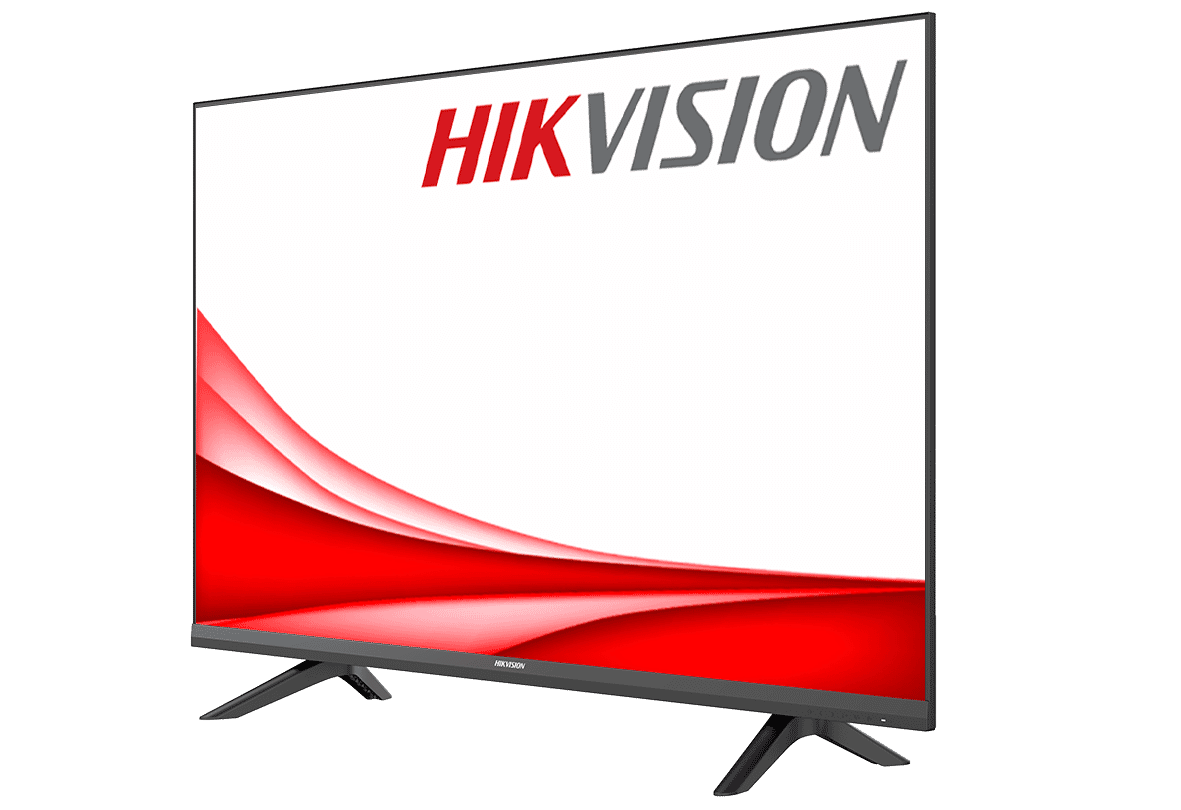

Hikvision DS-D5043U3-1V0S 43-Inch UHD 60Hz Monitor, Speaker VESA, VGA, HDMI, USB
Hikvision
- 4K UHD Resolution
- Wide Viewing Angle
- 3 year guarantee
The Hikvision DS-D5043U3-1V0S is a 43" 4K monitor designed for surveillance systems, with multiple inputs, a narrow front bezel and built in speakers (Read more)
PRODUCT DETAILS
The HikvisionDS-D5043U3-1V0S is a 43" monitor with ultra-high 4K resolution and supports dual interfaces including HDMI, DP and USB. It features an D-LED screen with an ultra-high 4K display, low blue light feature to protect eyes, and 3D noise reduction.
Hikvision's incredibly durable monitors are specially designed for security and control environments. Featuring industry grade panels and sharp, brilliant image clarity, the DS-D5043U3-1V0S is the ideal monitor for every viewing need - 24 hours a day, 7 days a week.
4K Ultra HD Display
The DS-D5227U3-1P0 presents a clearer image with more detail and a lifelike viewing experience, offering incredible detail when zoom in.
When combines with a 4K camera, the DS-D5043U3-1V0S can greatly enhance the performance of the entire surveillance system.
Features:
- Ultra HD 3840 ×2160 @60 Hz.
- Wide viewing angle: Horizontal 178°, Vertical 178°.
- Ultra-thin device body with ultra-thin border for 3 sides.
- Multiple interfaces: VGA, HDMI, USB 2.0
- Build-in speaker, Audio 10W*2.
- Low blue light design for eye care.
- 3D noise reduction.
- Support VESA wall mount.
| Display | |
| Screen Size | 43 inch |
| Active Display Area | 941.184 (H) mm × 529.416 (V) mm |
| Resolution | 3840 × 2160 @60 Hz |
| Backlight | D-LED |
| Pixel Pitch | 0.2451 (H) × 0.2451 (V) mm |
| Brightness | 300 cd/m2 |
| Viewing Angle | 178° / 178° |
| Color Depth | 8 bit+FRC |
| Contrast Ratio | 4000 : 1 |
| Response Time | 6.5 ms (typ) |
| Refresh Rate | 60 Hz |
| Haze | 25% |
| Colour Gamut | 72% NTSC |
| Reliability | 7 * 24H |
| Interface | |
| Video & Audio Input | HDMI ×1，DP × 1，VGA × 1，LINE IN × 1 |
| Video & Audio Output | Speaker OUT × 2 ( 8Ω 10W ) |
| Data Transmission Interface | USB2.0 × 1 |
| Control Interface | RS232-IN × 1，RS232-OUT × 1 |
| Power | |
| Power Supply | 100-240 V～, 50/60 Hz, 1.0 A Max |
| Power Consumption | ≤80W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% ~ 90% RH (Non-Condensing) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 5% ~ 90% RH (Non-Condensing) |
| General | |
| Speaker | 8 Ω 10 W ×2 |
| Casing Material | Plastic |

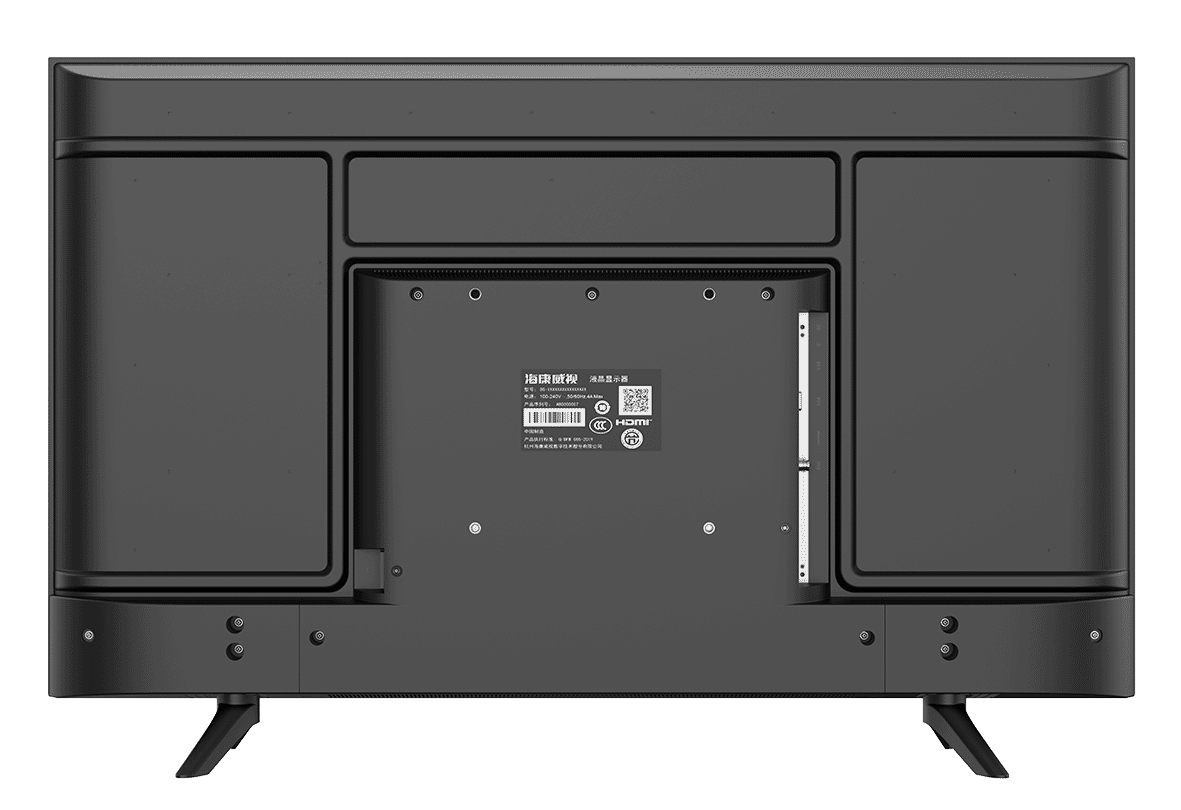

| VESA | 200 mm × 200 mm（4 - M6 × 8 mm） |
| Bezel Width | 1.1 mm (top/left/right) , 24 mm (bottom) |
| Product Dimensions (W × H × D) | Without base：956.7(W) mm × 561.65(H) mm × 76.06(D) mm 37.67(W) inch × 22.11 (H) inch × 2.99 (D) inch， With base：956.7(W) mm × 616.21(H) mm × 242.11(D) mm 37.67 (W) inch × 24.26 (H) inch × 9.53 (D) inch |
| Package Dimensions (W × H × D) | 1073(W)mm×668(H)mm×161(D) mm (42.24 (W) × 26.3 (H) × 6.34 (D)) inch |
| Net Weight | 6.81 ± 0.5 kg (15.01 ± 1.1 lb.) |
| Gross Weight | 9.88 ± 0.5 kg (21.78 ± 1.1 lb.) |
| Packing List | Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6 |
| Remarks | *The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information. |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-D5043U3-1V0S Datasheet |
| Hikvision DS-D5043U3-1V0S User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
