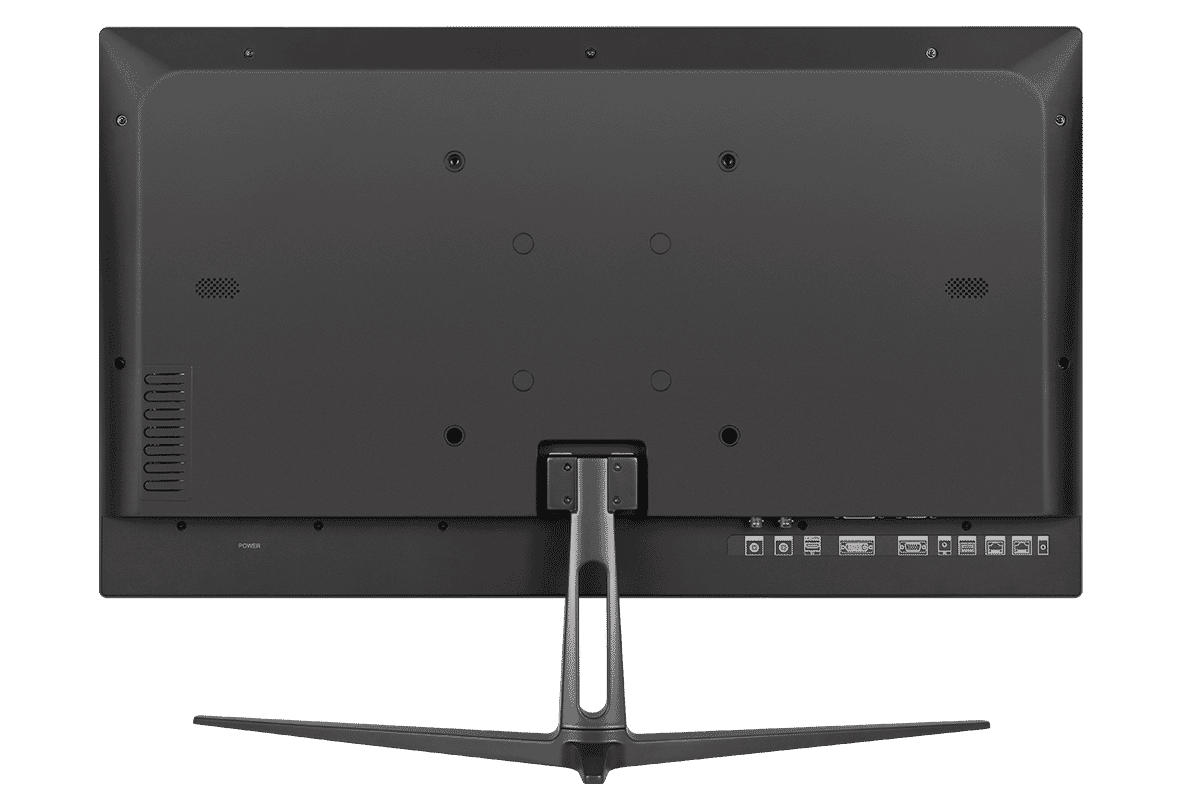

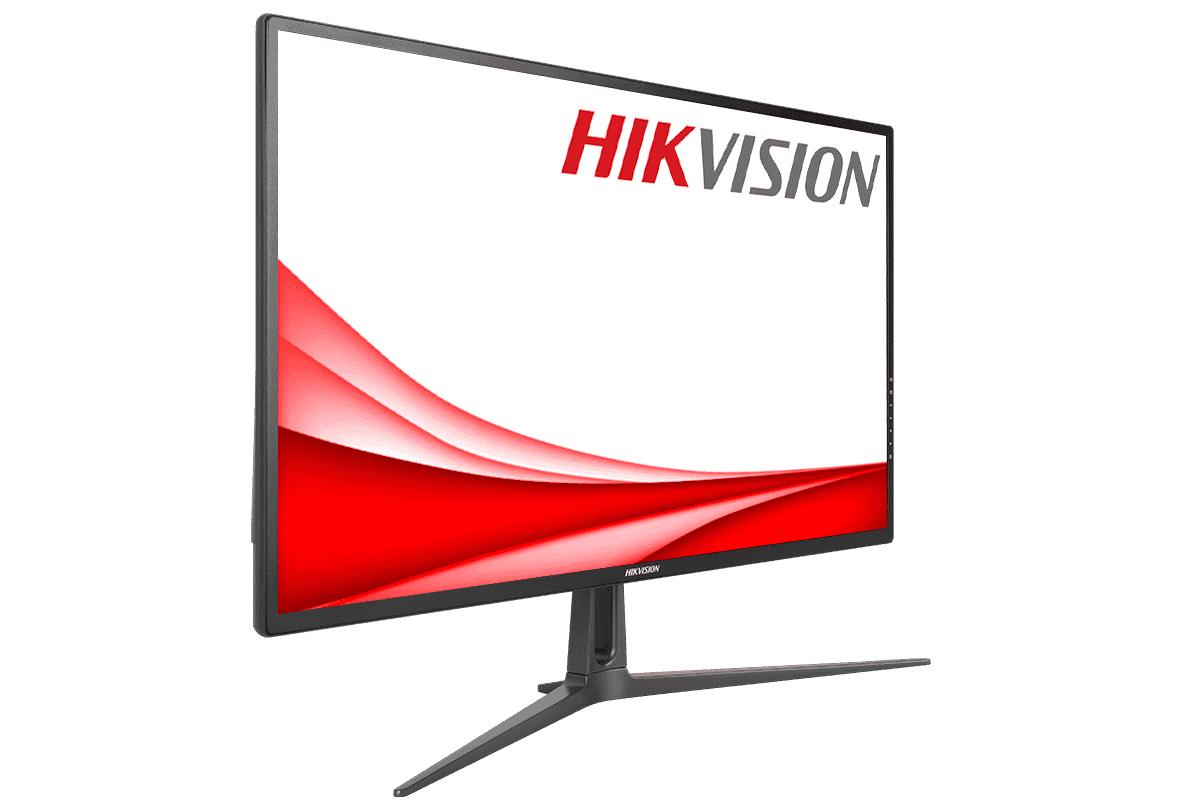

Hikvision DS-D5232F2-1V1S 32 Inch FHD Borderless Monitor HDMI, VGA
Hikvision
- Borderless Monitor
- Dual interface of HDMI and VGA
- 3 year guarantee
The Hikvision DS-D5232F2-1V1S is a professional-grade 32-inch Full HD borderless monitor, designed for crystal-clear visuals and reliable performance (Read more)
PRODUCT DETAILS
The Hikvision DS-D5232F2-1V1S is a professional-grade 32-inch Full HD borderless monitor, designed for crystal-clear visuals and reliable performance in demanding environments. Perfect for use in CCTV monitoring, control rooms, retail displays, and office applications, it delivers vivid detail, wide viewing angles, and versatile connectivity in a sleek, modern design.
Features:
- High reliable components for 7×24 working
- 178° ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
| Display | |
| Screen Size | 32 inch |
| Active Display Area | 698.4 (H) mm × 392.85 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.12125 (H)mm x 0.36375 (V) mm |
| Brightness | 350 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Response Time | 8 ms |
| Refresh Rate | Typ. 60 Hz |
| Haze | Haze 2 % |
| Reliability | 7 × 24 H |
| Color Gamut | 72 % NTSC |
| Interface | |
| Video & Audio Input | CVBS x 1，HDMI1.4 x 1，DVI x 1，VGA x 1，Audio IN x 1 |
| Video & Audio Output | Speaker(8Ω 2W) × 2，CVBS x 1 |
| Data Transmission Interface | USB2.0 x 1 |
| Control Interface | RS232 IN x 1，RS232 OUT x 1 |
| Power | |
| Power Supply | 100~240 VAC, 50/60 Hz |
| Power Consumption | ≤ 80 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 200 mm × 200 mm (4 - M4 × 10 mm) |
| Bezel Width | 11.42 mm (top/left/right), 16.98 mm (bottom) |
| Product Dimensions (W × H × D) | With base: 723.24 (W) mm × 533.08 (H) mm × 212.14 (D) mm (
28.47 (W) inch × 20.99 (H) inch × 8.35 (D) ) inch; Without base: 723.24 (W) mm × 423.16 (H) mm × 52 (D) mm (28.47 (W) inch × 16.66 (H) inch × 2.05 (D) inch) |
| Package Dimensions (W × H × D) | 898 (W) mm × 544 (H) mm × 153 (D) mm |
| Net Weight | 6.15 ± 0.5 kg |
| Gross Weight | 8.65 kg ± 0.5 kg |
| Packing List | Monitor × 1, Power Cord （1.8m）×1，Base component × 1, User manual × 1, Multilingual manual × 1，remote control × 1, Screws in 1 Package，Double-end Studs in 1 Package |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-D5232F2-1V1S Datasheet |
| Hikvision DS-D5232F2-1V1S User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
