Hikvision iDS-2CD7186G0-IZHSY 8MP DeepinView Dome IP Camera - 2.8-12mm
Hikvision
- Face Recognition
- DeepinView Technology
- 5 year guarantee
The Hikvision iDS-2CD7186G0-IZHSY is an intelligent 8 MP camera from their DeepinView range, with a motorised varifocal lens option of 2.8 - 12 mm. (Read more)
PRODUCT DETAILS
The Hikvision iDS-2CD7186G0-IZHSY is a 8 Megapixel camera from their Deepinview range, with a motorised varifocal lens option of 2.8 - 12 mm and a 1/1.8" progressive scan CMOS chip. The intelligent deep learning functions include facial recognition and Multi-Target-Type detection. The metal case is rated IP67 against dust and water ingress, and features protection for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometres (1.24 miles) away from coastlines, as well as areas affected by acid rain.
The iDS-2CD7186G0-IZHSY also features built-in dual microphones & speaker for added 2-way audio security.
Deep Learning Technology
The intelligent deep learning technology on Hikvisions range of DeepInView cameras offer a host of useful features to improve accuracy and offer greater control in both live feeds and playback. These include:
Facial Detection and Recognition
Facial detection software can be used to sound an alert when the camera spots a face that has previously been stored in its database. This is handy for a variety of applications, such as a VIP visiting the building, or sounding an alert for a known shoplifter.
In addition, the latest facial recognition software will allow you to store up to 30,000 faces over 10 libraries (150,000 faces in total), allowing companies to store all of their staff photographs into the system and immediately be alerted to the presence of a customer or an intruder on the premises.
This could also be used in the reception of a 'members only' club to quickly check membership status and notify the management of non-paying guests.
People Counting
Unlike the conventional 'Top Down' method of people counting when using surveillance cameras, the latest deep learning software brings a greater level of accuracy and intelligence by counting each individual face entering the building. The software can then eliminate members of staff and security guards to give a specific count of actual customers. This can also be used to eliminate repeat customers over a set timescale to give you an solid reading of each unique customer.
With Hik-Central software, you can build up daily, weekly and monthly reports based on customer data. When used in conjunction with the DeepInView software, a more accurate report can be generated and actual customers can be tracked, not just an overview of bodies on the premises.
This also allows for a demographic view to be created, such as age, gender and even facial expressions, providing valuable data for marketing research.
Multi-Target Type Detection
Looking back through recordings to try and find a particular person or event can be extremely time consuming and frustrating. The Multi-Target Type Detection features allows for filters to be applied which narrows the search and eliminates any person that doesn't fit the search parameter.
For example, if you are looking for a man with glasses, wearing a red top and carrying a back-pack, the DeepInMind software will drill down on this information and only show you the relevant options. If there are still too many subjects to choose from, you can drill down even further, for example, if he was carrying something.
Not only is this a powerful tool to reduce man hours spent reviewing footage, but could prove valuable in identifying a suspect after a crime has been committed.
Hard Hat Detection
On construction sites or other dangerous areas, safety can be ensured by enforcing a requirement that all staff and visitors wear a hard hat at all times. If this procedure is not followed properly, accidents can happen which may result in serious injury or even death.
To ensure the safety of every person onsite, the DeepInMind software can detect whether a person is wearing a hard had or not and instantly trigger an alarm. This creates an event on the playback which can be easily accessed via the recorder.
The alarm and playback event will also be triggered if a person removes their hard hat and does not put it back on again.
Perimeter Detection
The DeepInMind range of cameras provide up to 90% accuracy when detecting a human form in a pre-defined area. This is particularly useful in areas such as a school where AcuSense wouldn't be required but certain areas still need to be monitored.
Once a person is detected in the pre-defined area, an alarm can be raised and an event is logged in the playback.
The intelligent software can differentiate between a human and other non-event movements, such as animals or branches blowing in the wind. This greatly reduces the number of false alarms and events are much easier to find on playback.
Queue Detection
Any business with a large customer base can suffer from, and lose business to, long queues or extended waiting times. To help manage these issues, the DeepInMind software can monitor queuing areas and sound an alarm if it gets too busy, or if customers are experiencing a longer-than-usual time to be served.
The camera can be set to monitor 3 separate zones simultaneously and raise an alarm if any of the queues become longer than the maximum number set to be permitted. For example, if a shop has 3 tils and the maximum permitted queue length is 5 people, the moment 6 people are queuing at one of the tils, the camera will raise an alert and inform the user which zone needs attention.
The face detection will also monitor anybody waiting in the area and sound an alert if they have been waiting longer than a pre-determined time.
This information can then be used to create a graph showing the busiest times, which enables managers to plan work rotas and ensure there is enough staff coverage when needed.
DORI
DORI - Recommended operational range of the camera
DORI is a standardized system that provides a clear framework for evaluating the effectiveness of CCTV cameras. It is based on the European standard EN 62676-4, which defines specific criteria for detecting, observing, recognizing, and identifying objects or individuals within a camera's field of view. For more information on understanding the DORI metrics, please read our blog article here.
The DORI specifications for this camera are:
Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
Features:
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Colour: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 98.0° to
38.1°, vertical FOV 51.4° to 21.6°, diagonal FOV 118.0° to
44° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture | 2.8 to 12 mm: F1.2 to F2.5 |
| DORI | |
| DORI | Wide: 2.8 to 12 mm: D (Detect): 89.2 m, O (Observe): 35.4 m, R (Recognize): 17.8 m, I (Identify): 8.9 m Tele: 2.8 to 12 mm: D (Detect): 220.0 m, O (Observe): 87.3 m, R (Recognize): 44.0 m, I (Identify): 22.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: Monitoring: 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| AI Open Platform | |
| Model Specification | Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model) |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3072 ×
1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 ×
480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720,
704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 ×
480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 ×
480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream:
H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network
Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE
11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Image Stabilization | EIS |
| Interface | |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Built-in Microphone | Yes, 2 built-in microphones |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m |
| Audio | 1 input (line in), 3.5 mm connector,
three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7
KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Power Output | 12 VDC, max. 100 mA |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection |
| Smart Event | scene change detection, audio exception detection, defocus detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
| Deep Learning Function | |
| Multi-target-type Detection | Supports simultaneous detection and
capture of human body, face, and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle |
| Face Capture | Detects up to 120 faces simultaneously,
captures up to 40 face pictures per frame simultaneously and
uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures, Supports best shot and quick shot for capture mode, Gets 7 face features |
| Face Comparison | Up to 10 face libraries. 30,000 faces
for each library. 150,000 faces in total, Supports face library encryption |
| Metadata | Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection |
| Perimeter Protection | Line crossing, intrusion, region
entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering |
| People Counting | Supports Multi-Dimension People
Counting, Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), Supports real-time uploading and uploading by statistic cycle, Supports generating daily, weekly, monthly or annually reports, Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval, Supports face feature deduplication, Supports people flow data replenishment |
| Queue Management | Supports up to 8 detection regions, and
independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic description of visits (by
calculating amount of people or amount of dwell time) in a
configured area., Two report types are available, space heat map and time heat map line chart. |
| Hard Hat Detection | Detects up to 30 human targets
simultaneously Supports up to 4 shield regions |
| Regional People Counting | Supports up to 8 detection regions, and
independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B) |
| On/Off Duty Detection | Supports up to 8 detection regions, and
independent arming schedule and linkage method Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration |
| General | |
| Power | 12 VDC ± 25%, 0.97 A, max. 11.43 W,
three-core terminal block, reverse polarity protection, 24 VAC +24.9%/-25%, 0.73 A, max. 10.67 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.19 A to 0.28 A, max. 11.92 W |
| Material | Base: metal, cover: metal |

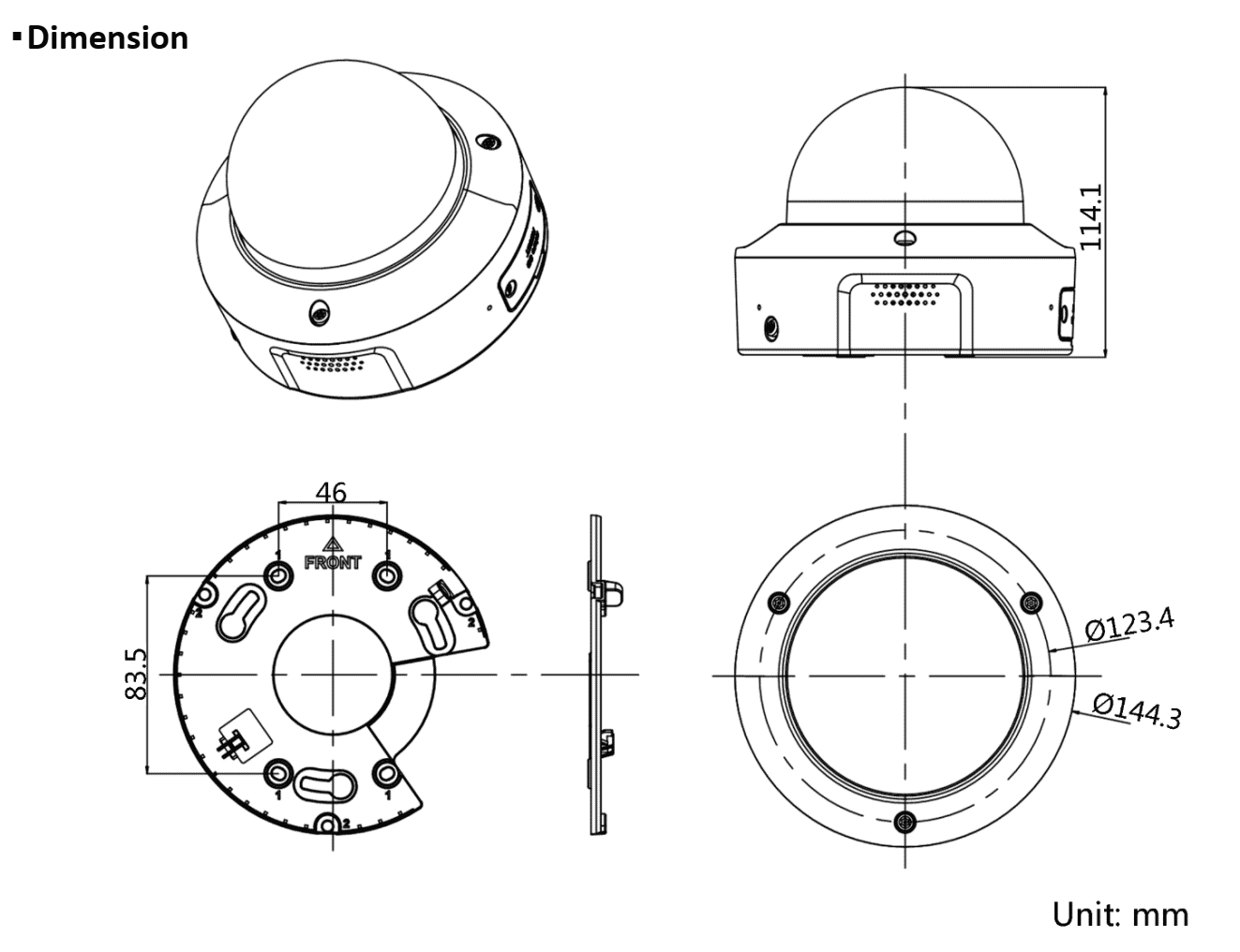

| Dimension | Ø144.3 mm × 114.1 mm (Ø5.7" × 4.5") |
| Package Dimension | 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8") |
| Weight | Approx. 990 g (2.0 lb.) |
| With Package Weight | Approx. 1425 g (3.1 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | With -H: -40 °C to 60 °C (-40 °F to 140
°F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, one-key reset, mirror, password protection |
| Cable Length | 0.25 m (0.8 ft.) |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
| CC | Common Criteria, Assurance Level: EAL2 + ALC_FLR.2 |
| Other | PVC FREE |
