Hikvision iDS-7204HTHI-M1/PXT 4-ch 5MP 1U H.265 AcuSense POC DVR
Hikvision
- AcuSense Technology
- Power over Coax
- 3 year guarantee
The Hikvision iDS-7204HTHI-M1/PXT is a 4 Channel (up to 8 channel), 8-megapixel 4K Acusense Hybrid DVR that supports both Audio and Power over Caox (Read more)
PRODUCT DETAILS
The Hikvision IDS-7204HTHI-M1/PXT is a hybrid digital video recorder (DVR) with 4 analogue BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras up to 8 mega-pixel, and 4 IP cameras up to 8MP. The IDS-7204HTHI-M1/PXT can support 8 cameras in total when combining analogue and IP cameras. The IDS-7204HTHI-M1/PXT features intelligent AcuSense deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection). It also supports AoC (Audio over Coax) and PoC (Power over Coax) which reduces the number of cables required and speeds up installation time.

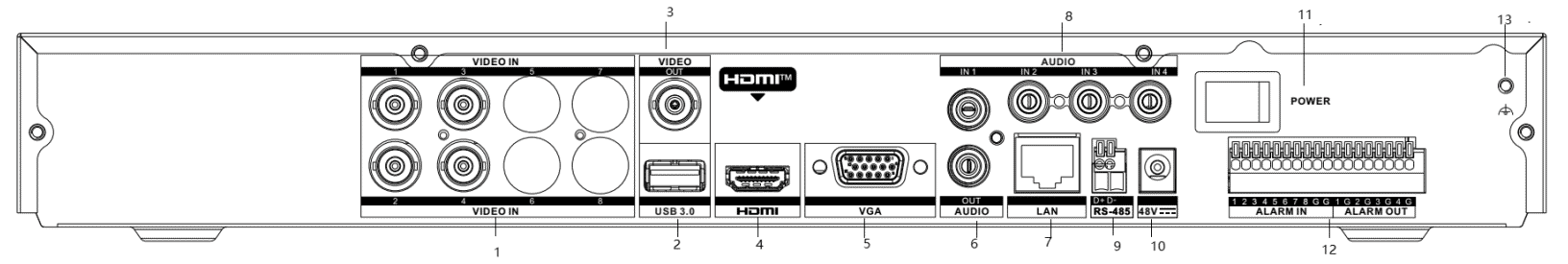

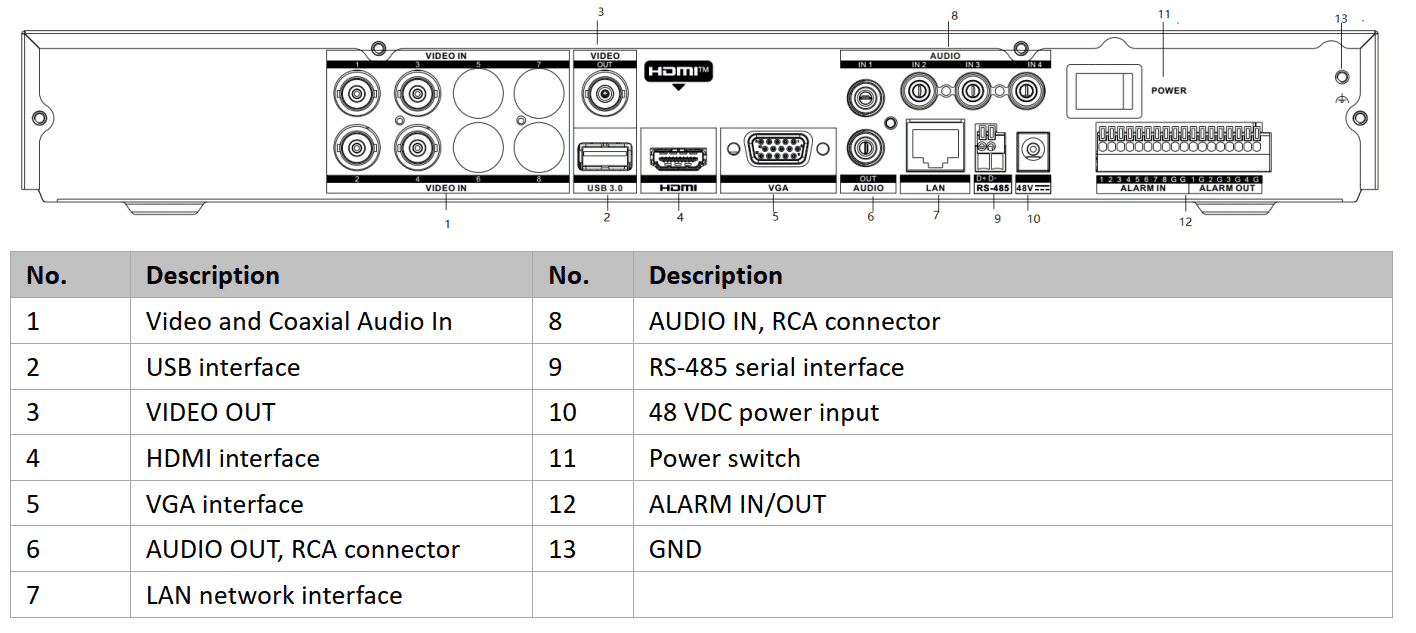

Interface
| No | Description |
|---|---|
| 1 | Video and Coaxial Audio In |
| 2 | USB interface |
| 3 | VIDEO OUT |
| 4 | HDMI interface |
| 5 | VGA interface |
| 6 | AUDIO OUT, RCA connector |
| 7 | LAN network interface |
| No | Description |
|---|---|
| 8 | AUDIO IN, RCA connector |
| 9 | RS-485 serial interface |
| 10 | 48 VDC power input |
| 11 | Power switch |
| 12 | ALARM IN/OUT |
| 13 | GND |
Features:
- Deep learning-based motion detection 2.0 for all analogue channels
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 8-ch IP camera inputs (up to 8 MP)
- Up to 10 TB capacity per HDD
- Provide power supply to PoC cameras over coaxial cable
- H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
- Recording at up to 8 MP resolution
- 1 SATA interfaces
- Smart search for efficient playback
- Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
- Support multiple VCA (Video Content Analytics) events for both analogue and smart IP cameras
- Compatible with major Wi-Fi dongle products in the market
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default
for all analogue channels, it can classify human and vehicle, and
extremely reduce false alarms caused by objects like leaves and
lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Line Crossing Detection/Intrusion Detection | Up to 4-ch |
| Video and Audio | |
| IP Video Input | 4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| PoC Camera Input | Support Hikvision PoC camera |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous playback | 4-ch |
| HDTVI Input | 8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input | 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDCVI Input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 16 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 96 Mbps |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm In/Out | 8/4 |
| General | |
| Power Supply | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| ≤ 3.4 kg (without HDD, 7.5 lb.) | |
